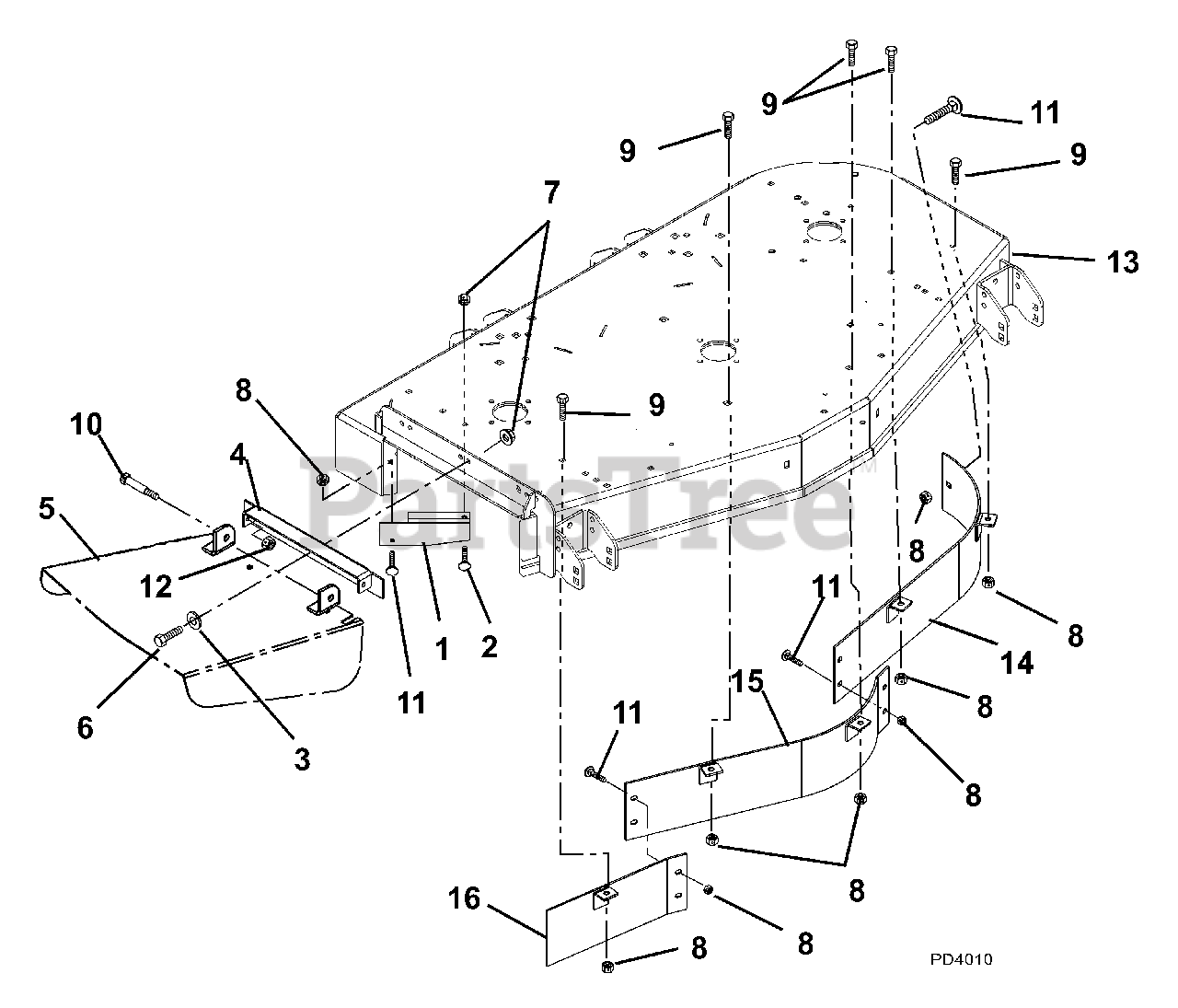

992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 04939851

DEFLECTOR - 44"/48"
(Superseded to 04939853)

$62.99

$

Usually ships in 4-12 days

0

2

Gravely 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 09286753

WMT, DISCHARGE CHUTE BRACKET

$160.99

$

Usually ships in 4-12 days

0

5

Gravely 00252953

WMT, DISCHARGE CHUTE 44-52

$200.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.99

$

In Stock, only 2 left!

0

11

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 04940253

WMT - 44" MOWER DECK - FLOAT
(Superseded to 59225300)

$934.99

$

Usually ships in 4-12 days

0

14

Gravely 04938951

BAFFLE - LEFT FRONT - 44"

$100.99

$

Usually ships in 4-12 days

0

15

Gravely 04939051

BAFFLE - CENTER FRONT - 44"

$166.99

$

Usually ships in 4-12 days

0

16

Gravely 04939151

BAFFLE - RIGHT FRONT - 44"

$108.99

$

Usually ships in 4-12 days

0
