992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Engine And Clutch Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

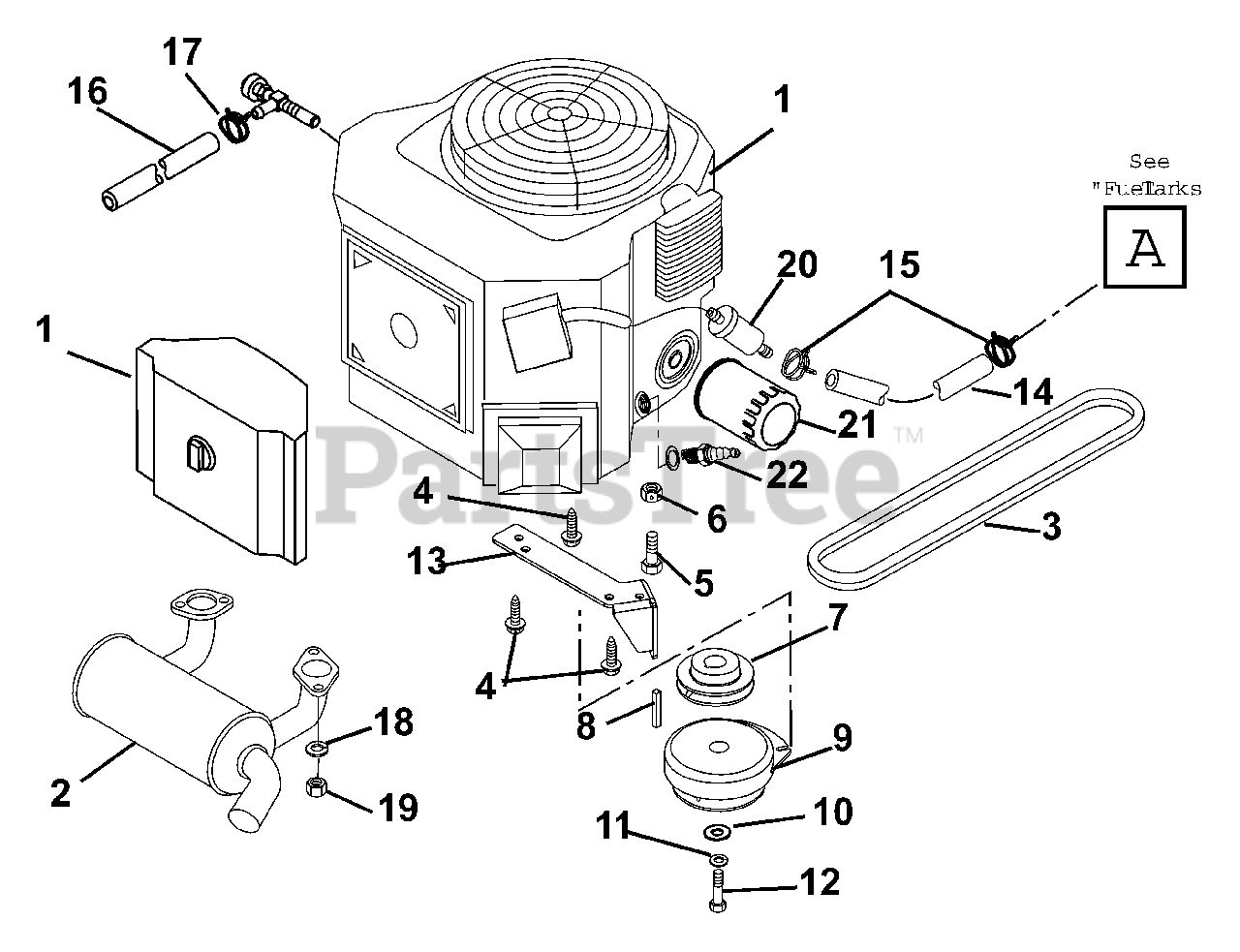

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200013

ENGINE, 15HP KAW FH451V

Note: (056)

$

$

Not available

Gravely 08200012

ENGINE, 17HP KAW FH500V-AS43-R

Note: (065)

$

$

Not available

2

Gravely 09298000

MUFFLER, KAW. (COMPACT-Z)

$272.99

$

Usually ships in 4-12 days

0

3

Gravely 07200010

V-BELT, HA-RAW EDGE

$38.99

$

In Stock, Qty 20+

0

4

Gravely 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$4.99

$

In Stock, Qty 18

0

5

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.49

$

In Stock, Qty 9

0

6

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 07328200

PLY-V 4.OO X 1.00

$85.99

$

In Stock, only 2 left!

0

8

Gravely 039160

KEY-SQ .25X.625X.25 SAE 8630
(Superseded to 06602700)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 00191700

CLUTCH,ELECTRIC PTO

$399.99

$

Usually ships in 4-12 days

0

10

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$8.49

$

In Stock, Qty 20+

0

11

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$3.49

$

In Stock, Qty 19

0

12

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$3.99

$

In Stock, Qty 7

0

13

Gravely 00367551

STOP, CLUTCH
(Superseded to 00395651)

$103.99

$

Usually ships in 4-12 days

0

14

Gravely 00365900

HOSE, 5.75"-1/4" ID GAS LINE

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$4.99

$

In Stock, Qty 20+

0

16

Gravely 00172900

HOSE, 1/2 X 6.00

$10.99

$

Usually ships in 4-12 days

0

17

Gravely 06923500

CLAMP,.88 DIA. HOSE

$2.99

$

In Stock, Qty 7

0

18

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

$12.99

$

In Stock, Qty 20+

0

21

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

22

Gravely 21536100

PLUG, SPARK

$10.99

$

In Stock, Qty 20+

0
