992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Engine And Clutch Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

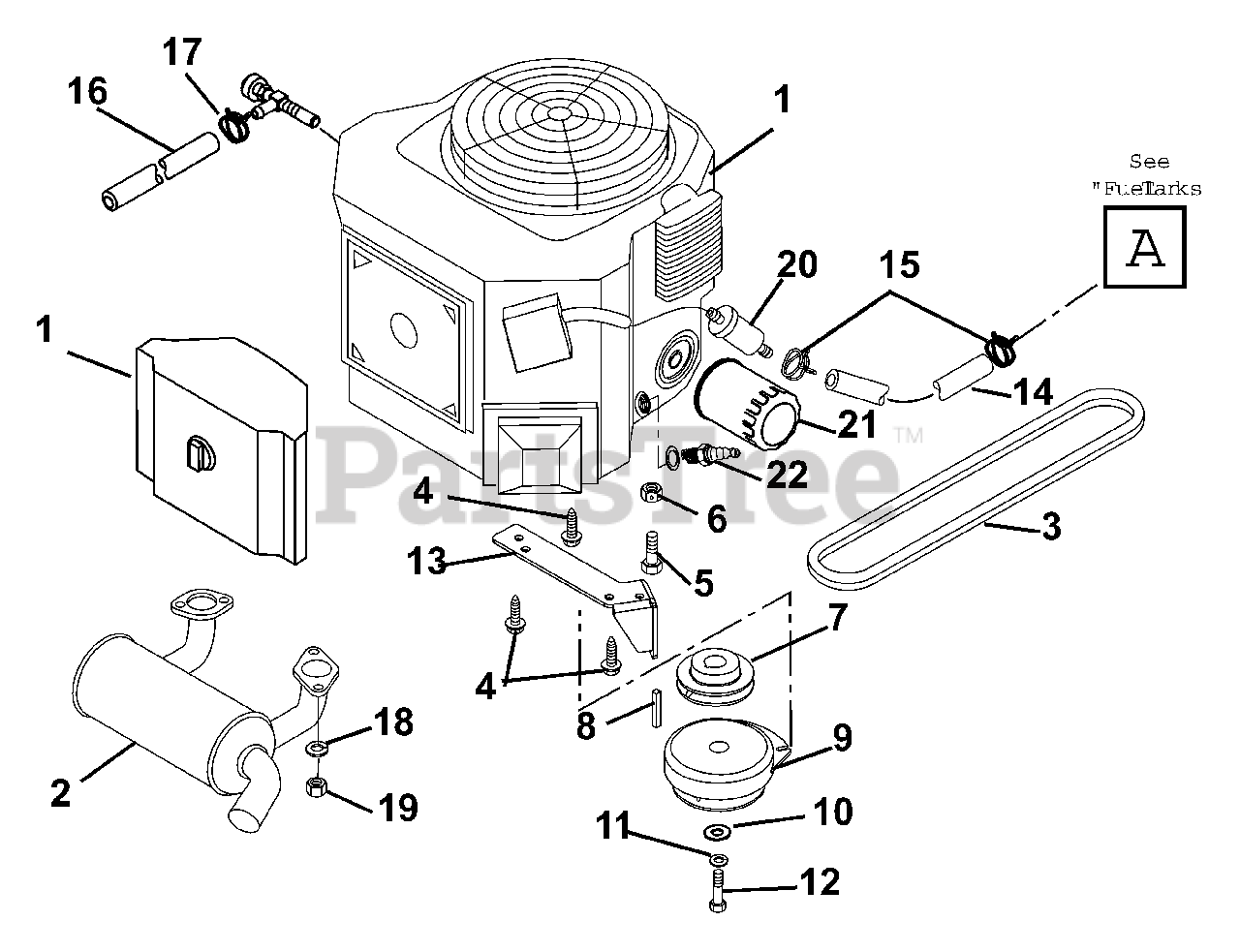

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200013

Engine, 15HP Kawasaki FH451V

Note: (056)

$

$

Not available

1

Gravely 08200012

Engine, 17HP Kawasaki FH500V

Note: (065)

$

$

Not available

2

Gravely 09298000

Muffler, Kawasaki

$260.99

$

Usually ships in 4-12 days

0

3

Gravely 07200010

V-Belt, 53.7 Inches

$37.99

$

In Stock, Qty 20+

0

4

Gravely 07414100

Screw, Tapping Hex Washer Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

6

Gravely 06545400

Nut, Locking Top Flange .31-18
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07328200

Pulley, V 4.00 x 1.00

$81.99

$

In Stock, only 2 left!

0

8

Gravely 039160

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035
(Superseded to 06602700)

$3.99

$

In Stock, Qty 10

0

9

Gravely 00191700

Clutch, Electric

$382.99

$

In Stock, only 2 left!

0

10

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .250
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

11

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 05964600

Bolt, Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

$2.99

$

In Stock, only 2 left!

0

13

Gravely 00367551

Clutch, Stop
(Superseded to 00395651)

$98.99

$

Usually ships in 4-12 days

0

14

Gravely 00365900

Hose, Gas Line 6.25"- .25" I.D.

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 7

0

16

Gravely 00172900

Hose, .50 x 6.00

$9.99

$

Usually ships in 4-12 days

0

17

Gravely 06923500

Clamp, .88 Diameter Hose

$2.49

$

In Stock, Qty 6

0

18

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

Note: (Included with item 1)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06538600

Nut, Hex M8-1.25

Note: (Included with item 1)

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 21410800

Fuel Filter, Kawasaki
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

21

Gravely 21535800

Oil Filter, Kawasaki
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

22

Gravely 21536100

Spark Plug, Kawasaki

$3.99

$

In Stock, Qty 20+

0
