992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

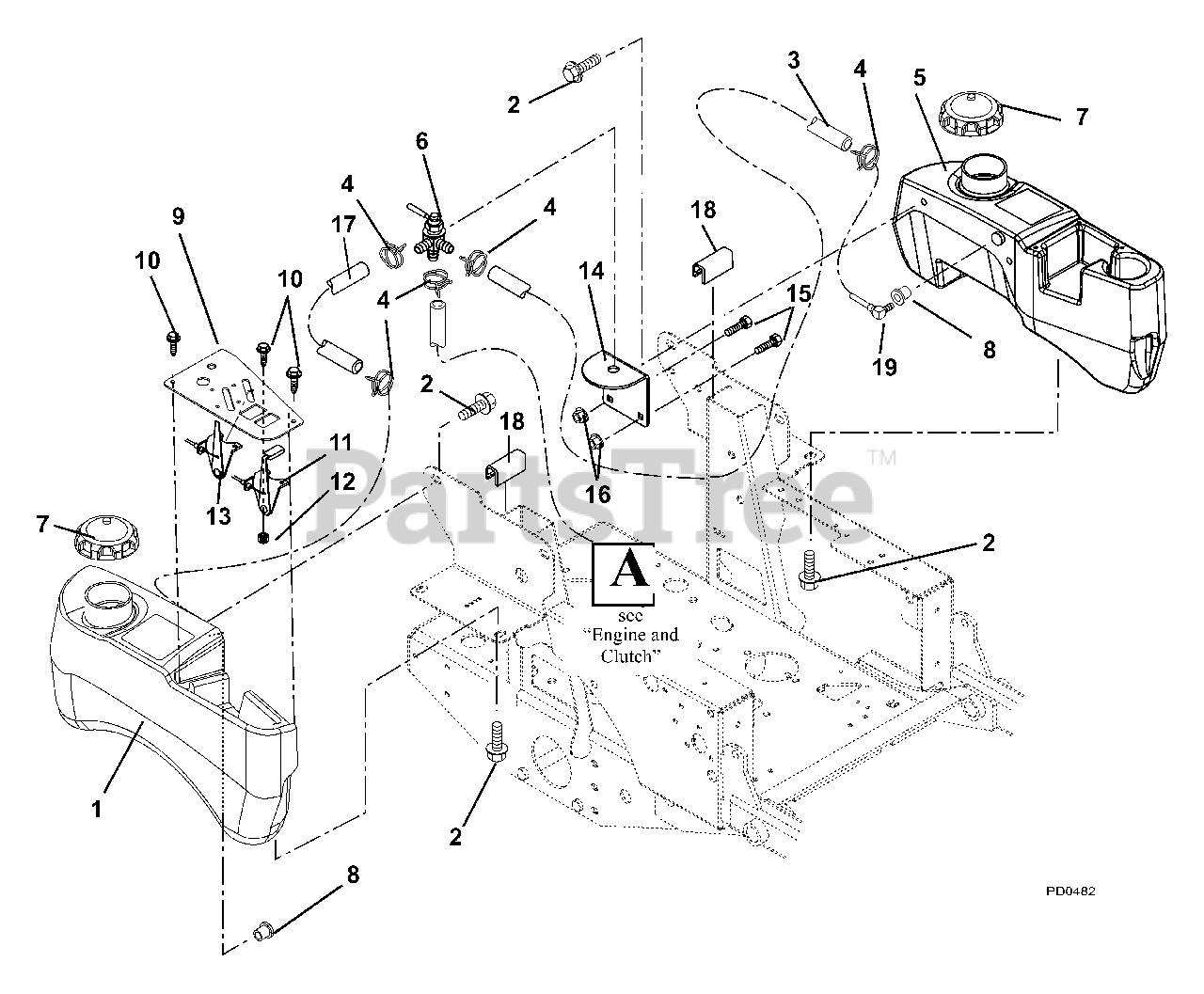

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09298200

TANK, FUEL RH W/O HOSE

$

$

Not available

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 00365900

HOSE, 5.75"-1/4" ID GAS LINE

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

5

Gravely 00262700

TANK, LH FUEL CZ W/O HOSE

Note: (Eye-Q)

$

$

Not available

6

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 17

0

7

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 19

0

8

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

Note: (Black color will not replace orange color)

$3.99

$

In Stock, Qty 20+

0

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange color will not replace black color)

$9.99

$

In Stock, Qty 20+

0

9

Gravely 00257351

PANEL, CONTROL

$27.99

$

Usually ships in 4-12 days

0

Gravely 09299551

PANEL, CONTROL

$

$

Not available

10

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06900002

CABLE, THROTTLE-CHOKE

$53.99

$

In Stock, only 4 left!

0

12

Gravely 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06949500

CABLE, CHOKE

$41.99

$

Usually ships in 4-12 days

0

Gravely 06900009

CABLE, CHOKE/THROTTLE

$

$

Not available

14

Gravely 00361951

BRKT, FUEL VALVE MNTG

$7.49

$

Usually ships in 4-12 days

0

15

Gravely 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 00366000

HOSE, 29"-1/4"ID GAS LINE

$

$

Not available

18

Gravely 049767

STRIP, COWL
(Superseded to 00918200)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 21539100

FITTING, TANK ELBOW .31 HOSE

Note: (DAPCO IND #12018 OR EQUIV)

$15.99

$

Usually ships in 4-12 days

0
