992065 (PM 44Z) - Gravely Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki (SN: 005000 & Above) Mechanical Lift Parts Diagram

Pro-Master 44" Zero-Turn Mower, 17hp Kawasaki

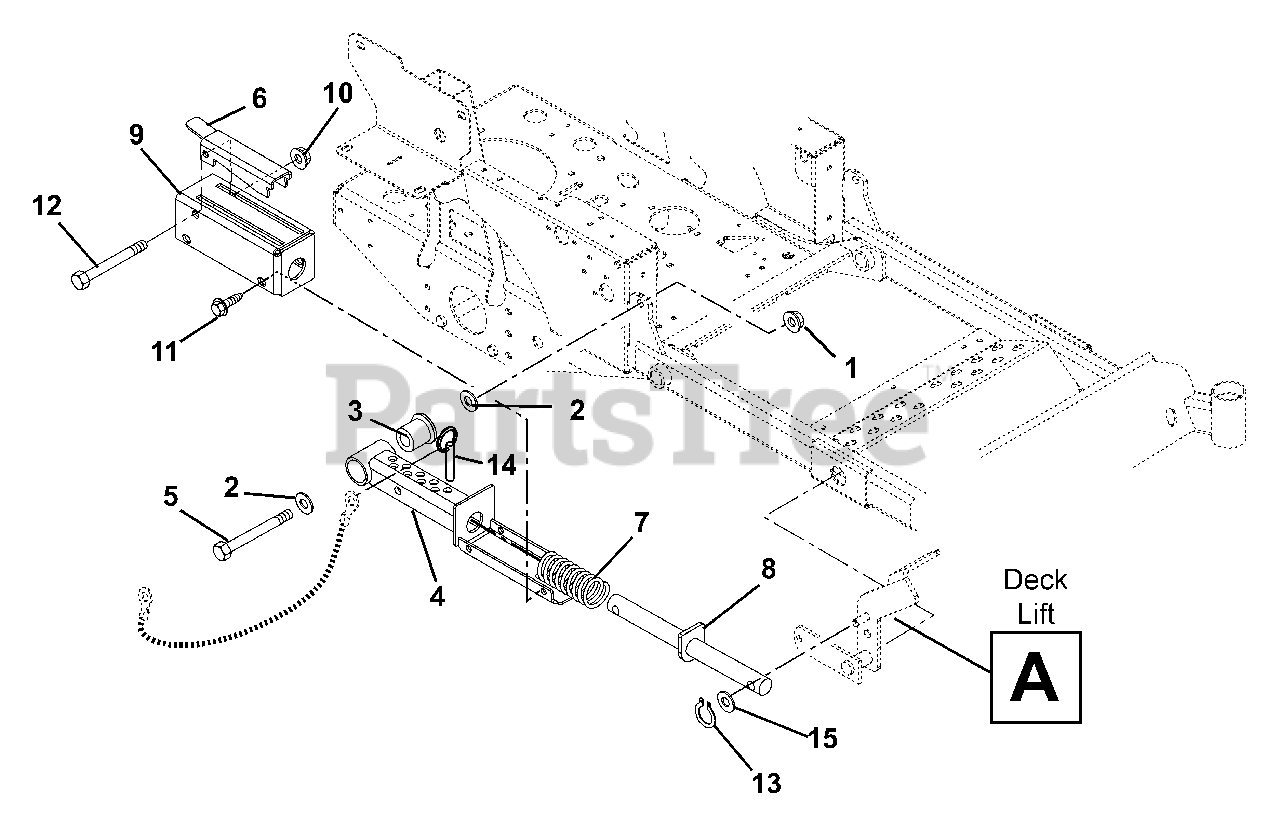

Mechanical Lift Parts Diagram

  • Title

1

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

2

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 07000031

BEARING, PEDESTAL

$88.99

$

In Stock, Qty 8

0

4

Gravely 09286251

WMT, MECHANICAL LIFT

$231.99

$

Usually ships in 4-12 days

0

5

Gravely 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.99

$

In Stock, only 1 left!

0

6

Gravely 09299651

LOCK-UP, MECH LIFT

$29.99

$

Usually ships in 4-12 days

0

7

Gravely 08338100

SPR-COMP 1.13X1.48X5.10 WD 165

Note: (056)

$26.99

$

Usually ships in 4-12 days

0

Gravely 08300004

SPRG-COMP 1.13X1.47X5.10 WD204

Note: (065)

$

$

Not available

8

Gravely 09299300

WMT, MECH LIFT SHAFT (.50)

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 09299451

WMT, MECH LIFT COVER

$47.99

$

Usually ships in 4-12 days

0

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$5.49

$

In Stock, Qty 12

0

13

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 14

0

14

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$6.99

$

In Stock, Qty 13

0

15

Gravely 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0
