992066 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000500 - 004000) Brakes Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

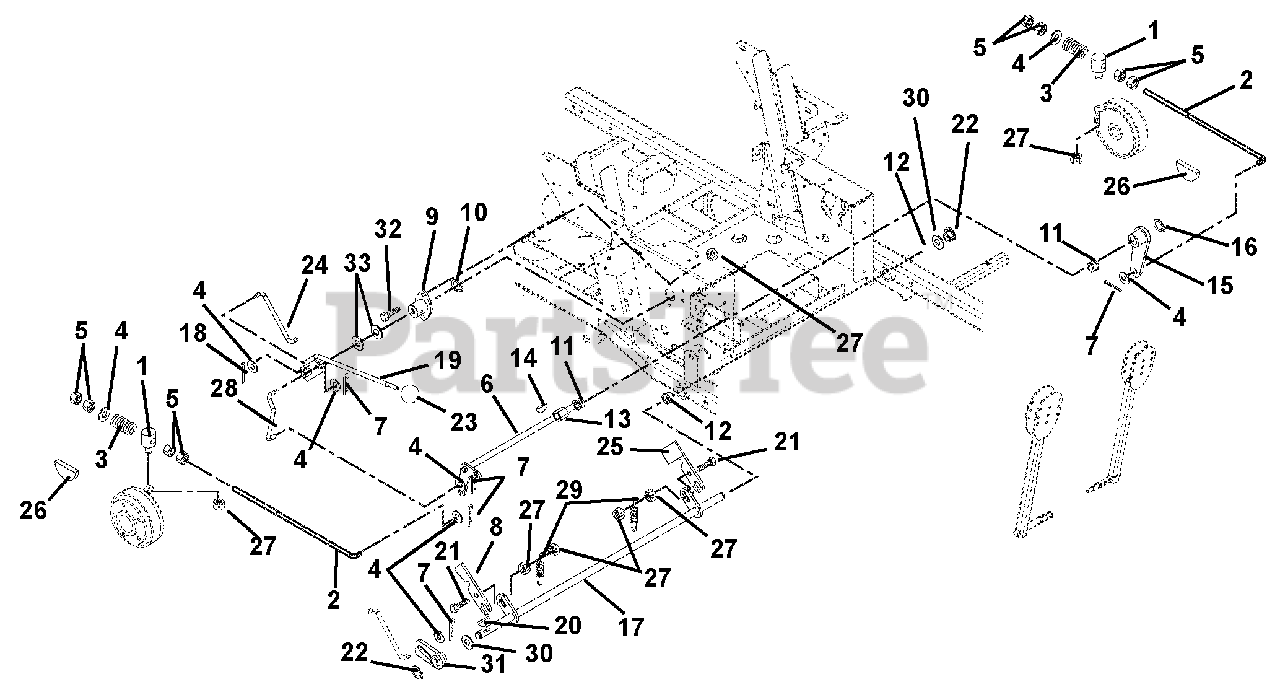

Brakes Parts Diagram

  • Title

1

Gravely 09267300

PIN, PIVOT/TRUNNION

$7.99

$

In Stock, only 2 left!

0

2

Gravely 09289300

ROD, BRAKE

$85.99

$

Usually ships in 4-12 days

0

3

Gravely 08328500

SG-COMP .142 X .710 X 2.00

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 00258800

WMT, BRAKE CROSS SHAFT

$120.99

$

Usually ships in 4-12 days

0

7

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09267700

SLIDE, INTERLOCKING BRAKE

$27.99

$

Usually ships in 4-12 days

0

9

Gravely 05534700

BUSHING, FLANGED
(Superseded to 05534100)

$50.99

$

In Stock, only 4 left!

0

10

Gravely 05709200

RG-RTNG-EXT .625X.050

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.99

$

In Stock, Qty 20+

0

12

Gravely 034738

BSHG-FLG .515X.750X.745X1.00NY
(Superseded to 05521100)

$3.49

$

In Stock, Qty 20+

0

13

Gravely 05500900

BSHG-SLV .750X1.000X.750

$10.99

$

In Stock, only 4 left!

0

14

Gravely 124549

KEY-WDRF .19X.75 HRD #9
(Superseded to 06608700)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00258600

WMT, BRAKE ARM

$82.99

$

Usually ships in 4-12 days

0

16

Gravely 05714600

RG-RTNG-EXT .689X.078

$3.49

$

In Stock, only 2 left!

0

17

Gravely 09268000

WMT, MECHANICAL BRAKE

$200.99

$

Usually ships in 4-12 days

0

18

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$1.49

$

In Stock, Qty 20+

0

19

Gravely 00277400

WMT, BRAKE ACTUATING

$91.99

$

Usually ships in 4-12 days

0

20

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$3.49

$

In Stock, only 1 left!

0

21

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

22

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 14

0

23

Gravely 039360

KNOB-STEERING LOCK
(Superseded to 07505200)

$23.99

$

In Stock, only 1 left!

0

24

Gravely 09268400

LINKAGE, BRAKE ACTUATING

$31.99

$

Usually ships in 4-12 days

0

25

Gravely 09275900

INTERLOCK, SAFETY SWITCH

$18.99

$

Usually ships in 4-12 days

0

26

Gravely 09200600

PAD SET, DISK BRAKE

$63.99

$

In Stock, only 4 left!

0

27

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 09268300

LINKAGE, BRAKE ACTUATING

$36.99

$

Usually ships in 4-12 days

0

29

Gravely 08314100

SG-TENS .063X.44X1.56

$6.99

$

In Stock, Qty 9

0

30

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 09268100

WMT, PARKING BRAKE HUB

$203.99

$

Usually ships in 4-12 days

0

32

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 06545100

NUT-PUSH .375
(Superseded to 00548400)

$2.49

$

Usually ships in 4-12 days

0
