992066 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000500 - 004000) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

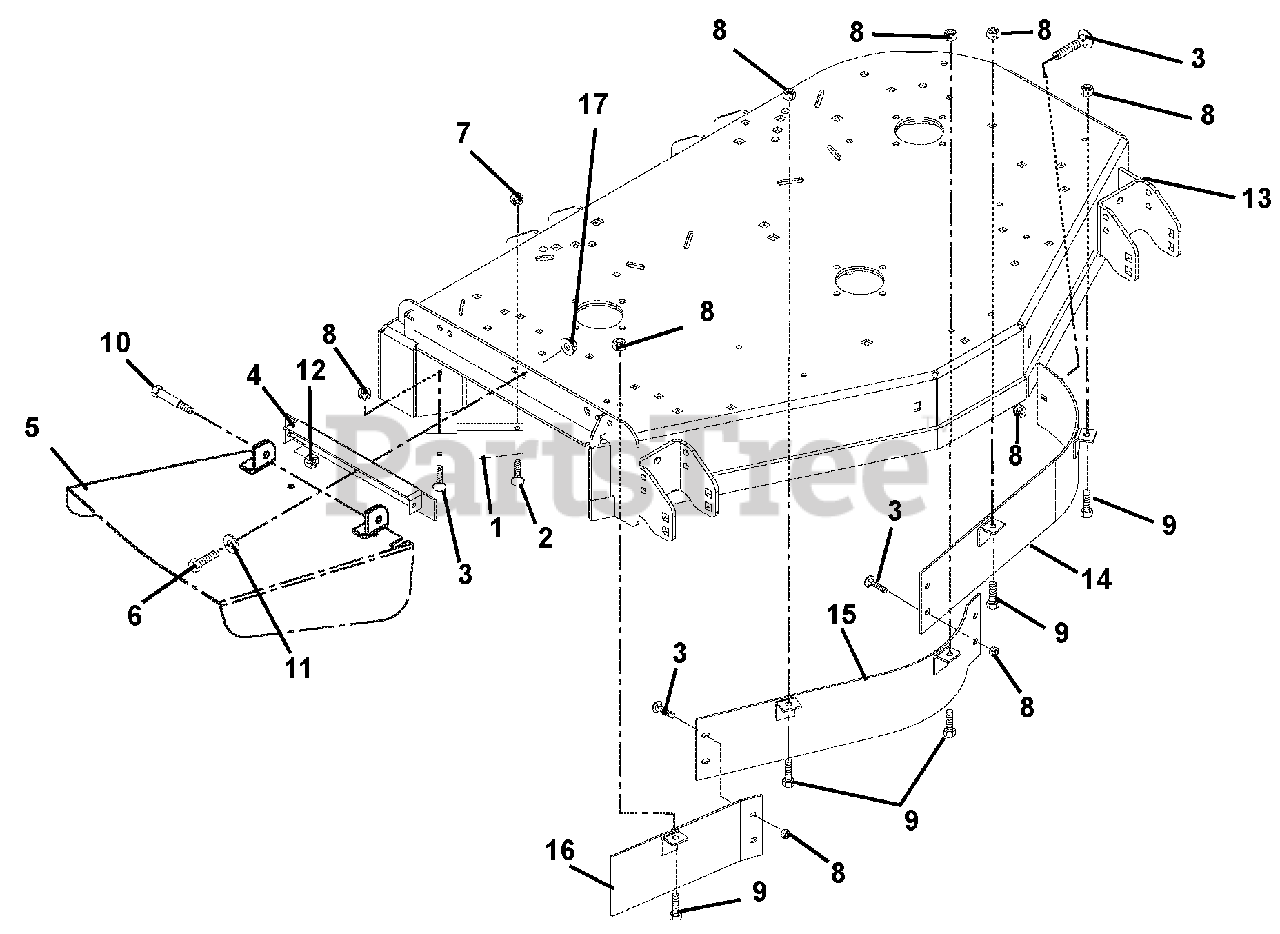

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 09096051

DEFLECTOR, 72"

Note: (070, 072)

$37.99

$

Usually ships in 4-12 days

0

Gravely 09238451

DEFLECTOR, 60" (BLACK)

Note: (067, 068, 069)

$29.99

$

In Stock, only 1 left!

0

Gravely 04921951

DEFLECTOR - 52"/34"
(Superseded to 04921953)

Note: (066, 071)

$32.99

$

Usually ships in 4-12 days

0

2

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 09286753

WMT, DISCHARGE CHUTE BRACKET

Note: (066, 071)

$160.99

$

Usually ships in 4-12 days

0

Gravely 00253253

WMT, CHUTE BRKT

Note: (067, 068, 069, 070, 072)

$96.99

$

Usually ships in 4-12 days

0

5

Gravely 00252953

WMT, DISCHARGE CHUTE 44-52

Note: (066, 071)

$200.99

$

Usually ships in 4-12 days

0

Gravely 00198253

WMT, 60" DISCHARGE CHUTE

Note: (067, 068, 069)

$244.99

$

Usually ships in 4-12 days

0

Gravely 09096953

WLDMT, DISCHARGE CHUTE 72"

Note: (070, 072)

$280.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

10

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.99

$

In Stock, only 2 left!

0

11

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (066, 071)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 09284453

WMT - 52" MOWER DECK
(Superseded to 59225400)

Note: (066, 071)

$1091.99

$

Usually ships in 4-12 days

0

Gravely 09288253

60" 7 GA MOWER DECK - RED
(Superseded to 59228200)

Note: (067, 068, 069)

$1874.99

$

Usually ships in 4-12 days

0

Gravely 09292953

72" 7GA DECK WMT - RED
(Superseded to 59004300)

Note: (070, 072)

$

$

Not available

14

Gravely 04921651

BAFFLE - LEFT FRONT - 52"
(Superseded to 04921653)

Note: (066, 071)

$60.99

$

Usually ships in 4-12 days

0

Gravely 09241651

BAFFLE - LEFT FRONT - 60"

Note: (067, 068, 069)

$117.99

$

In Stock, only 2 left!

0

Gravely 09096451

BAFFLE - LEFT FRONT - 72"

Note: (070, 072)

$100.99

$

Usually ships in 4-12 days

0

15

Gravely 04921751

BAFFLE - CENTER FRONT - 52"

Note: (066, 071)

$78.99

$

In Stock, only 2 left!

0

Gravely 09241751

BAFFLE - CENTER FRONT - 60"

Note: (067, 068, 069)

$107.99

$

In Stock, only 4 left!

0

Gravely 09096351

BAFFLE - CENTER FRONT - 72"

Note: (070, 072)

$96.99

$

Usually ships in 4-12 days

0

16

Gravely 04921851

BAFFLE - RIGHT FRONT - 52"
(Superseded to 04921853)

Note: (066, 071)

$43.99

$

In Stock, only 2 left!

0

Gravely 09241851

BAFFLE - RIGHT FRONT - 60"

Note: (067, 068, 069)

$60.99

$

In Stock, Qty 7

0

Gravely 09096551

BAFFLE - RIGHT FRONT - 72"

Note: (070, 072)

$93.99

$

Usually ships in 4-12 days

0

17

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$2.49

$

In Stock, Qty 20+

0
