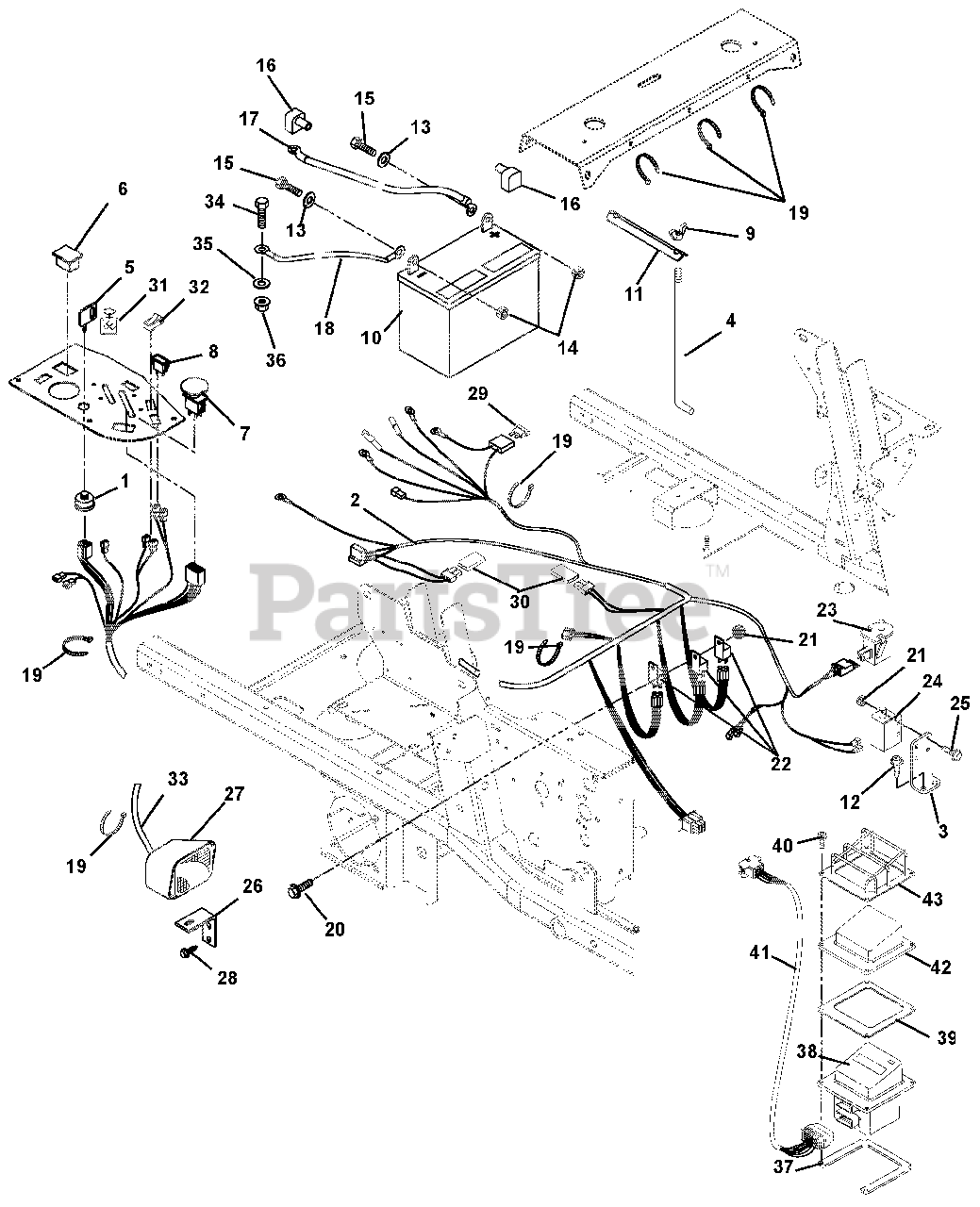

992066 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000500 - 004000) Electrical System Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$46.99

$

In Stock, Qty 20+

0

2

Gravely 00359400

HARNESS, IZ & MONST. EYE-Q
(Superseded to 00359401)

Note: (EYE-Q) (066, 067, 068, 070, 071, 072)

$413.99

$

Usually ships in 4-12 days

0

Gravely 00360400

HARNESS, EFI WIRING
(Superseded to 00360401)

Note: (EYE-Q) (069)

$377.99

$

In Stock, only 1 left!

0

3

Gravely 09275851

MOUNT, SAFETY SWITCH

$23.99

$

Usually ships in 4-12 days

0

4

Gravely 09291900

ROD,BATTERY HOLDDOWN

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 09287000

KEY, W/ SHIELD

$10.99

$

In Stock, Qty 20+

0

Gravely 21510400

IGNITION KEY SET

$11.99

$

In Stock, only 1 left!

0

6

Gravely 00539300

PLUG, HOUR METER

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

SWITCH, CLUTCH

$28.99

$

In Stock, Qty 20+

0

8

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (066, 067, 068, 070, 071, 072)

$8.49

$

In Stock, Qty 7

0

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (069)

$8.49

$

In Stock, Qty 7

0

9

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$6.49

$

In Stock, Qty 20+

0

10

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

11

Gravely 03494000

HOLD DOWN
(Superseded to 03494051)

$12.99

$

In Stock, only 1 left!

0

12

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$24.99

$

In Stock, only 2 left!

0

18

Gravely 02518900

GROUND CABLE .25X13.00X.31
(Superseded to 03287100)

$18.99

$

In Stock, only 4 left!

0

19

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$27.99

$

In Stock, Qty 20+

0

23

Gravely 02754100

SWITCH- SNAP MTG N.O.

$10.99

$

In Stock, Qty 19

0

24

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$10.99

$

In Stock, Qty 13

0

25

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, Qty 5

0

26

Gravely 09287551

BRACKET, HEADLIGHT MTG

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 02463600

HEADLIGHT

$89.99

$

Usually ships in 4-12 days

0

28

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

30

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$14.99

$

In Stock, Qty 20+

0

31

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

32

Gravely 08973300

SWITCH, 2 POLE/ROCKER

$7.99

$

In Stock, Qty 5

0

33

Gravely 09279200

HARNESS, HEADLIGHT KIT
(Superseded to 03288300)

$72.99

$

Usually ships in 4-12 days

0

34

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 00252251

SPACER, ENCLOSURE MTG. (BTM)

Note: (Bottom)

$27.99

$

Usually ships in 4-12 days

0

38

Gravely 00251600

ASSY, EYE-Q

$

$

Not available

39

Gravely 05600006

GASKET-EYE Q

$

$

Not available

40

Gravely 06100002

SCR-MCH 10-24X1.0 SL PAN BLACK

$4.99

$

Usually ships in 4-12 days

0

41

Gravely 00288900

HARNESS, EYE-Q
(Superseded to 03286100)

$

$

Not available

42

Gravely 00353900

GUARD, ELEMENT

$

$

Not available

43

Gravely 00270300

GUARD, VINYL EYE-Q
(Superseded to 00266251)

$

$

Not available
