992066 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000500 - 004000) Hood And Bumper Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

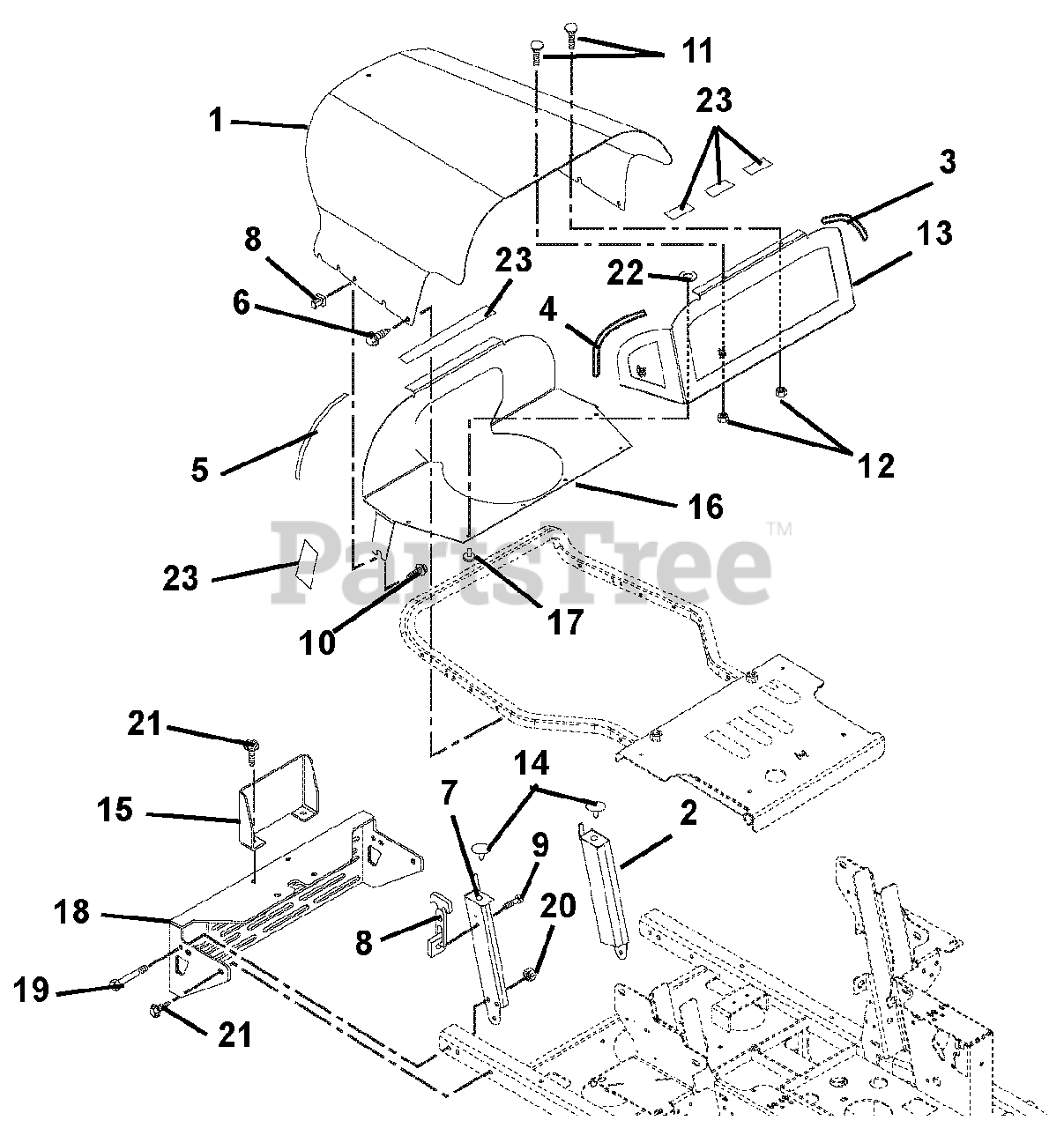

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09257753

HOOD

$

$

Not available

2

Gravely 09275153

WMT, HOOD SUPPORT -LH

$144.99

$

Usually ships in 4-12 days

0

3

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.99

$

In Stock, Qty 6

0

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.99

$

In Stock, Qty 6

0

4

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.99

$

In Stock, Qty 6

0

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.99

$

In Stock, Qty 6

0

5

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (069)

$1.99

$

In Stock, Qty 6

0

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

Note: (069)

$1.99

$

In Stock, Qty 6

0

6

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 09227953

WLDMT, HOOD SUPPORT RH

$109.99

$

Usually ships in 4-12 days

0

8

Gravely 09079500

LATCH, RUBBER

$18.99

$

In Stock, Qty 14

0

9

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 09257951

WLDMT, PLENUM

$

$

Not available

14

Gravely 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 10

0

15

Gravely 09229951

GUARD, ENGINE

$68.99

$

Usually ships in 4-12 days

0

16

Gravely 09293851

PLENUM SUPPORT - BLACK

$113.99

$

Usually ships in 4-12 days

0

17

Gravely 06817000

RVT-POP .18 X .402 SBS64L

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 09258151

WLDMT, BUMPER
(Superseded to 09293451)

$280.99

$

Usually ships in 4-12 days

0

19

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$5.49

$

In Stock, Qty 20+

0

20

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06442700

WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$1.99

$

Usually ships in 4-12 days

0

23

Gravely 00932300

VHB TAPE 4941F

$4.99

$

Usually ships in 4-12 days

0
