992066 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000500 - 004000) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

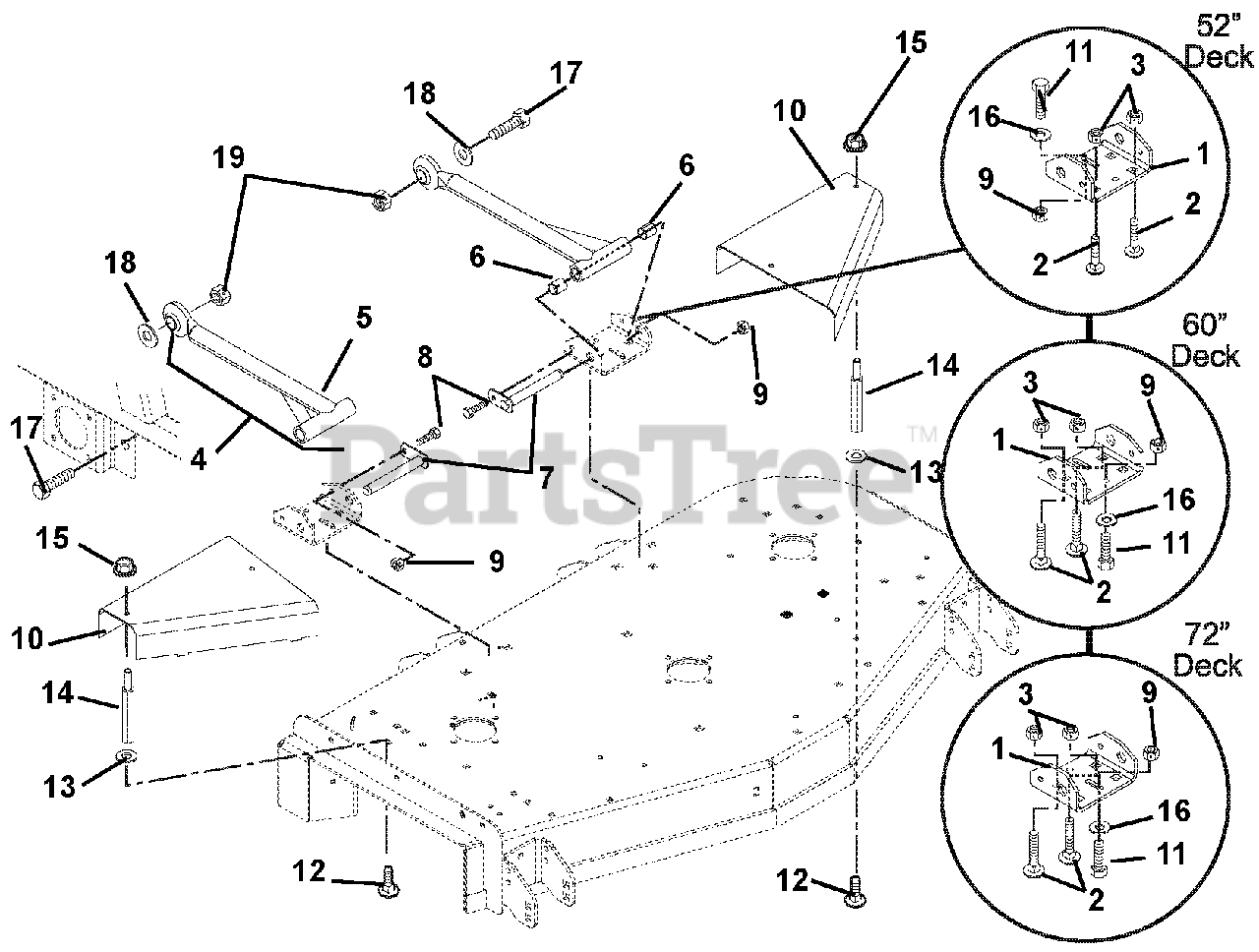

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

BRACKET, MOWER MOUNT (REAR)

Note: (Rear)

$36.99

$

Usually ships in 4-12 days

0

2

Gravely 06224600

BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

$5.49

$

Usually ships in 4-12 days

0

3

Gravely 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 09247800

ASSEMBLY, MOWER MOUNTING ARM

Note: (Includes Items 5 and 6)

$288.99

$

Usually ships in 4-12 days

0

5

Gravely 09247951

WMT, MOWER MTG ARM - BLACK

$272.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

BRG, .750 X .875 X 1.000

$7.49

$

In Stock, Qty 20+

0

7

Gravely 09238900

WELDMENT, MOWER MTG. PIN

$66.99

$

In Stock, Qty 8

0

8

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 11

0

9

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 09246353

GUARD, PULLEY RH

Note: (066, 071)

$72.99

$

In Stock, only 1 left!

0

Gravely 09246253

GUARD, PULLEY LH

Note: (066, 071)

$55.99

$

In Stock, only 2 left!

0

Gravely 09240853

GUARD, PULLEY LH
(Superseded to 09240851)

Note: (067, 068, 069)

$67.99

$

Usually ships in 4-12 days

0

Gravely 09240753

GUARD, PULLEY RH
(Superseded to 09240751)

Note: (067, 068, 069)

$50.99

$

Usually ships in 4-12 days

0

Gravely 09252553

GUARD, R.H. PULLEY

Note: (070, 072)

$100.99

$

Usually ships in 4-12 days

0

Gravely 09252453

GUARD, L.H. PULLEY

Note: (070, 072)

$109.99

$

In Stock, only 1 left!

0

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

12

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$5.49

$

In Stock, Qty 20+

0

13

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.99

$

In Stock, Qty 19

0

14

Gravely 00271200

STANDOFF, 2.75 X 5/16-18

$37.99

$

In Stock, Qty 7

0

15

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05969500

BLT-HEX .875-9X2.75 GR5 YWZC

$9.49

$

In Stock, Qty 11

0

18

Gravely 06444700

WSHR-FL-STL .890X1.500X.1196YZ
(Superseded to 06401207)

$5.49

$

In Stock, Qty 6

0

19

Gravely 06539700

NUT-LK-CTR .875-9 YWZC

$6.99

$

In Stock, only 2 left!

0
