992066 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000500 - 004000) Rollers Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

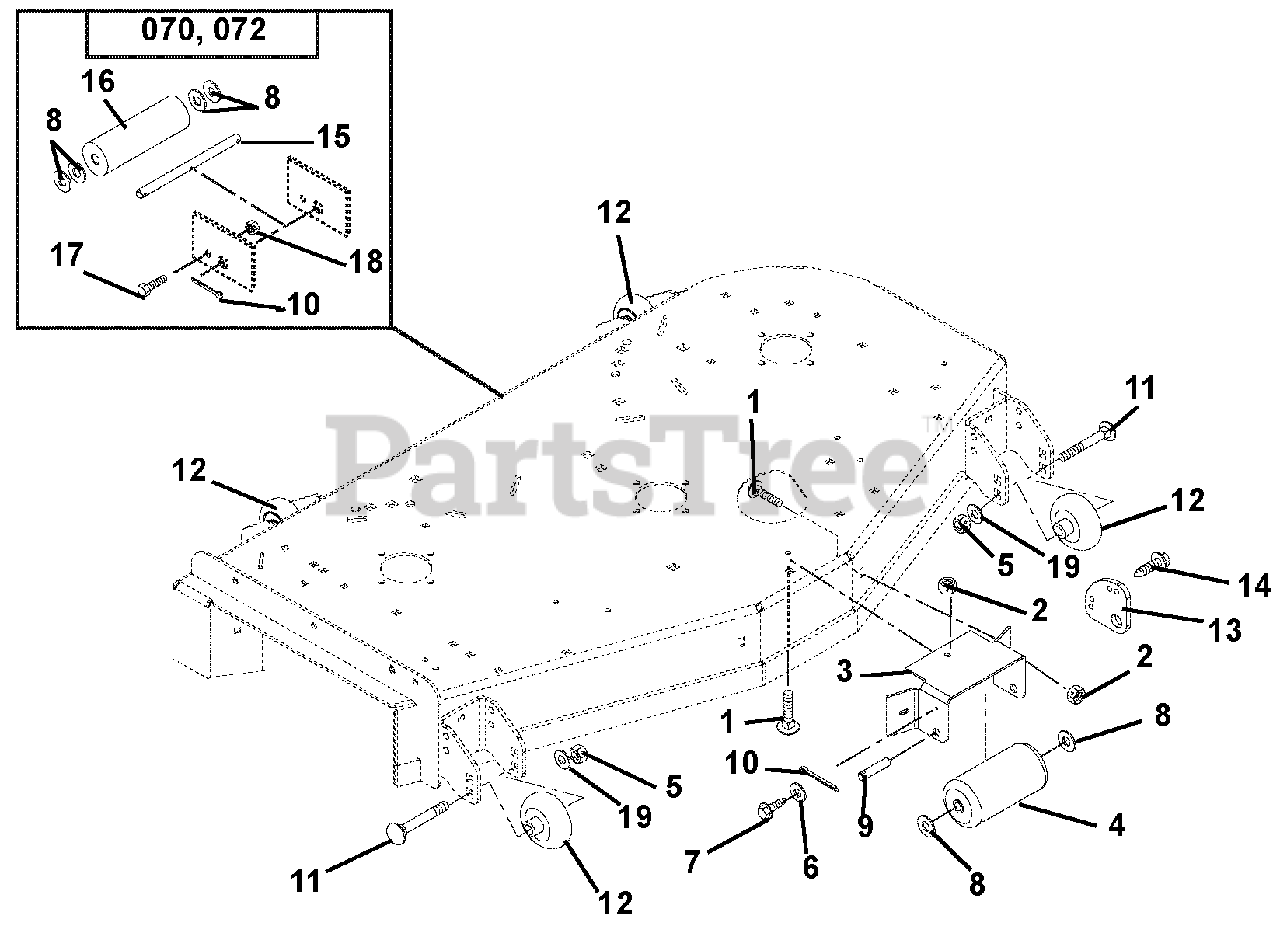

Rollers Parts Diagram

  • Title

1

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$3.49

$

In Stock, Qty 20+

0

2

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 04920853

BRACKET - ANTI-SCALP ROLLER

$133.99

$

Usually ships in 4-12 days

0

4

Gravely 09078100

ROLLER

$51.99

$

In Stock, only 3 left!

0

5

Gravely 06540600

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

Note: (066, 067 , 068, 069, 071)

$3.49

$

In Stock, Qty 20+

0

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

Note: (070, 072)

$3.49

$

In Stock, Qty 20+

0

9

Gravely 09288400

PIN, 9.41 X .625

$59.99

$

In Stock, only 1 left!

0

10

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

Note: (066, 067 , 068, 069, 072)

$5.49

$

In Stock, only 1 left!

0

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

Note: (070, 072)

$5.49

$

In Stock, only 1 left!

0

11

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

12

Gravely 09253700

WHEEL, 3X5

$15.99

$

In Stock, Qty 20+

0

13

Gravely 09290353

ANTI-SCALP WASHER - RED

$13.99

$

Usually ships in 4-12 days

0

14

Gravely 07401900

SCR-TAP.250-20X.62 HWH BLK ZC
(Superseded to 07410400)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

Note: (070, 072)

$63.99

$

Usually ships in 4-12 days

0

16

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

Note: (070, 072)

$39.99

$

In Stock, only 3 left!

0

17

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (070, 072)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (070, 072)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0
