992067 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki (SN: 004001 - 004500) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki

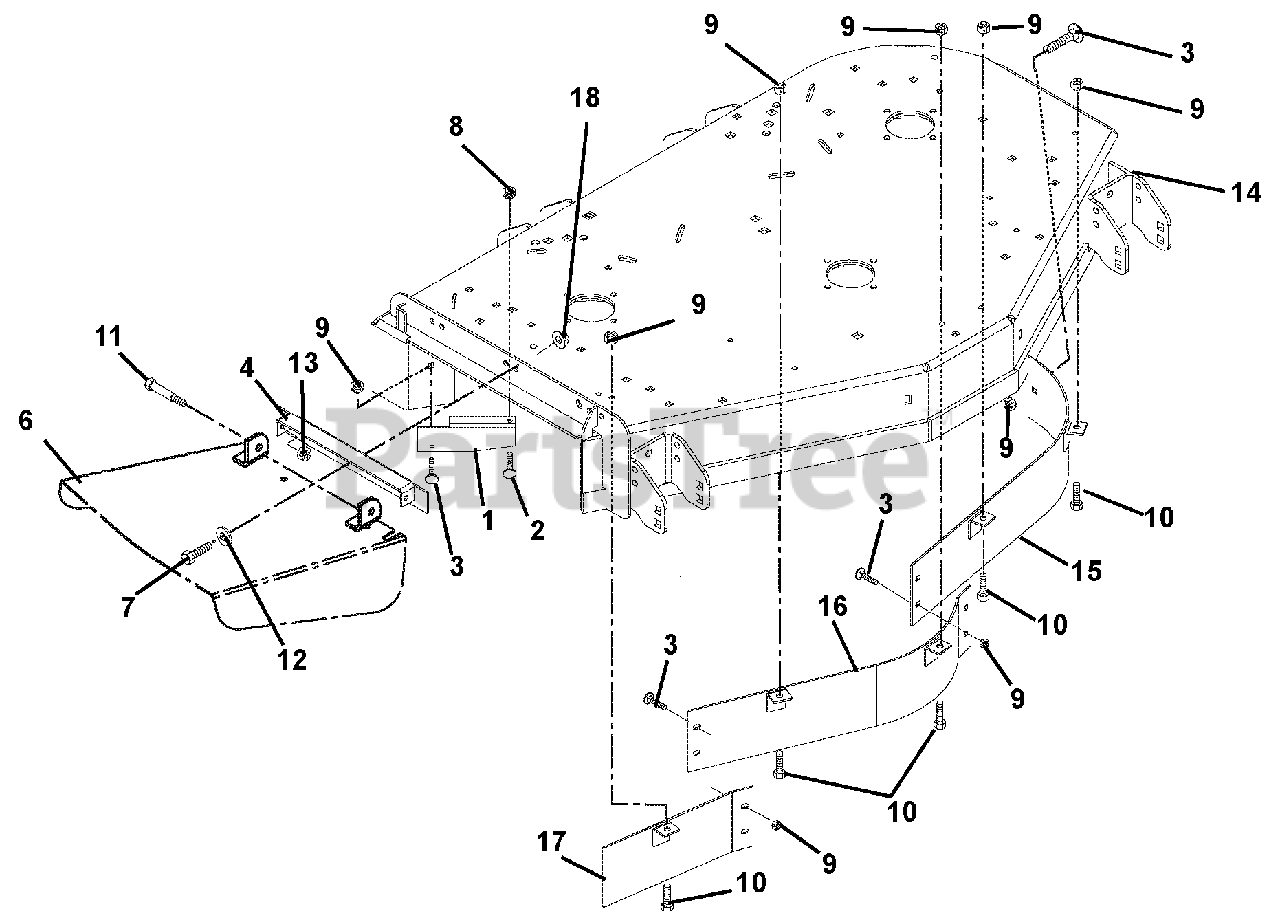

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 09096051

DEFLECTOR, 72"

Note: (086, 091, 107)

$35.99

$

Usually ships in 4-12 days

0

Gravely 09238451

DEFLECTOR, 60" (BLACK)

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$28.99

$

In Stock, only 2 left!

0

Gravely 04921951

DEFLECTOR - 52"/34"
(Superseded to 04921953)

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$30.99

$

Usually ships in 4-12 days

0

2

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

3

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 09286753

WMT, DISCHARGE CHUTE BRACKET

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$153.99

$

Usually ships in 4-12 days

0

5

Gravely 00253253

WMT, CHUTE BRKT

Note: (046, 047, 067, 068, 085, 086, 088, 089, 091, 105, 106, 107)

$92.99

$

Usually ships in 4-12 days

0

6

Gravely 00252953

WMT, DISCHARGE CHUTE 44-52

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$191.99

$

Usually ships in 4-12 days

0

Gravely 00198253

WMT, 60" DISCHARGE CHUTE

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$233.99

$

Usually ships in 4-12 days

0

Gravely 09096953

WLDMT, DISCHARGE CHUTE 72"

Note: (086, 091, 107)

$268.99

$

Usually ships in 4-12 days

0

7

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

12

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 09284453

WMT - 52" MOWER DECK
(Superseded to 59225400)

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$921.99

$

Usually ships in 4-12 days

0

Gravely 09288253

60" 7 GA MOWER DECK - RED
(Superseded to 59228200)

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$1793.99

$

Usually ships in 4-12 days

0

Gravely 09292953

72" 7GA DECK WMT - RED
(Superseded to 59004300)

Note: (086, 091, 107)

$

$

Not available

15

Gravely 04921651

BAFFLE - LEFT FRONT - 52"
(Superseded to 04921653)

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$58.99

$

In Stock, only 2 left!

0

Gravely 09241651

BAFFLE - LEFT FRONT - 60"

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$112.99

$

In Stock, only 2 left!

0

Gravely 09096451

BAFFLE - LEFT FRONT - 72"

Note: (086, 091, 107)

$96.99

$

Usually ships in 4-12 days

0

16

Gravely 04921751

BAFFLE - CENTER FRONT - 52"

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$75.99

$

Usually ships in 4-12 days

0

Gravely 09241751

BAFFLE - CENTER FRONT - 60"

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$102.99

$

In Stock, Qty 5

0

Gravely 09096351

BAFFLE - CENTER FRONT - 72"

Note: (086, 091, 107)

$92.99

$

Usually ships in 4-12 days

0

17

Gravely 04921851

BAFFLE - RIGHT FRONT - 52"
(Superseded to 04921853)

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$40.99

$

Usually ships in 4-12 days

0

Gravely 09241851

BAFFLE - RIGHT FRONT - 60"

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$58.99

$

In Stock, Qty 8

0

Gravely 09096551

BAFFLE - RIGHT FRONT - 72"

Note: (086, 091, 107)

$89.99

$

Usually ships in 4-12 days

0

18

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

Gravely 78803900

KIT, BAHIA BAFFLE 52"

Note: (Not Shown)

$

$

Not available

Gravely 79201600

KIT, BAHIA BAFFLE 60"

Note: (Not Shown)

$

$

Not available

Gravely 79202000

KIT, BAHIA BAFFLE 72"

Note: (Not Shown)

$

$

Not available
