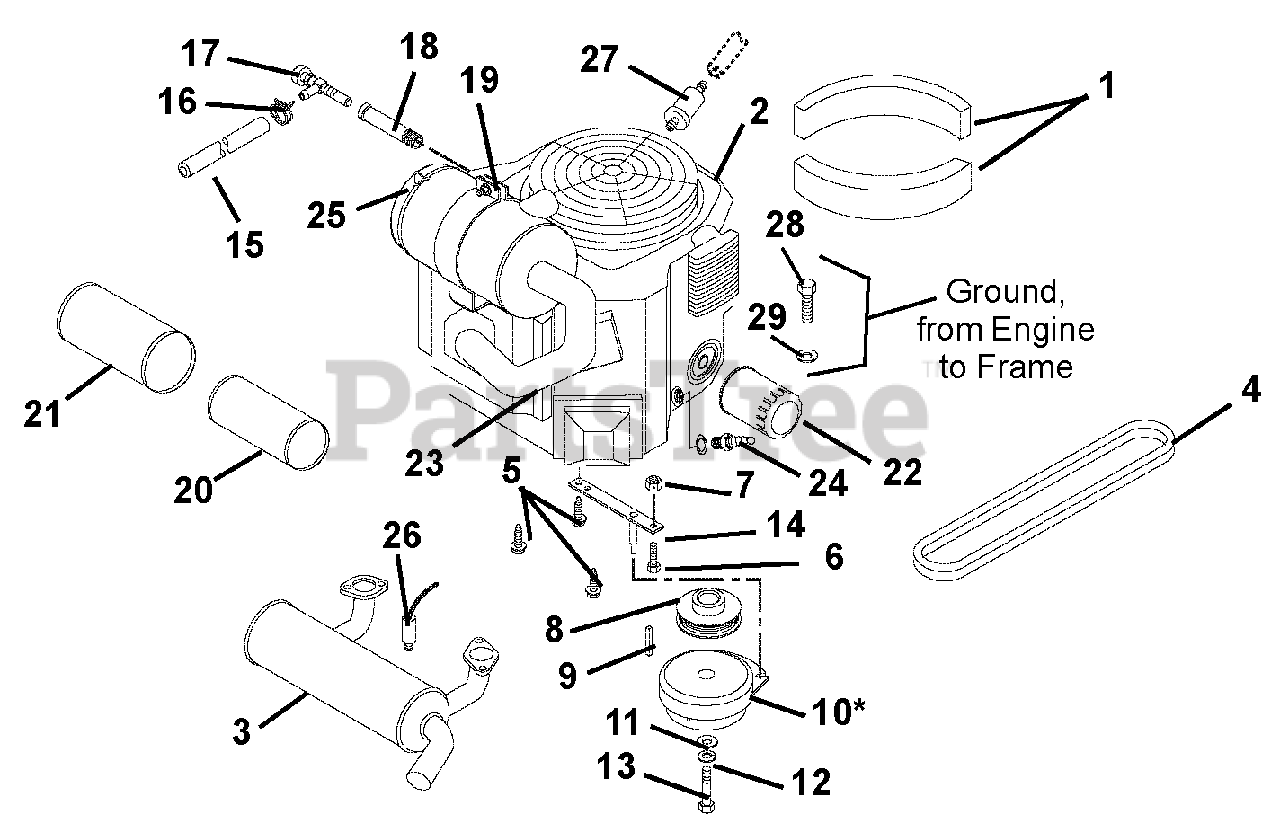

992067 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki (SN: 004001 - 004500) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 09293900

SEAL, FOAM

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$

$

Not available

2

Gravely 08268200

ENGINE, KOHLER 28HP EFI

Note: (091, 107)

$

$

Not available

Gravely 08268100

ENGINE, KOHLER 27HP

Note: (047, 052, 068, 071, 087, 089)

$

$

Not available

Gravely 08268300

ENGINE, KAWASAKI 25HP

Note: (045, 046, 066, 067, 088, 102)

$

$

Not available

Gravely 08200029

ENGINE, 26HP GAS KAW VERT. L/C

Note: (084, 085, 086, 103, 104, 105, 106, 108)

$

$

Not available

3

Gravely 09257300

MUFFLER, KOHLER EFI

Note: (091, 107)

$706.99

$

Usually ships in 4-12 days

0

Gravely 09294800

MUFFLER, KOHLER
(Superseded to 00470400)

Note: (047, 052, 071, 087, 089)

$218.99

$

In Stock, only 2 left!

0

Gravely 09281600

MUFFLER, KAW (INTERMEDIATE-Z)

Note: (045, 046, 066, 067, 070, 088, 102)

$298.99

$

Usually ships in 4-12 days

0

Gravely 00297100

MUFFLER,LIQUID COOLED VERT.

Note: (084, 085, 086, 103, 104, 105, 106, 108)

$

$

Not available

4

Gravely 07242000

POLY V-BELT, K-5 RIBS

$54.99

$

In Stock, Qty 18

0

5

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

091, 102, 107)

Note: 091, 102, 107)

$

$

Not available

Gravely 07400004

SCR-TAP M8X1.25X1.00"HWH TRYZ

$

$

Not available

6

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (045, 046, 047, 052, 066, 067, 068, 071, 087, 088, 089, 091, 102, 107)

$3.49

$

In Stock, Qty 10

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07327000

SHEAVE, POLY V 1.127 X 3.25
(Superseded to 07300041)

$95.99

$

In Stock, Qty 5

0

9

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

10

Gravely 09266700

CLUTCH, ELECTRIC (WARNER)
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

11

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

14

Gravely 04907200

ANCHOR-CLUTCH

$75.99

$

In Stock, only 3 left!

0

15

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

104, 105, 106, 108)

Note: 104, 105, 106, 108)

$

$

Not available

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (091, 107)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

17

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

18

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$89.99

$

Usually ships in 4-12 days

0

20

Gravely 21536900

ELEMENT, INNER SAFETY

$29.99

$

In Stock, Qty 11

0

21

Gravely 21537000

ELEMENT, OUTER PRIMARY

$37.99

$

In Stock, Qty 20+

0

22

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (047, 052, 068, 071, 087, 089, 091, 107)

$21.99

$

Usually ships in 4-12 days

0

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (045, 046, 084, 085, 086, 088, 102, 103, 104, 105, 106, 108)

$18.99

$

Usually ships in 2-5 days

0

23

Gravely 21536800

HOSE, AIR INTAKE

Note: (047, 052, 068, 071, 087, 089, 091, 107)

$26.99

$

In Stock, only 1 left!

0

24

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

Note: (047, 052, 068, 071, 087, 089, 091, 107)

$7.49

$

In Stock, Qty 20+

0

Gravely 21536100

PLUG, SPARK

Note: (045, 046, 066, 067, 088, 102)

$10.99

$

In Stock, Qty 20+

0

Gravely 21538500

PLUG, SPARK

Note: (084, 085, 086, 103, 104, 105, 106, 108)

$6.49

$

In Stock, Qty 20+

0

25

Gravely 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

26

Gravely 21537100

SENSOR, OXYGEN

Note: (091, 107)

$

$

Not available

27

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

Note: (045, 046, 066, 067, 088, 102)

$13.99

$

In Stock, Qty 20+

0

Gravely 21539500

FILTER, FUEL

Note: (047, 052, 068, 071, 087, 089, 091, 107)

$18.99

$

In Stock, Qty 20+

0

Gravely 21538900

FILTER, FUEL

Note: (084, 085, 086, 103, 104, 105, 106, 108)

$120.99

$

In Stock, Qty 6

0

28

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

Gravely 59205200

KIT,BRAKE POLE MODULE REPLACE

Note: (Not Shown)

$

$

Not available
