992068 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 004501 & Above) Controls Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

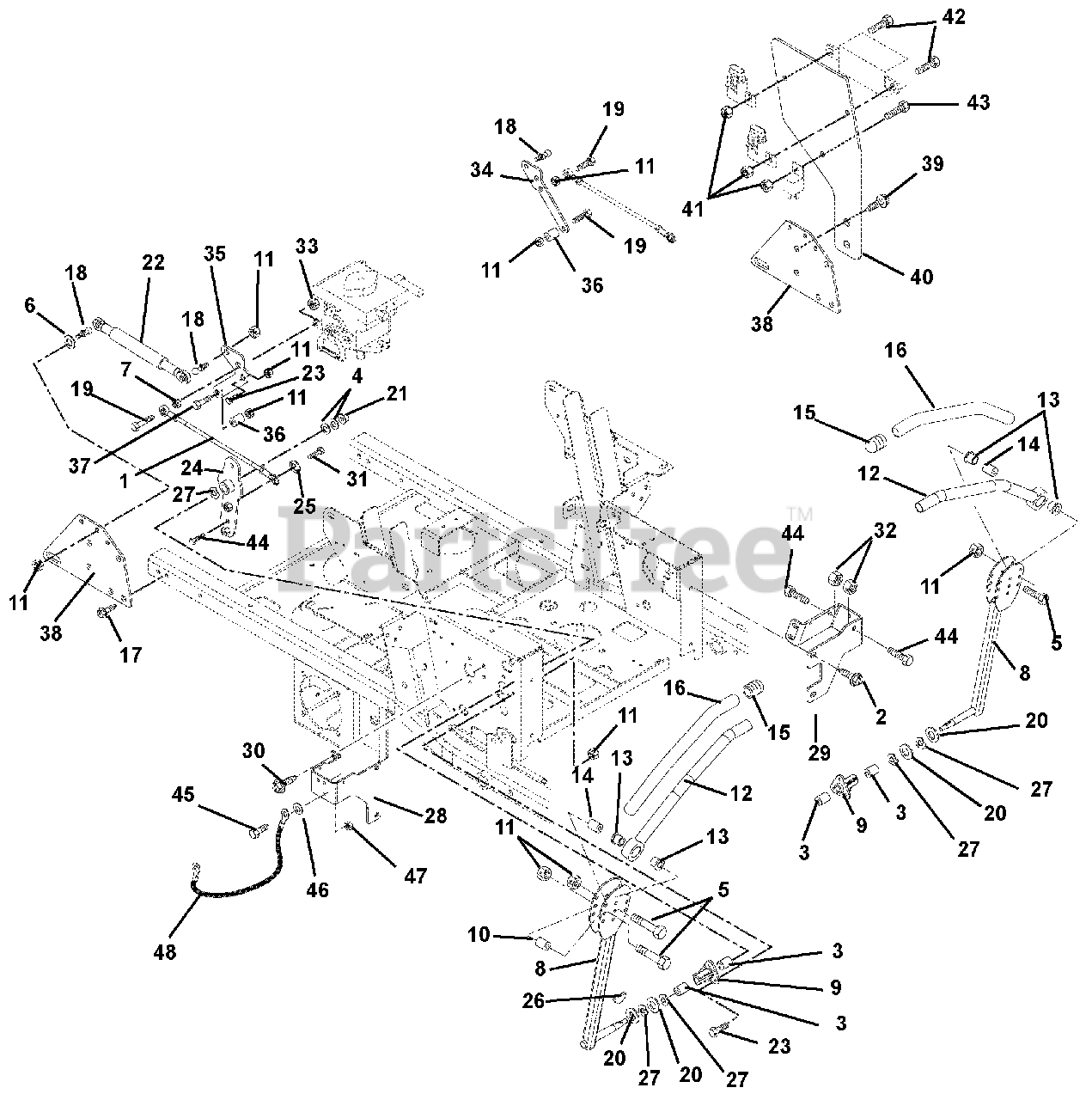

Controls Parts Diagram

  • Title

1

Gravely 00395900

Assembly, Steering Rod .38 Rod x 7.60

$32.99

$

Usually ships in 4-12 days

0

2

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05436800

Bushing .625 x .75 x .50

$10.99

$

In Stock, only 2 left!

0

4

Gravely 06436200

Washer, Flat Steel .403 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09288651

Control Arm

$191.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

Bushing, Flange

$35.99

$

In Stock, only 1 left!

0

10

Gravely 09235700

Eccentric

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235500

Handle Weldment Left-Hand

$105.99

$

In Stock, Qty 6

0

Gravely 09235600

Handle Weldment Right-Hand

$94.99

$

In Stock, only 3 left!

0

13

Gravely 035172

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05525200)

$3.99

$

In Stock, Qty 12

0

14

Gravely 09235400

Spacer

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 09211400

Caplug, Handlebar

$3.49

$

In Stock, Qty 20+

0

16

Gravely 09246800

Grip, Handlebar

$13.99

$

In Stock, Qty 20+

0

17

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 03652200

Stud, Ball

$3.99

$

In Stock, Qty 20+

0

19

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

20

Gravely 06436100

Washer, Flat Steel .63 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

21

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09273400

Damper, Control

$73.99

$

In Stock, Qty 20+

0

23

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 00176400

Weldment, Pivot Arm

$163.99

$

Usually ships in 4-12 days

0

25

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

26

Gravely 124545

Key, Woodruff .13 x .63
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

27

Gravely 03704900

Washer, Wave

$2.49

$

In Stock, only 2 left!

0

28

Gravely 09289151

Stop, Steering Right Hand

$74.99

$

Usually ships in 4-12 days

0

29

Gravely 09289251

Stop, Steering Left Hand

$43.99

$

Usually ships in 4-12 days

0

30

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0

31

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 17

0

32

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 09288900

Bracket, Left Hand

$

$

Not available

35

Gravely 09288800

Bracket, Right Hand
(Superseded to 00178251)

$22.99

$

Usually ships in 4-12 days

0

36

Gravely 03101900

Spacer .318 x .43 x .375

$

$

Not available

37

Gravely 05947500

Bolt, Hex .31-18 x 1.25 Grade 5
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

38

Gravely 09289051

Bracket, Damper

$10.99

$

Usually ships in 4-12 days

0

39

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head (091, 107)
(Superseded to 07400126)

Note: (091, 107)

$1.99

$

In Stock, Qty 19

0

40

Gravely 09292551

Bracket, EFI Box Mount (091, 107)

Note: (091, 107)

$

$

Not available

41

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert (091, 107)
(Superseded to 06500915)

Note: (091, 107)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06116800

Screw, Machine 10-24 x 2.00 Hex Washer Head (091, 107)

Note: (091, 107)

$

$

Not available

43

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (091, 107)
(Superseded to 05901825)

Note: (091, 107)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 05974000

Bolt-Hex .375-16 x 1.75 Full Thread
(Superseded to 05901612)

$3.49

$

In Stock, only 1 left!

0

45

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 13

0

46

Gravely 06439500

Washer, Flat Steel .265 x .50 x .087
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

47

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

48

Gravely 06927100

Cable, Hood

$15.99

$

In Stock, only 2 left!

0
