992068 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 004501 & Above) Mounting Arms and Belt Guards Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

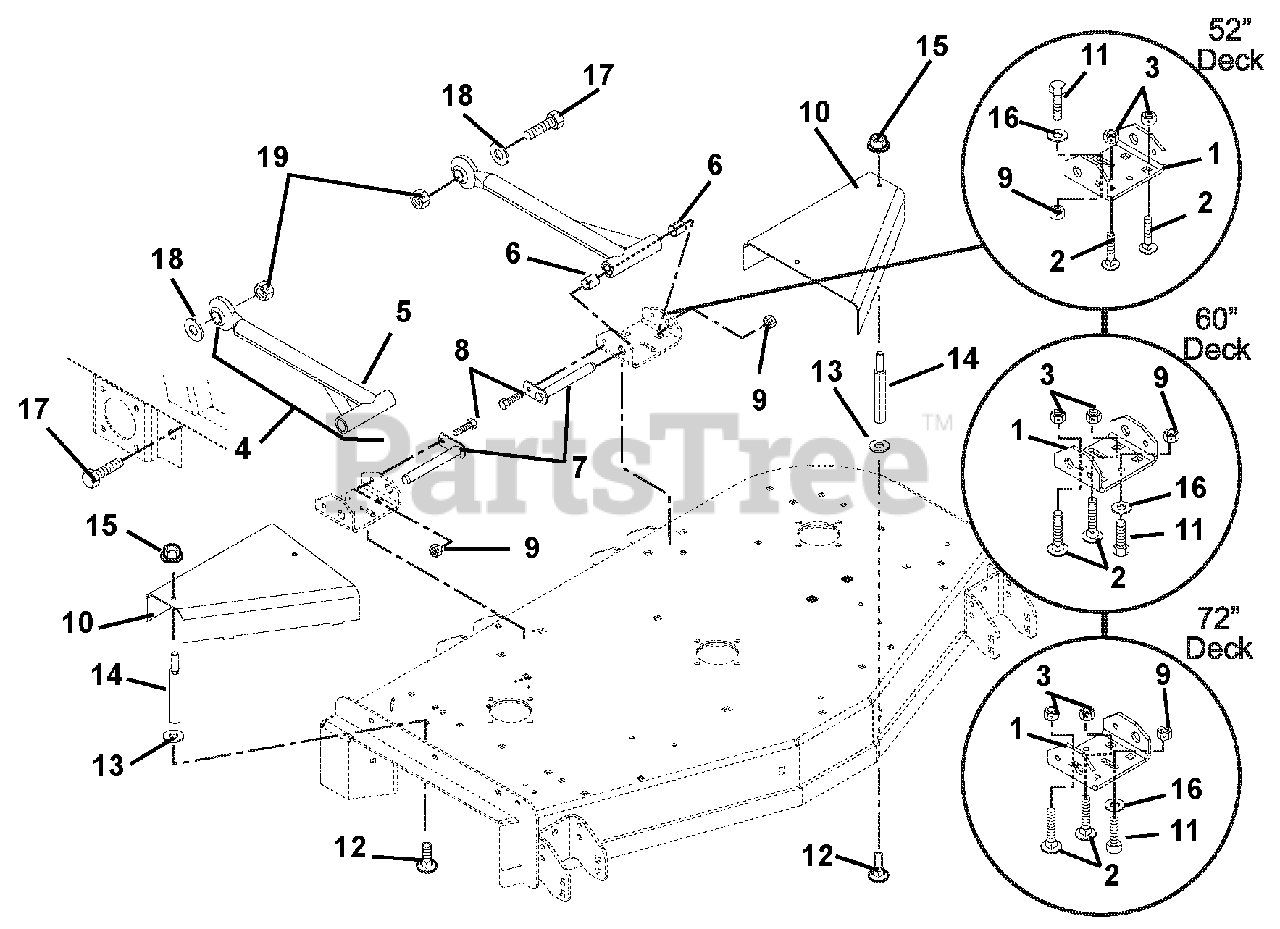

Mounting Arms and Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

Bracket, Mower Mounting (Rear)

Note: (Rear)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06224600

Bolt, Round Head Square Neck .50-13 x 1.00 Grade 5
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.99

$

In Stock, only 3 left!

0

4

Gravely 09247800

Assembly, Mower Mounting Arm (Includes Items 5 and 6)

Note: (Includes Items 5 and 6)

$276.99

$

Usually ships in 4-12 days

0

5

Gravely 09247951

Weldment, Mower Mounting Arm

$261.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

Bearing .75 x .875 x 1.00

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

Weldment, Mower Mounting Pin

$63.99

$

In Stock, Qty 6

0

8

Gravely 05932600

Bolt, Hex .38-16 x .88 Grade 5

$2.99

$

In Stock, only 1 left!

0

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09246353

Guard, Pulley Right Hand (045, 052, 066, 071, 084, 087, 102, 103, 104)

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$70.99

$

In Stock, only 1 left!

0

Gravely 09246253

Guard, Pulley Left Hand (045, 052, 066, 071, 084, 087, 102, 103, 104)

Note: (045, 052, 066, 071, 084, 087, 102, 103, 104)

$52.99

$

In Stock, only 2 left!

0

Gravely 09240853

Guard, Pulley Left Hand (046, 047, 067, 068, 085, 088, 089, 105, 106)
(Superseded to 09240851)

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$64.99

$

Usually ships in 4-12 days

0

Gravely 09240753

Guard, Pulley Right Hand (046, 047, 067, 068, 085, 088, 089, 105, 106)
(Superseded to 09240751)

Note: (046, 047, 067, 068, 085, 088, 089, 105, 106)

$47.99

$

In Stock, only 1 left!

0

Gravely 09252553

Guard, Right Hand Pulley (086, 091, 107)

Note: (086, 091, 107)

$96.99

$

Usually ships in 4-12 days

0

Gravely 09252453

Guard, Left Hand Pulley (086, 091, 107)

Note: (086, 091, 107)

$105.99

$

Usually ships in 4-12 days

0

11

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200425)

$4.99

$

In Stock, Qty 7

0

13

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179 (086, 091, 107, 108)
(Superseded to 06401103)

Note: (086, 091, 107, 108)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 00271200

Standoff, 2.75 x .312-18

$35.99

$

In Stock, Qty 6

0

15

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05969500

Bolt, Hex .875-9 x 2.75 Grade 5

$8.49

$

In Stock, only 2 left!

0

18

Gravely 06444700

Washer, Flat Steel .875 x 1.50 x .120
(Superseded to 06401207)

$4.99

$

In Stock, Qty 15

0

19

Gravely 06539700

Nut, Locking Center .875-9

$6.49

$

In Stock, Qty 9

0
