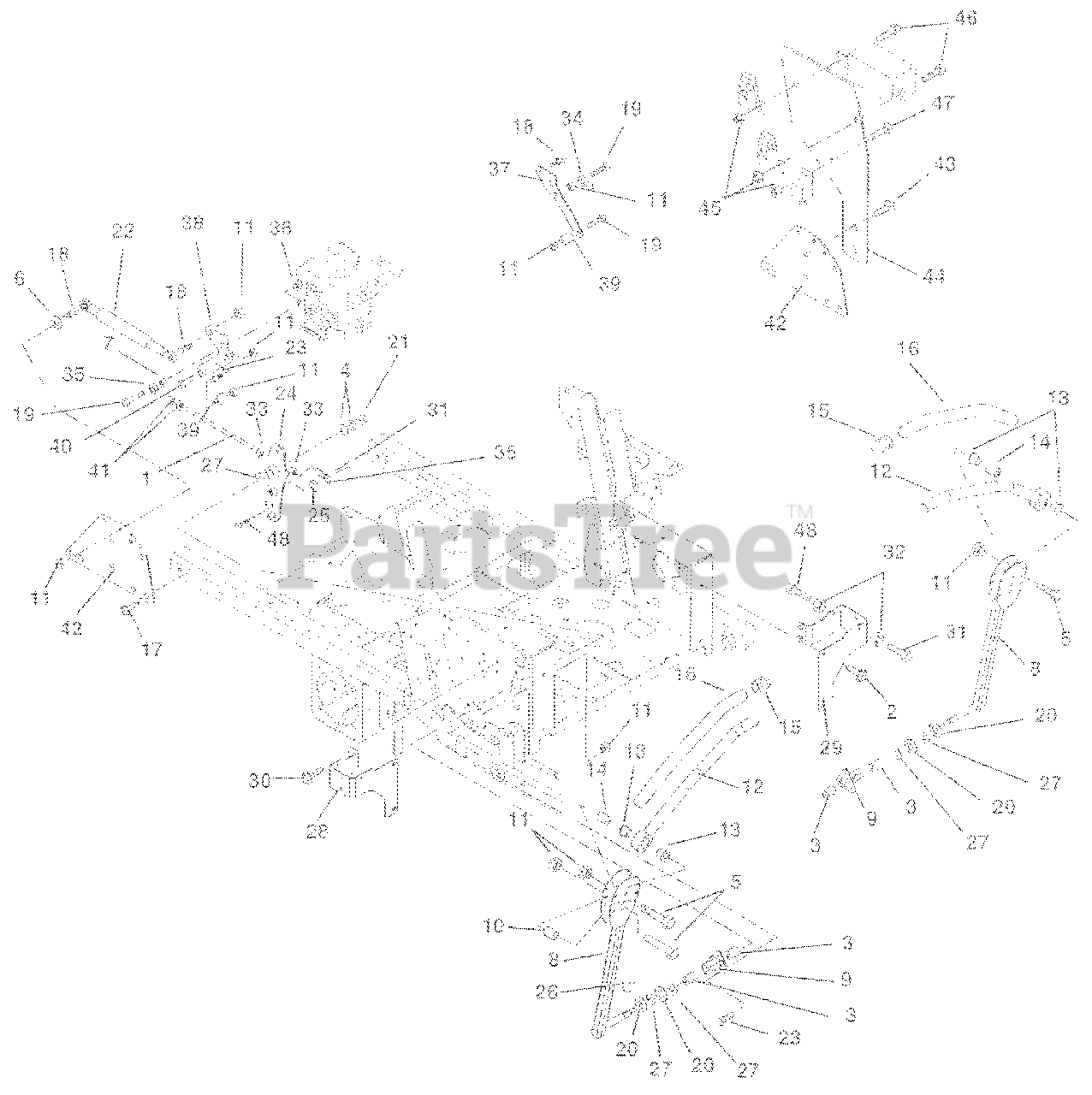

992069 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 000101 - 000499) Controls Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

Controls Parts Diagram

  • Title

1

Gravely 09288700

Rod, Steering Adjustment
(Superseded to 00395900)

$32.99

$

Usually ships in 4-12 days

0

2

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05436800

Bushing .625 x .75 x .50

$10.99

$

In Stock, only 2 left!

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$3.49

$

In Stock, Qty 7

0

6

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09288651

Control Arm

$191.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

Bushing, Flange

$35.99

$

In Stock, only 1 left!

0

10

Gravely 09235700

Eccentric

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235500

Handle Weldment Left-Hand

$105.99

$

In Stock, Qty 6

0

Gravely 09235600

Handle Weldment Right-Hand

$94.99

$

In Stock, only 3 left!

0

13

Gravely 035172

Bushing, Flange Nylon .762 x 1.48 x .44
(Superseded to 05525200)

$3.99

$

In Stock, Qty 12

0

14

Gravely 09235400

Spacer

$21.99

$

Usually ships in 4-12 days

0

15

Gravely 09211400

Caplug, Handlebar

$3.49

$

In Stock, Qty 20+

0

16

Gravely 09246800

Grip, Handlebar

$13.99

$

In Stock, Qty 20+

0

17

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 03652200

Stud, Ball

$3.99

$

In Stock, Qty 20+

0

19

Gravely 05957900

Bolt, Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

20

Gravely 06436100

Washer, Flat Steel .63 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

21

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09273400

Damper, Control

$73.99

$

In Stock, Qty 20+

0

23

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 09267500

Weldment, Pivot Arm

$

$

Not available

25

Gravely 06308800

Washer, Locking .38X.094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

26

Gravely 124545

Key Woodruff .13 x .63
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

27

Gravely 09704900

Washer, Wave

$

$

Not available

28

Gravely 09289151

Stop, Steering Right Hand

$74.99

$

Usually ships in 4-12 days

0

29

Gravely 09289251

Stop, Steering Left Hand

$43.99

$

Usually ships in 4-12 days

0

30

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.99

$

In Stock, Qty 19

0

31

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.99

$

In Stock, Qty 17

0

32

Gravely 06535900

Nut, Hex Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06537400

Nut, Jam .375-24 Left Hand
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 03563100

Rod End .38 Right Hand

$17.99

$

In Stock, only 2 left!

0

35

Gravely 03668700

Rod End, .38 Left Hand

$16.99

$

Usually ships in 4-12 days

0

36

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 09288900

Bracket, Left Hand

$

$

Not available

38

Gravely 09288800

Bracket, Right Hand
(Superseded to 00178251)

$22.99

$

Usually ships in 4-12 days

0

39

Gravely 03101900

Spacer .318 x .43 x .375

$

$

Not available

40

Gravely 05947500

Bolt, Hex .31-18 x .125 Grade 5
(Superseded to 05901803)

$2.99

$

In Stock, Qty 6

0

41

Gravely 06534700

Nut, Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

42

Gravely 09289051

Bracket, Damper

$10.99

$

Usually ships in 4-12 days

0

43

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head (069)
(Superseded to 07400126)

Note: (069)

$1.99

$

In Stock, Qty 19

0

44

Gravely 09292551

Bracket, EFI Box Mount (069)

Note: (069)

$

$

Not available

45

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert (069)
(Superseded to 06500915)

Note: (069)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 06116800

Screw, Machine 10-24 x 2.00 Hex Washer Head (069)

Note: (069)

$

$

Not available

47

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (069)
(Superseded to 05901825)

Note: (069)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 05974000

Bolt-Hex .375-16 x 1.750 Full Thread
(Superseded to 05901612)

$3.49

$

In Stock, only 1 left!

0
