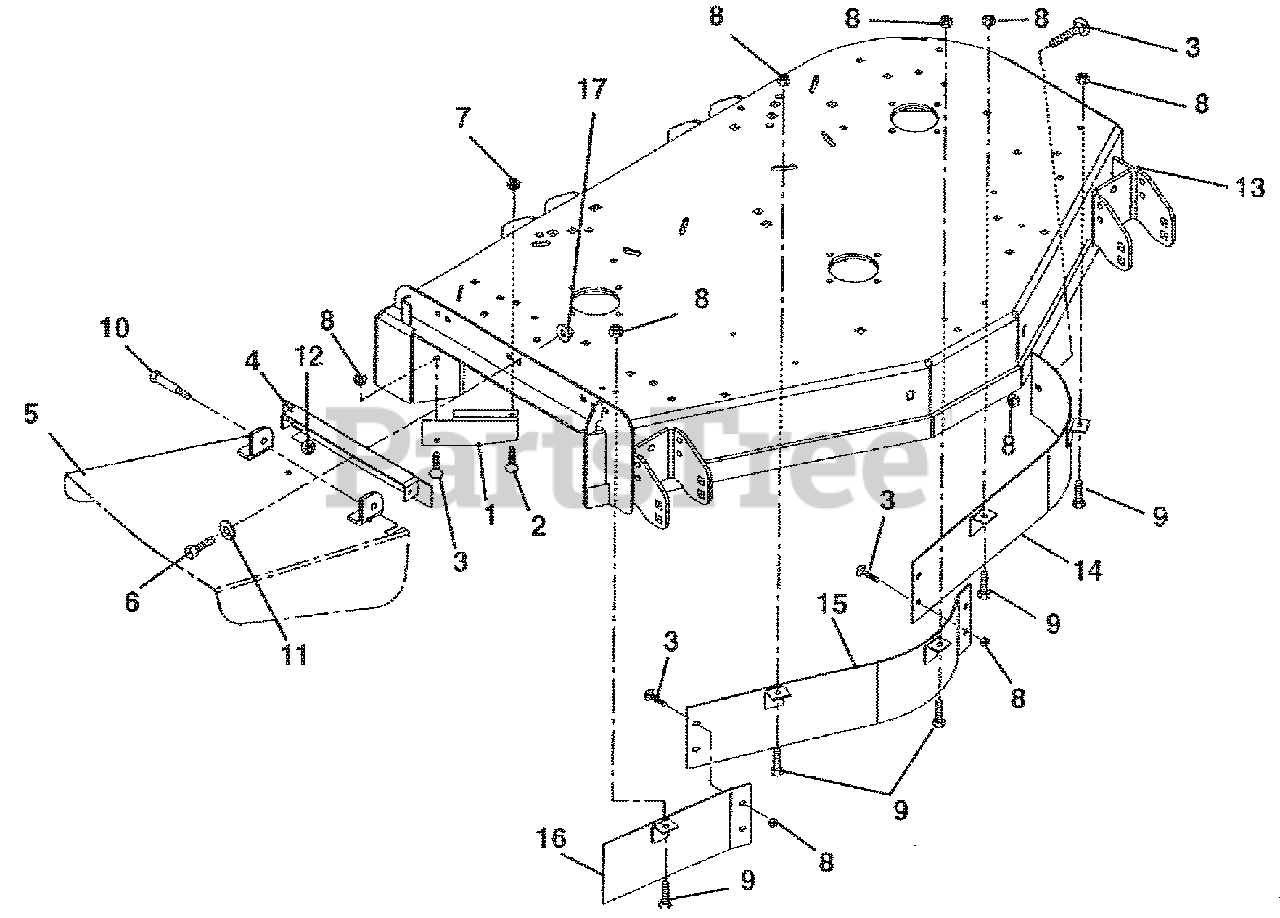

992069 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 000101 - 000499) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 09096051

Deflector- 72 in. (070, 072)

Note: (070, 072)

$35.99

$

Usually ships in 4-12 days

0

Gravely 09238451

Deflector- 60 in (067, 068, 069)

Note: (067, 068, 069)

$28.99

$

Usually ships in 4-12 days

0

Gravely 04921951

Deflector- 52 in. (066, 071)
(Superseded to 04921953)

Note: (066, 071)

$30.99

$

Usually ships in 4-12 days

0

2

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

3

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 09286753

Weldment, Discharge Chute Bracket (066, 071)

Note: (066, 071)

$153.99

$

Usually ships in 4-12 days

0

Gravely 00253253

Weldment, Discharge Chute Bracket (067, 068, 069, 070, 072)

Note: (067, 068, 069, 070, 072)

$92.99

$

Usually ships in 4-12 days

0

5

Gravely 09286153

Chute-Discharge (066)

Note: (066)

$191.99

$

Usually ships in 4-12 days

0

Gravely 00252953

Chute-Discharge (071)

Note: (071)

$191.99

$

In Stock, only 1 left!

0

Gravely 00198253

Chute-Discharge (067, 068, 069, 060)

Note: (067, 068, 069, 060)

$233.99

$

In Stock, only 1 left!

0

Gravely 09096953

Chute-Discharge (070, 072)

Note: (070, 072)

$268.99

$

In Stock, only 1 left!

0

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07056500

Bolt, Shoulder .38-16 x .50 Socket Head
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

11

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083 (066, 071)
(Superseded to 06401023)

Note: (066, 071)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09284453

Weldment, 52 in. Mower Deck (066, 071)
(Superseded to 59225400)

Note: (066, 071)

$921.99

$

Usually ships in 4-12 days

0

Gravely 09288253

Weldment, 60 in. Mower Deck (067, 068, 069)
(Superseded to 59228200)

Note: (067, 068, 069)

$1793.99

$

Usually ships in 4-12 days

0

Gravely 09292953

Weldment, 72 in. Mower Deck - Float (070, 072)
(Superseded to 59004300)

Note: (070, 072)

$

$

Not available

14

Gravely 04921651

Weldment, Upper Baffle Left 52 in. (066, 067)
(Superseded to 04921653)

Note: (066, 067)

$58.99

$

In Stock, only 3 left!

0

Gravely 09241651

Weldment, Upper Baffle Left 60 in. (067, 068, 069)

Note: (067, 068, 069)

$112.99

$

In Stock, only 1 left!

0

Gravely 09096451

Weldment, Baffle, Left Front-72 in. (070, 072)

Note: (070, 072)

$96.99

$

Usually ships in 4-12 days

0

15

Gravely 04921751

Weldment, Baffle, Center Front 52 in. (066, 071)

Note: (066, 071)

$75.99

$

In Stock, Qty 5

0

Gravely 09241751

Weldment, Baffle, Center Front 60 in. (067, 068, 069)

Note: (067, 068, 069)

$102.99

$

In Stock, only 1 left!

0

Gravely 09096351

Weldment, Baffle, Center Front 72 in. (070, 072)

Note: (070, 072)

$92.99

$

Usually ships in 4-12 days

0

16

Gravely 04921851

Weldment, Baffle, Right Front 52 in. (066, 071)
(Superseded to 04921853)

Note: (066, 071)

$40.99

$

In Stock, Qty 7

0

Gravely 09241851

Weldment, Baffle, Right Front 60 in. (067, 068, 069)

Note: (067, 068, 069)

$58.99

$

Usually ships in 4-12 days

0

Gravely 09096551

Weldment, Baffle, Right Front 72 in. (070, 072)

Note: (070, 072)

$89.99

$

Usually ships in 4-12 days

0

17

05634900

Nut, Flange 0375-16

$

$

Not available
