992069 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 000101 - 000499) Fuel Tanks And Hoses - EFI Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

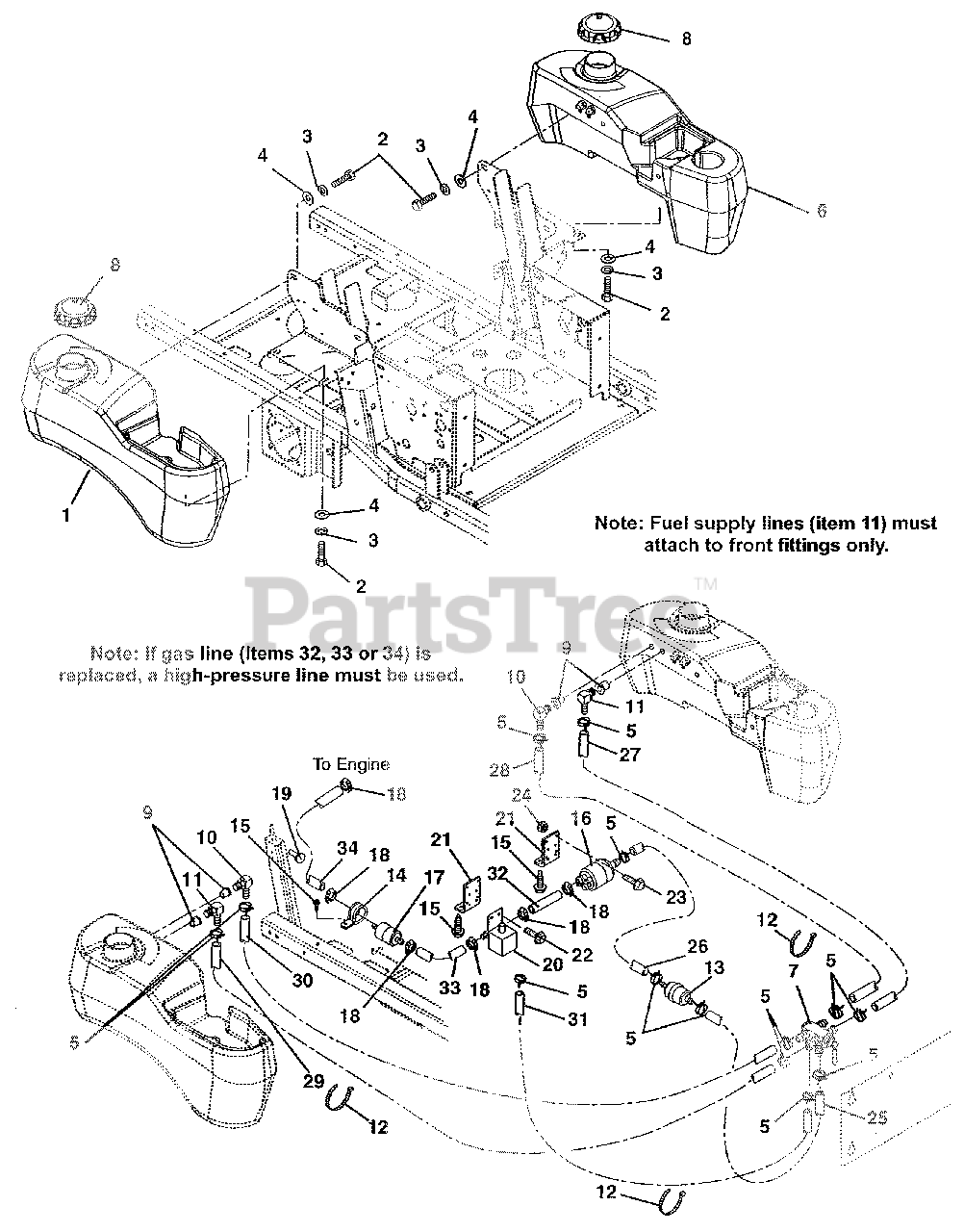

Fuel Tanks And Hoses - EFI Parts Diagram

  • Title

1

Gravely 09290900

Fuel Tank, Right Hand
(Superseded to 04004800)

$219.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 16

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

5

Gravely 06947900

Hose, Clamp

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 00199100

Tank, Left Hand Fuel (EYE-Q)-200 Series-EFI
(Superseded to 04007000)

Note: (EYE-Q)-200 Series-EFI

$249.99

$

Usually ships in 4-12 days

0

7

Gravely 09289600

Valve, Fuel

$85.99

$

Usually ships in 4-12 days

0

8

Gravely 09269500

Cap, Gas
(Superseded to 03791851)

$26.99

$

Usually ships in 4-12 days

0

9

Gravely 07511400

Bushing

$3.49

$

In Stock, Qty 20+

0

10

Gravely 21537200

Fitting, Tank Elbow

$20.99

$

Usually ships in 4-12 days

0

11

Gravely 21539100

Fitting, Tank Elbow

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 07517300

Tie, Cable

$

$

Not available

13

Gravely 05050300

Filter, Fuel .31

$20.99

$

Usually ships in 4-12 days

0

14

Gravely 06948000

Clamp, 2.18

$

$

Not available

15

Gravely 07412900

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

16

Gravely 21536600

Pump, EFI Fuel

$

$

Not available

17

Gravely 21536500

Filter, Fuel
(Superseded to 21542900)

$68.99

$

Usually ships in 4-12 days

0

18

Gravely 06924300

Hose Clamp

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 09236500

Tube Clip .75

$

$

Not available

20

Gravely 21536700

Regulator, EFI Fuel

$

$

Not available

21

Gravely 09292751

Bracket, Pump and Regular Mounting

$

$

Not available

22

Gravely 07411600

Screw, Tapping .25-20 x .37 Hex Washer Head
(Superseded to 07400125)

$0.99

$

In Stock, Qty 7

0

23

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06504100

Nut, Locking Top 10-24

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 00922600

Hose, .31 ID Low Pressure

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 00922600

Hose, .31 ID Low Pressure

$0.99

$

Usually ships in 4-12 days

0

27

Gravely 00922600

Hose, .31 ID Low Pressure Left Hand

$0.99

$

Usually ships in 4-12 days

0

28

Gravely 00922600

Hose, .31 ID Low Pressure Left Hand

$0.99

$

Usually ships in 4-12 days

0

29

Gravely 00922600

Hose, .31 ID Low Pressure Right Hand

$0.99

$

Usually ships in 4-12 days

0

30

Gravely 00922600

Hose, .31 ID Low Pressure Right Hand

$0.99

$

Usually ships in 4-12 days

0

31

Gravely 00922600

Hose, .31 ID Low Pressure

$0.99

$

Usually ships in 4-12 days

0

32

Gravely 00936700

Gas Line .31 ID Hight Pressure

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 00936700

Gas Line .31 ID Hight Pressure

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 00936700

Gas Line .31 ID Hight Pressure

$2.49

$

Usually ships in 4-12 days

0
