992069 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 000101 - 000499) Motors And Wheels Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

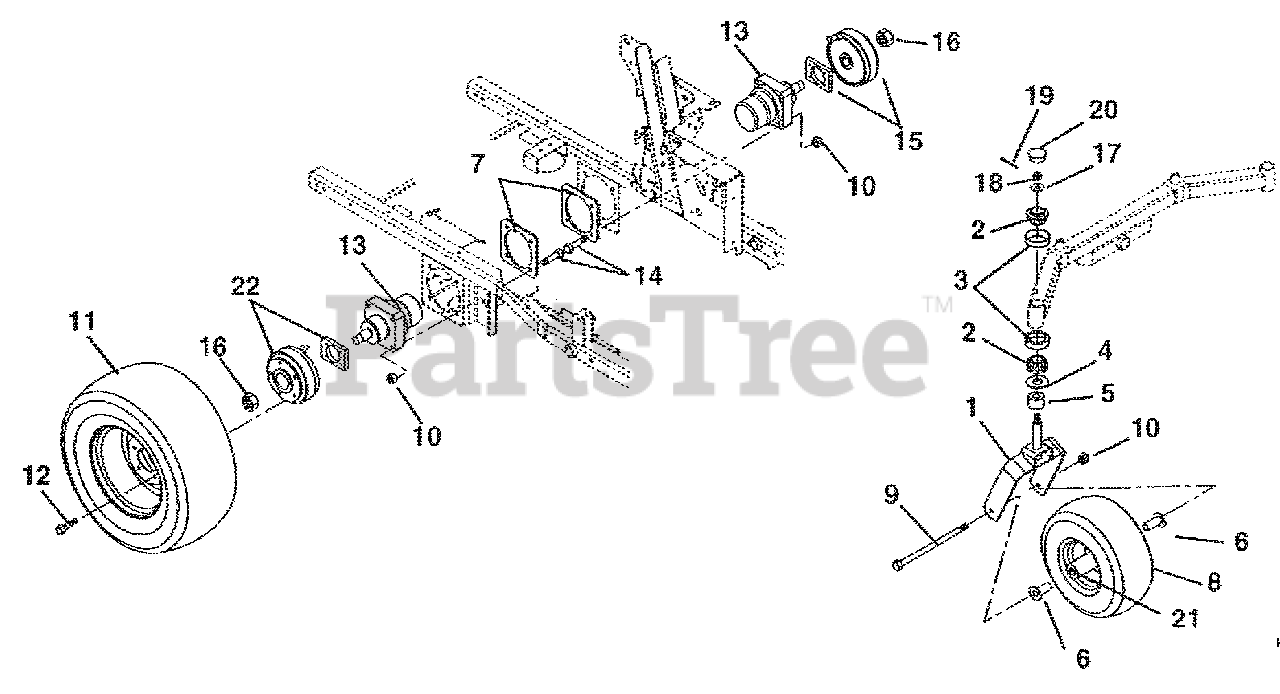

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09263653

Fork, Front
(Superseded to 59208500)

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

Bearing, Cone w/ Grease
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

Bearing, Cup 1.980 x .420

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

Bearing Seal 1.5 x 2 x .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

Spacer, PM, 1.03 I.D. x 1.5 O.D. x .375

$8.49

$

In Stock, Qty 19

0

6

Gravely 00160900

Spacer, Wheel

$40.99

$

Usually ships in 4-12 days

0

7

Gravely 09278500

Plate, Motor Support

$

$

Not available

8

Gravely 07147800

Wheel/Tires Assembly
(Superseded to 59219000)

$197.99

$

In Stock, only 2 left!

0

Gravely 07147100

Tire, 15 x 6-6
(Superseded to 07100905)

$87.99

$

In Stock, only 2 left!

0

9

Gravely 05961200

Bolt, Hex .50-13 x 9.00 Grade 5
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 07157500

Tire/Wheel Assembly 24 x 12-12
(Superseded to 59210100)

$351.99

$

Usually ships in 4-12 days

0

Gravely 07158100

Tire, Turfmaster 24 x 12-12
(Superseded to 07101040)

$300.99

$

Usually ships in 4-12 days

0

12

Gravely 07067700

Bolt, Lug .50-20 x 1.38 Grade 8, 60 Degrees
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 09263100

Hydraulic Wheel Motor (includes 16)

Note: (includes 16)

$963.99

$

Usually ships in 4-12 days

0

14

Gravely 07067200

Bolt, Wheel Motor .50-13 x 2.75

$18.99

$

In Stock, only 3 left!

0

15

Gravely 09419800

Brake, Right Hand Park
(Superseded to 58904200)

$896.99

$

Usually ships in 4-12 days

0

16

Gravely 06541900

Nut, Lock Jam Patch (Included with 13)

Note: (Included with 13)

$33.99

$

In Stock, only 1 left!

0

17

Gravely 06441500

Washer, Flat Steel .755 x 1.375 x .062
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

18

Gravely 00595500

Nut, Slotted .75-16

$3.99

$

In Stock, Qty 12

0

19

Gravely 06712300

Pin, Cotter .16 x 1.00

$2.49

$

In Stock, only 4 left!

0

20

Gravely 20655400

Cap, Dust

$10.99

$

In Stock, Qty 20+

0

21

Gravely 05435700

Bearing, 25mm I.D. x 52mm O.D. x 15mm

$25.99

$

In Stock, Qty 20+

0

22

Gravely 09419700

Brake, Left Hand Park
(Superseded to 58904200)

$896.99

$

Usually ships in 4-12 days

0
