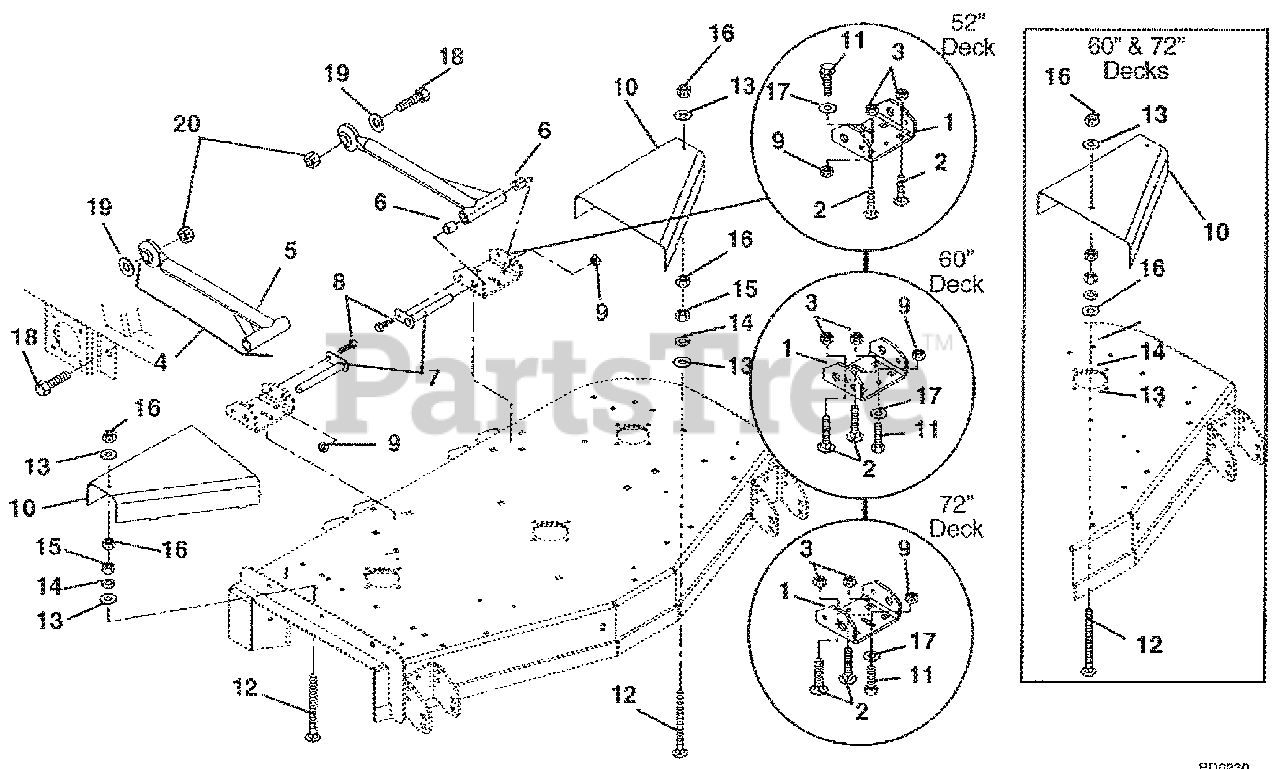

992069 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 000101 - 000499) Mounting Arms And Belt Guards Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09240453

Bracket, Mower Mounting (Rear)

Note: (Rear)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06224600

Bolt, Round Head Square Neck .50-13 x 1.00 Grade 5
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 06519700

Nut, Locking Center Jam .50-13

$2.99

$

In Stock, only 3 left!

0

4

Gravely 09247800

Assembly, Mower Mounting Arm (Includes Items 5 and 6)

Note: (Includes Items 5 and 6)

$276.99

$

Usually ships in 4-12 days

0

5

Gravely 09247951

Weldment, Mower Mounting Arm

$261.99

$

Usually ships in 4-12 days

0

6

Gravely 05435900

Bearing .75 x .875 x 1.00

$6.99

$

In Stock, Qty 20+

0

7

Gravely 09238900

Weldment, Mower mounting Pin

$63.99

$

In Stock, Qty 6

0

8

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade5
(Superseded to 05901702)

$1.99

$

In Stock, Qty 10

0

9

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09246353

Guard, Pulley Right Hand (066, 071)

Note: (066, 071)

$70.99

$

In Stock, only 1 left!

0

Gravely 09246253

Guard, Pulley Left Hand (066, 071)

Note: (066, 071)

$52.99

$

In Stock, only 2 left!

0

Gravely 09240853

Guard, Pulley Left Hand (067, 068, 069)
(Superseded to 09240851)

Note: (067, 068, 069)

$64.99

$

Usually ships in 4-12 days

0

Gravely 09240753

Guard, Pulley Right Hand (067, 068, 069)
(Superseded to 09240751)

Note: (067, 068, 069)

$47.99

$

In Stock, only 1 left!

0

Gravely 09252553

Guard, Right Hand Pulley (070, 072)

Note: (070, 072)

$96.99

$

Usually ships in 4-12 days

0

Gravely 09252453

Guard, Left Hand Pulley (070, 072)

Note: (070, 072)

$105.99

$

Usually ships in 4-12 days

0

11

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06221300

Bolt, Round Head Square Neck .31-18 x 3.50 Grade 5
(Superseded to 06200411)

$6.99

$

In Stock, only 1 left!

0

13

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

16

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05969500

Bolt, Hex .875-9 x 2.75 Grade 5

$8.49

$

In Stock, only 2 left!

0

19

Gravely 06444700

Washer, Flat Steel .875 x 1.50 x .120
(Superseded to 06401207)

$4.99

$

In Stock, Qty 15

0

20

Gravely 06539700

Nut, Locking Center .875-9

$6.49

$

In Stock, Qty 9

0
