992069 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 28hp Kohler (SN: 000101 - 000499) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 28hp Kohler

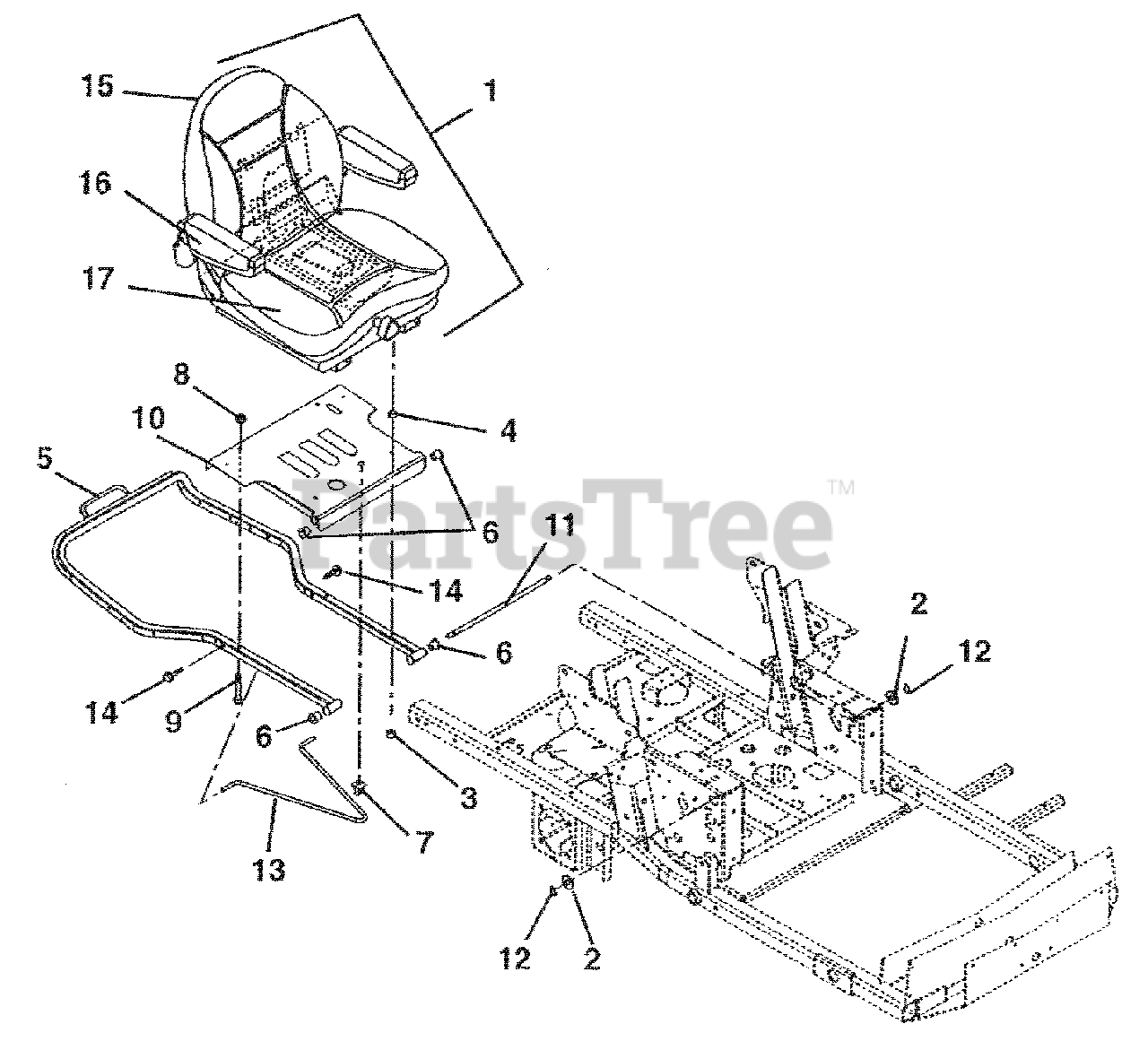

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 09293000

Seat, Suspension
(Superseded to 03947200)

$925.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 039145

Bushing, Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

5

Gravely 09289553

Weldment, Hood Frame
(Superseded to 09293353)

$277.99

$

Usually ships in 4-12 days

0

6

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.99

$

In Stock, Qty 18

0

7

Gravely 07534100

Clip

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07056300

Bolt, Rib Neck .38-16 x 1.50

$

$

Not available

10

Gravely 09259751

Weldment, Seat Pivot Plate
(Superseded to 03259951)

$

$

Not available

11

Gravely 09245400

Rod, Seat Frame Pivot

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

Ring, Retaining External .500 x .050

$2.99

$

In Stock, only 2 left!

0

13

Gravely 09258500

Rod, Prop

$

$

Not available

14

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 59204300

Kit, Back Cushion

$369.99

$

Usually ships in 4-12 days

0

17

Gravely 59204400

Kit, Seat Cushion

$235.99

$

Usually ships in 4-12 days

0

16

Gravely 59204500

Kit, Armrest

$

$

Not available
