992071 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000499) Control Panel Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

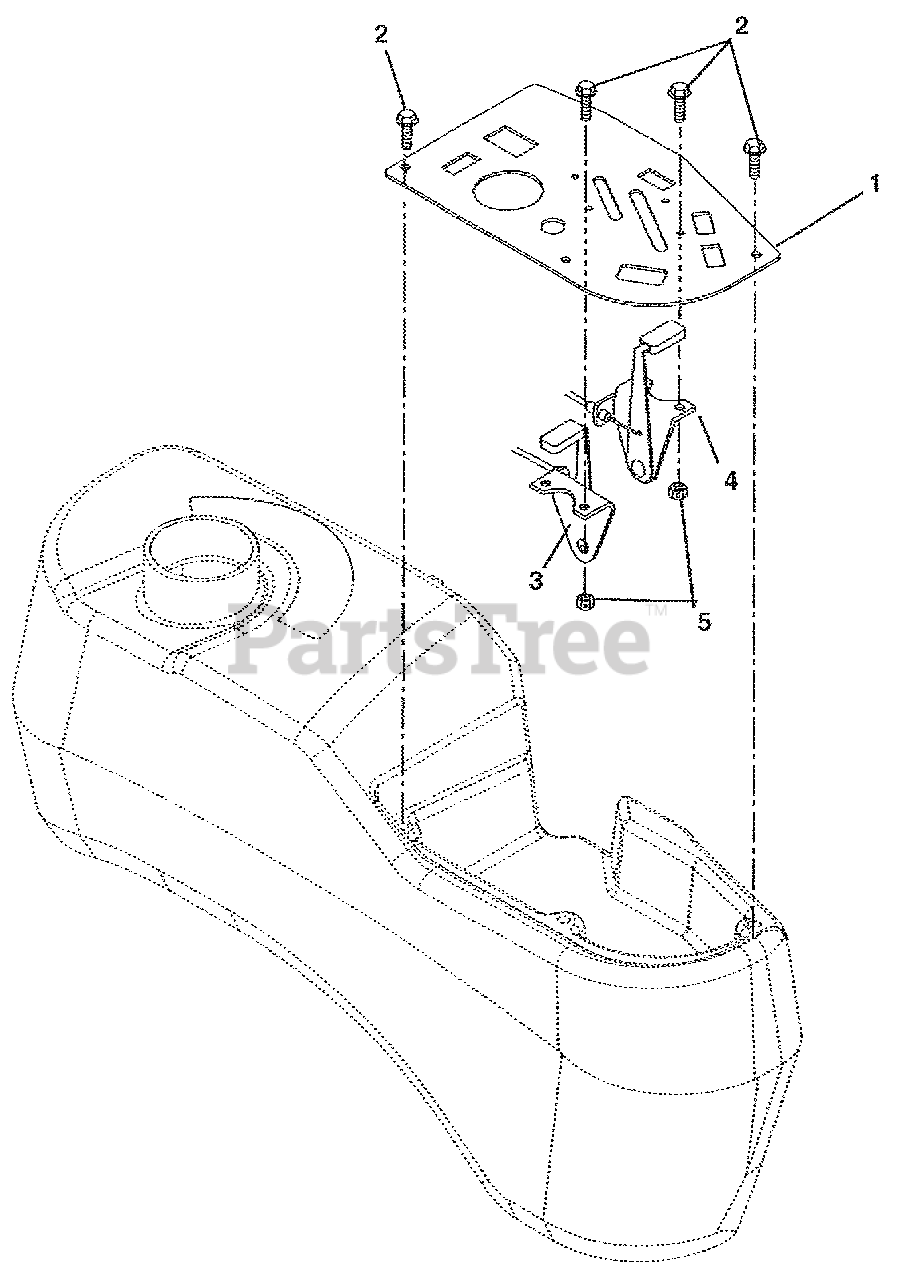

Control Panel Parts Diagram

  • Title

1

Gravely 09292800

Panel, Control
(Superseded to 09292851)

$50.99

$

Usually ships in 4-12 days

0

2

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (066, 067, 068, 070, 071, 072)
(Superseded to 05901825)

Note: (066, 067, 068, 070, 071, 072)

$0.99

$

In Stock, Qty 20+

0

Gravely 06116700

Screw, Machine 10-24 x .50 Hex Washer Head (069)
(Superseded to 05901825)

Note: (069)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09236700

Throttle, Control
(Superseded to 06900026)

$45.99

$

In Stock, only 1 left!

0

4

Gravely 06946300

Choke Control (066, 067, 070)

Note: (066, 067, 070)

$59.99

$

In Stock, only 1 left!

0

Gravely 09236800

Choke Control (068, 071, 072)

Note: (068, 071, 072)

$45.99

$

Usually ships in 4-12 days

0

5

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert (066, 067, 068, 070, 071, 072)
(Superseded to 06500915)

Note: (066, 067, 068, 070, 071, 072)

$0.99

$

In Stock, only 4 left!

0

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert (069)
(Superseded to 06500915)

Note: (069)

$0.99

$

In Stock, only 4 left!

0
