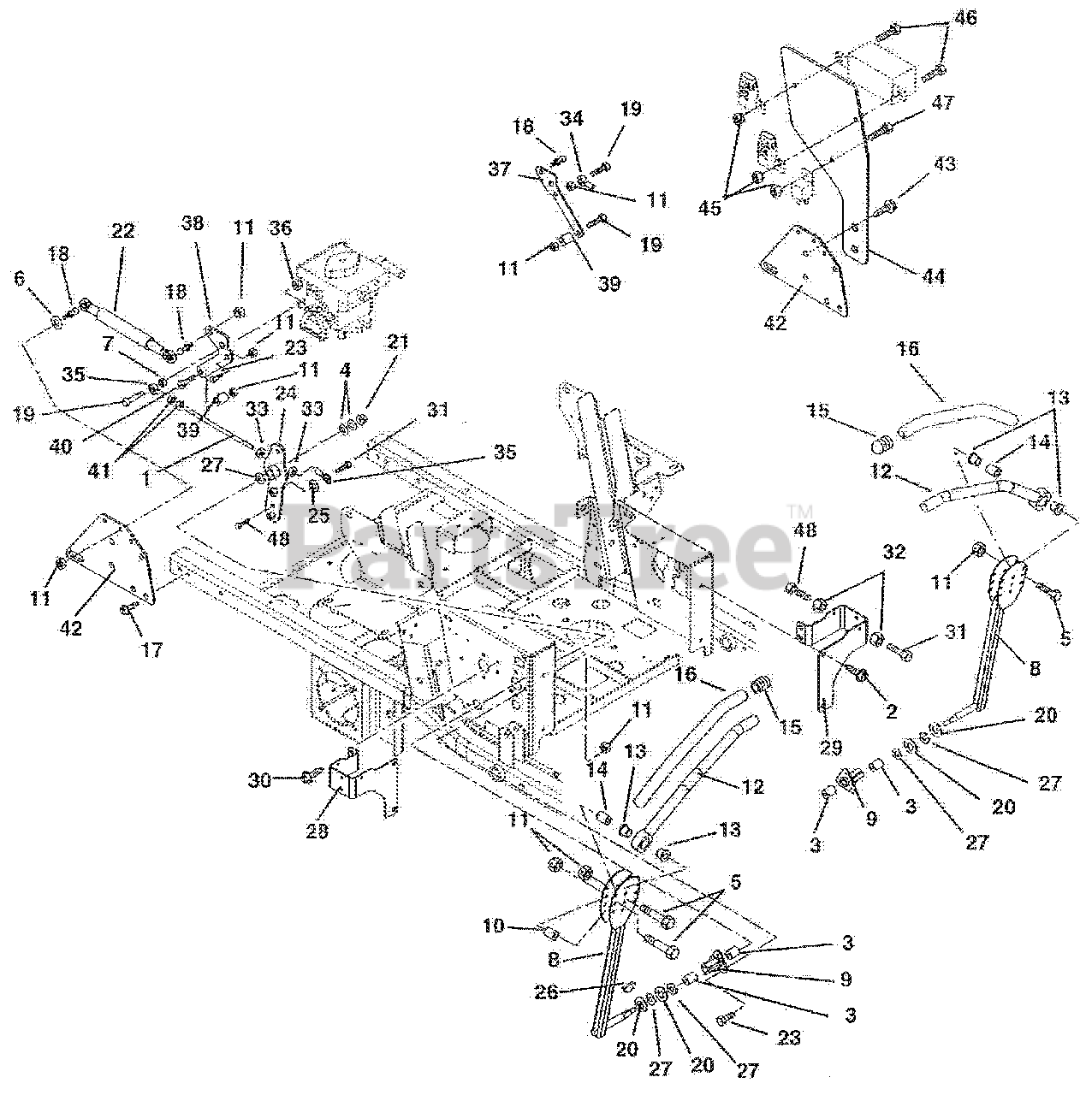

992071 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000499) Controls Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

Controls Parts Diagram

  • Title

1

Gravely 09288700

ROD, STEERING ADJ.
(Superseded to 00395900)

$32.99

$

In Stock, only 1 left!

0

2

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05436800

BSHG .625X.750X.500

$10.99

$

In Stock, only 2 left!

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09288651

CONTROL ARM WELDMENT - BLACK

$191.99

$

Usually ships in 4-12 days

0

9

Gravely 09294600

BUSHING, FLANGE

$35.99

$

In Stock, only 1 left!

0

10

Gravely 09235700

ECCENTRIC

$5.49

$

In Stock, only 2 left!

0

11

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09235500

HANDLE WLDMT LH

$105.99

$

In Stock, Qty 6

0

Gravely 09235600

WLDMT, RH HANDLE

$94.99

$

In Stock, only 3 left!

0

13

Gravely 035172

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05525200)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

In Stock, only 1 left!

0

15

Gravely 09211400

CAPLUG - HANDLEBAR

$3.49

$

In Stock, Qty 20+

0

16

Gravely 09246800

GRIP - HANDLEBAR

$13.99

$

In Stock, Qty 20+

0

17

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 03652200

STUD- BALL

$3.99

$

In Stock, Qty 13

0

19

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

20

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09273400

DAMPER, CONTROL

$73.99

$

In Stock, Qty 19

0

23

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 09267500

WMT, PIVOT ARM

$

$

Not available

25

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 124545

KEY-WDRF .13X.63 HRD#5
(Superseded to 06608400)

$2.99

$

In Stock, only 1 left!

0

27

Gravely 09704900

CLUTCH HOUSING CASTING

$

$

Not available

28

Gravely 09289151

RH STOP BRACKET - BLACK

$74.99

$

Usually ships in 4-12 days

0

29

Gravely 09289251

LH STOP BRACKET - BLACK

$43.99

$

Usually ships in 4-12 days

0

30

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 03563100

ROD END, .38 RH

$17.99

$

In Stock, only 3 left!

0

35

Gravely 03668700

END, ROD-.38 LH

$16.99

$

Usually ships in 4-12 days

0

36

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 09288900

BRKT, RTN DAMPER - LH

$

$

Not available

38

Gravely 09288800

BRKT, RTN DAMPER - RH
(Superseded to 00178251)

$22.99

$

Usually ships in 4-12 days

0

39

Gravely 03101900

SPACER .318X.430X.375

$

$

Not available

40

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

41

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 09289051

DAMPER BRACKET - BLACK

$10.99

$

Usually ships in 4-12 days

0

43

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (069)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 09292551

BRKT, EFI BOX MNT

Note: (069)

$

$

Not available

45

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (069)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 06116800

SCR-MCH 10-24X2.00 HWH YWZC

Note: (069)

$

$

Not available

47

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (069)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$3.49

$

Usually ships in 4-12 days

0
