992071 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000499) Deck Lift Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

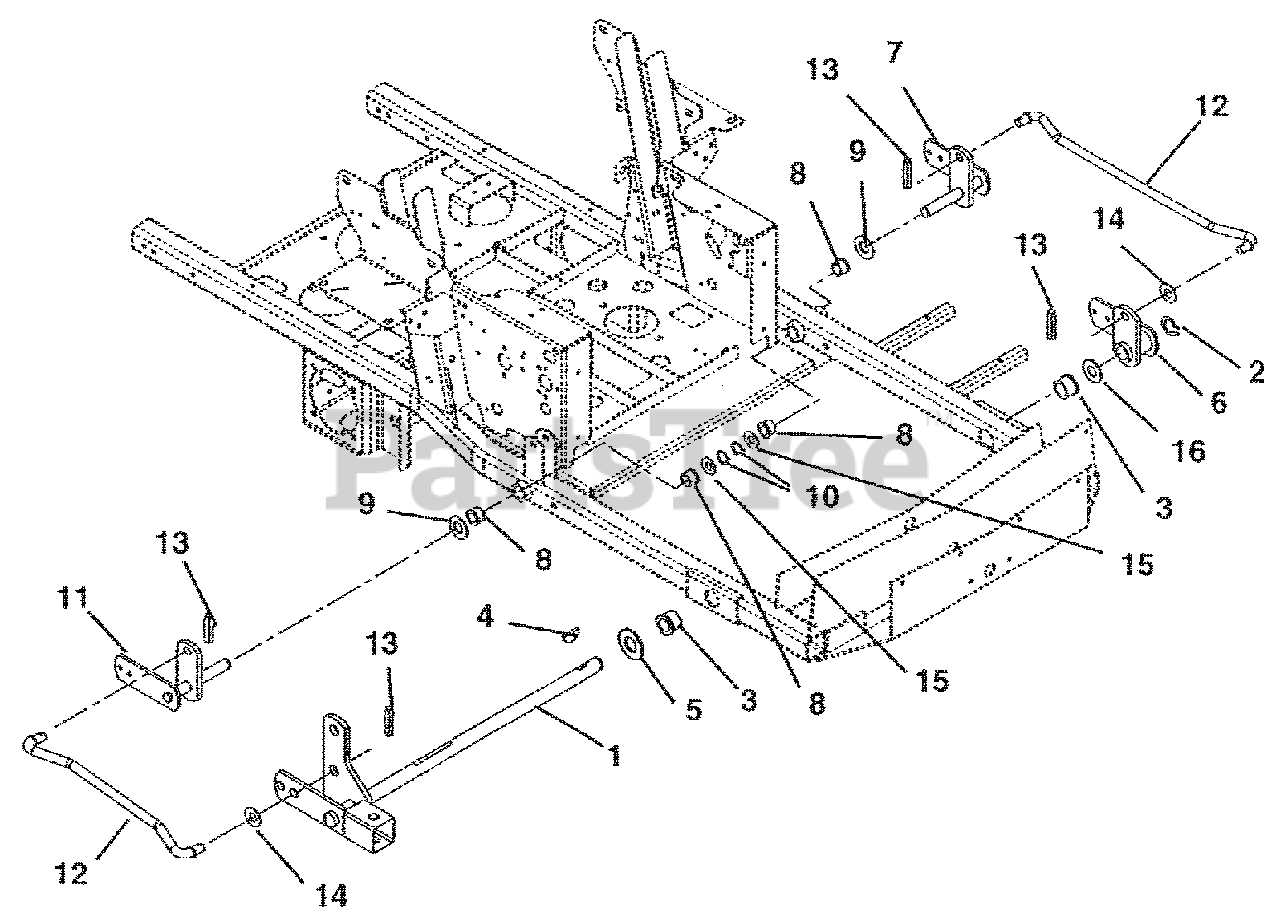

Deck Lift Parts Diagram

  • Title

1

Gravely 09289700

MOWER LIFT

$303.99

$

Usually ships in 4-12 days

0

2

Gravely 050206

ARM-DUMP VALVE
(Superseded to 03453900)

$

$

Not available

3

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

4

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

5

Gravely 103348

WSHR-FL-STL 1.063X2.00X.134
(Superseded to 06428500)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 09289800

WMT, FRONT MOWER LIFT-LH

$184.99

$

Usually ships in 4-12 days

0

7

Gravely 09290000

WMT, REAR LIFT ARM -LH

$127.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

9

Gravely 036407

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 09289900

WMT, REAR LIFT ARM - RH

$

$

Not available

12

Gravely 00185800

ROD, LIFT ASSIST 19.35"
(Superseded to 04063100)

$81.99

$

Usually ships in 4-12 days

0

13

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$3.49

$

In Stock, only 1 left!

0

14

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.49

$

In Stock, Qty 8

0
