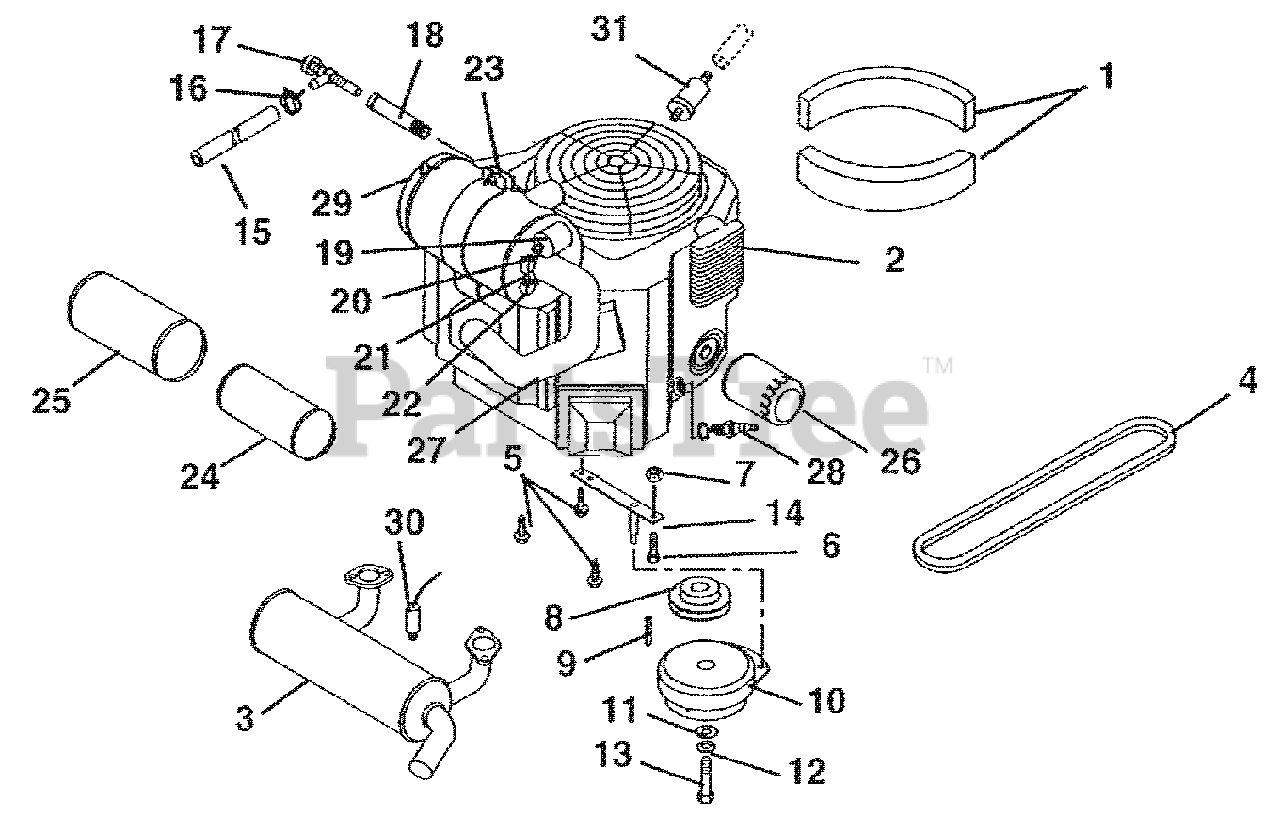

992071 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000499) Engine And Clutch Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 09293900

SEAL, FOAM

$

$

Not available

2

Gravely 08268200

ENGINE, KOHLER 28HP EFI

Note: (069)

$

$

Not available

Gravely 08268100

ENGINE, KOHLER 27HP

Note: (068, 071, 072)

$

$

Not available

Gravely 08268300

ENGINE, KAWASAKI 25HP

Note: (066, 067, 070)

$

$

Not available

3

Gravely 09257300

MUFFLER, KOHLER EFI

Note: (069)

$706.99

$

Usually ships in 4-12 days

0

Gravely 09294800

MUFFLER, KOHLER
(Superseded to 00470400)

Note: (070, 071, 072)

$218.99

$

In Stock, only 2 left!

0

Gravely 09256000

MUFFLER - KAWASAKI

Note: (066, 067, 070)

$403.99

$

Usually ships in 4-12 days

0

4

Gravely 07242000

POLY V-BELT, K-5 RIBS

$54.99

$

In Stock, Qty 18

0

5

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

6

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

7

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 07327000

SHEAVE, POLY V 1.127 X 3.25
(Superseded to 07300041)

$95.99

$

In Stock, Qty 5

0

9

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

10

Gravely 09266700

CLUTCH, ELECTRIC (WARNER)
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

11

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

14

Gravely 04907200

ANCHOR-CLUTCH

$75.99

$

In Stock, only 3 left!

0

15

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (066, 067, 068, 070, 071, 072)

$1.49

$

In Stock, Qty 20+

0

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (069)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

17

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

18

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 09258800

FILTER MINDER

Note: (068, 069, 071, 072)

$

$

Not available

20

Gravely 07065800

NIPPLE, 1/8"NPT

Note: (068, 069, 071, 072)

$

$

Not available

21

Gravely 07065700

ELBOW, 45 DEG 1/8" NPT STREET

Note: (068, 069, 071, 072)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 07012300

ELBOW,ADAPT.90 DEG.BRS 1/8X1/8

Note: (069, 069, 071, 072)

$

$

Not available

23

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$89.99

$

Usually ships in 4-12 days

0

24

Gravely 21536900

ELEMENT, INNER SAFETY

$29.99

$

In Stock, Qty 11

0

25

Gravely 21537000

ELEMENT, OUTER PRIMARY

$37.99

$

In Stock, Qty 20+

0

26

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (068, 069, 071, 072)

$21.99

$

Usually ships in 4-12 days

0

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (066, 067, 070)

$18.99

$

Usually ships in 2-5 days

0

27

Gravely 21536800

HOSE, AIR INTAKE

Note: (068, 069, 071, 072)

$26.99

$

In Stock, only 1 left!

0

28

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

Note: (068, 069, 071, 072)

$7.49

$

In Stock, Qty 20+

0

Gravely 21536100

PLUG, SPARK

Note: (066, 067, 070)

$10.99

$

In Stock, Qty 20+

0

29

Gravely 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

30

Gravely 21537100

SENSOR, OXYGEN

Note: (069)

$

$

Not available

31

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

Note: (066, 067, 070)

$13.99

$

In Stock, Qty 20+

0

Gravely 21539500

FILTER, FUEL

Note: (068, 069, 071, 072)

$18.99

$

In Stock, Qty 20+

0
