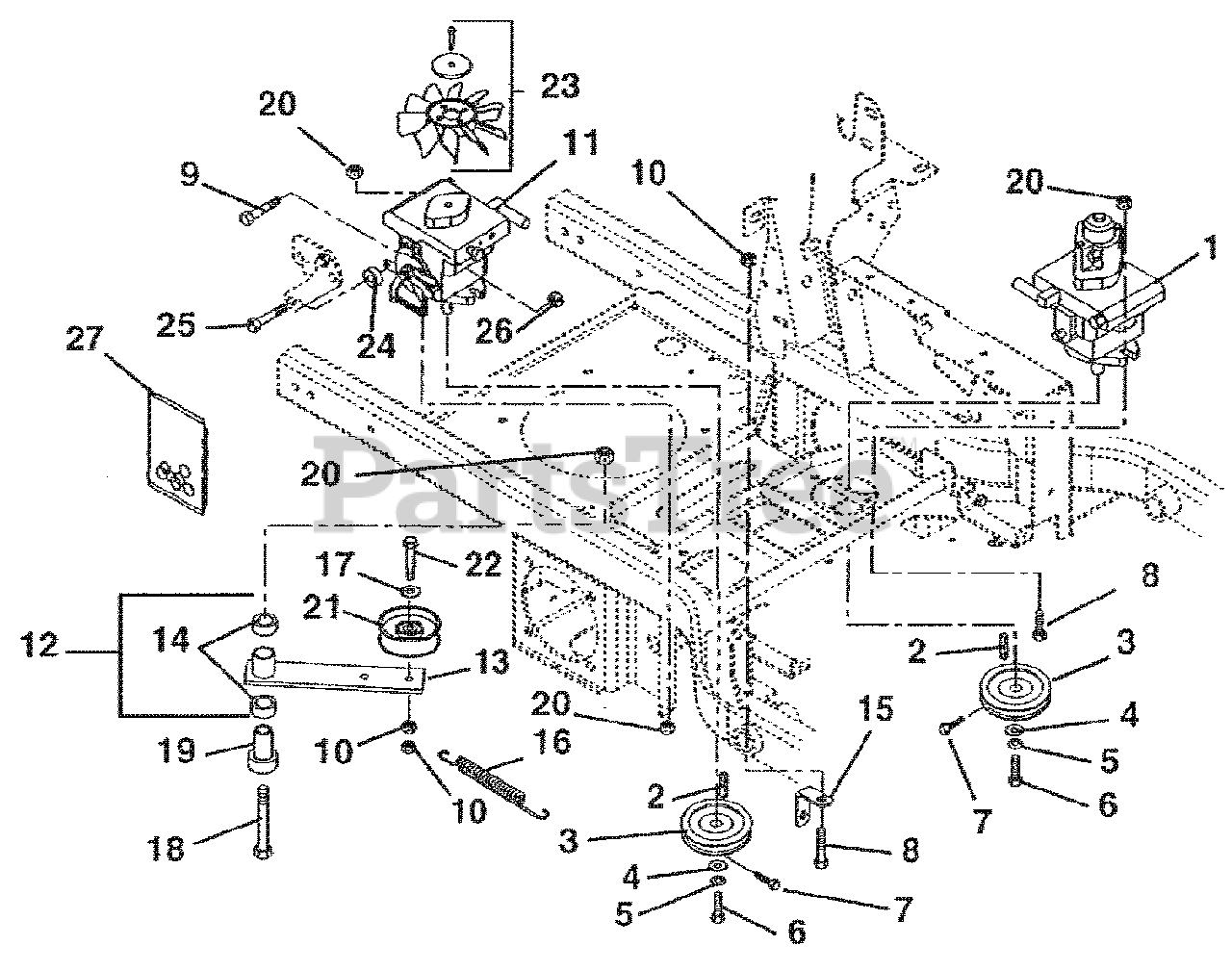

992071 (PM 252Z) - Gravely Pro-Master 52" Zero-Turn Mower, 27hp Kohler (SN: 000101 - 000499) Transmission Parts Diagram

Pro-Master 52" Zero-Turn Mower, 27hp Kohler

Transmission Parts Diagram

  • Title

1

Gravely 09288000

PUMP, HYD BDP-21 W/AUX
(Superseded to 00583400)

$1943.99

$

Usually ships in 4-12 days

0

1

Gravely 21543895

KIT, AUX PUMP

Note: NOT SHOWN

$465.99

$

Usually ships in 4-12 days

0

2

Gravely 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.99

$

In Stock, Qty 6

0

3

Gravely 07327900

SHEAVE, POLY V .671 X 4.125
(Superseded to 59210600)

$79.99

$

Usually ships in 4-12 days

0

4

Gravely 416904

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$2.49

$

In Stock, Qty 10

0

7

Gravely 05980100

SCR-SKH .25-20 X .50 PH & OIL
(Superseded to 05900127)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09287900

PUMP, HYD BDP-21 W/ THRU FAN
(Superseded to 00583600)

$1644.99

$

Usually ships in 4-12 days

0

12

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (includes 13 &14)

$102.99

$

Usually ships in 4-12 days

0

13

Gravely 09217051

WMT, IDLER ARM GROUND DRIVE
(Superseded to 09217000)

$114.99

$

Usually ships in 4-12 days

0

14

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

15

Gravely 09291100

ANCHOR, SPRING IDLER

$

$

Not available

16

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

17

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

18

Gravely 05965900

BLT-HEX .38-16X1.25 GR8 YWZC

$

$

Not available

19

Gravely 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$84.99

$

In Stock, Qty 10

0

20

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07327500

IDLER, FLAT 4.00X1.06

$46.99

$

In Stock, Qty 5

0

22

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 09292400

FAN, HYDRO PUMP COOLING
(Superseded to 03368800)

$52.99

$

In Stock, Qty 5

0

24

Gravely 03101900

SPACER .318X.430X.375

$

$

Not available

25

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

26

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 59203700

KIT, PUMP SEAL (BDP-21L)

Note: (BDP-10A)(One kit required for each pump)

$92.99

$

Usually ships in 4-12 days

0
