992074 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 000499) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 27hp Kawasaki

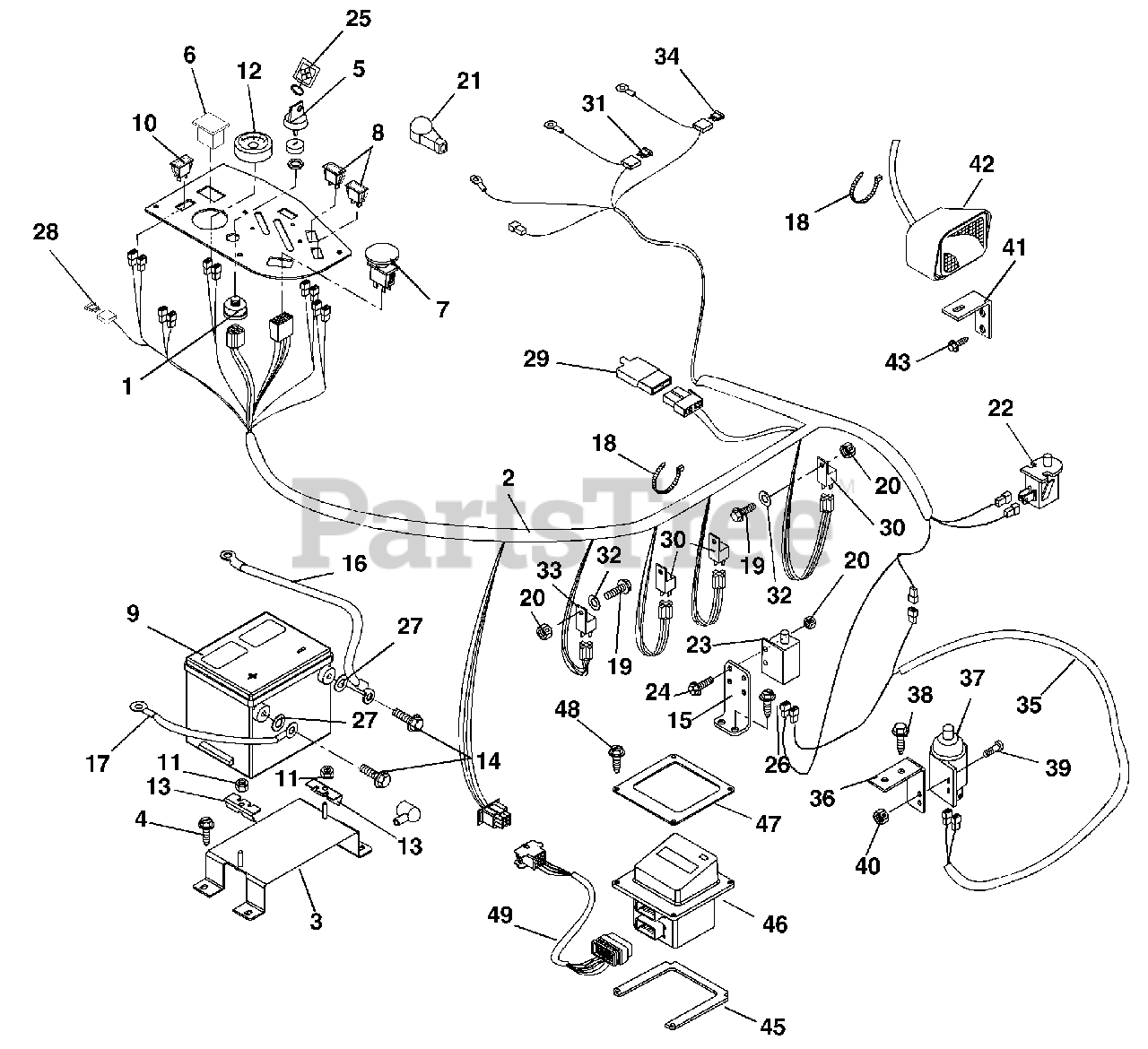

Electrical System Parts Diagram

  • Title

1

Gravely 00168400

SWITCH, IGNITION (DIESEL)

Note: (Diesel) (075, 076, 318, 319)

$58.99

$

In Stock, only 4 left!

0

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

Note: (073, 074)

$44.99

$

In Stock, Qty 20+

0

2

Gravely 00251200

HARNESS, DIESEL-L/C (EYE-Q)
(Superseded to 00360500)

Note: (Diesel) (075, 076, 318, 319)

$

$

Not available

Gravely 00251100

HARNESS, GAS-L/C (EYE-Q)
(Superseded to 00360301)

Note: (Gas) (073, 074)

$

$

Not available

3

Gravely 09266551

WMT, BATTERY SUPPORT

$

$

Not available

4

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 2 left!

0

6

Gravely 00539300

PLUG, HOUR METER

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

8

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (075, 076, 318, 319)

$7.99

$

In Stock, Qty 8

0

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

Note: (073, 074)

$7.99

$

In Stock, Qty 8

0

9

Gravely 00525500

BATTERY, GROUP 70 450 CCA 35 A

$

$

Not available

10

Gravely 08973300

SWITCH, 2 POLE/ROCKER

$7.49

$

In Stock, Qty 6

0

11

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

13

Gravely 09266600

BRKT, BATTERY HOLD-DOWN

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Gravely 09275851

MOUNT, SAFETY SWITCH

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 09412100

CABLE, POS BATT 4 GA X 45

Note: (075, 076, 318, 319)

$38.99

$

Usually ships in 4-12 days

0

Gravely 09411100

CABLE, POS BATT 4 GA. X 41.00

Note: (073, 074)

$

$

Not available

17

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

Note: (075, 076, 318, 319)

$38.99

$

Usually ships in 4-12 days

0

Gravely 09411000

CABLE, NEG BATT 4 GA.X 43 IN.

Note: (073, 074)

$

$

Not available

18

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (075, 076, 318, 319)

$2.49

$

In Stock, Qty 11

0

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (073, 074)

$2.49

$

In Stock, Qty 11

0

20

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (075, 076, 318, 319)

$0.99

$

In Stock, Qty 20+

0

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (073, 074)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

22

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (Included with Seat)

$9.99

$

In Stock, Qty 20+

0

23

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

25

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

26

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 00524700

FUSE, 15 AMP.

$

$

Not available

29

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

30

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

31

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 06442300

WSHR-FL-STL.250X.56X.049 YWZC

Note: (075, 076, 318, 319)

$2.49

$

Usually ships in 4-12 days

0

33

Pre-Heat Timer

Note: (Included with Engine) (075, 076, 318, 319)

$

$

Not available

34

Gravely 21540600

FUSE, 50 AMP (MAXI FUSE)

Note: (Included with Harness) (075, 076, 318, 319)

$

$

Not available

Gravely 08961800

FUSE,25 AMP

Note: (Included with Harness) (073, 074)

$3.99

$

In Stock, Qty 12

0

35

Gravely 09281000

HARNESS, WIRE ADAPTER CE

Note: (318, 319)

$54.99

$

Usually ships in 4-12 days

0

36

Gravely 09251253

MOUNT - SWITCH

Note: (318, 319)

$40.99

$

Usually ships in 4-12 days

0

37

Gravely 09251900

SWITCH-SINGLE POLE N.O.W/COVER

Note: (N.O.) with Cover (318, 319)

$23.99

$

In Stock, only 1 left!

0

38

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (318, 319)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

Note: (318, 319)

$2.49

$

In Stock, Qty 11

0

40

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (318, 319)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 09287551

BRACKET, HEADLIGHT MTG

$18.99

$

Usually ships in 4-12 days

0

42

Gravely 02463600

HEADLIGHT

$85.99

$

Usually ships in 4-12 days

0

43

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

45

Gravely 00252251

SPACER, ENCLOSURE MTG. (BTM)

Note: (Bottom)

$26.99

$

Usually ships in 4-12 days

0

46

Gravely 00251600

ASSY, EYE-Q

$

$

Not available

47

Gravely 00265751

PLATE, EYE-Q STIFFENER (TOP)

Note: (Top)

$

$

Not available

48

Gravely 06100002

SCR-MCH 10-24X1.0 SL PAN BLACK

$3.99

$

Usually ships in 4-12 days

0

49

Gravely 03286100

HARNESS - EYE-Q

$

$

Not available
