992075 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 - 000499) Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

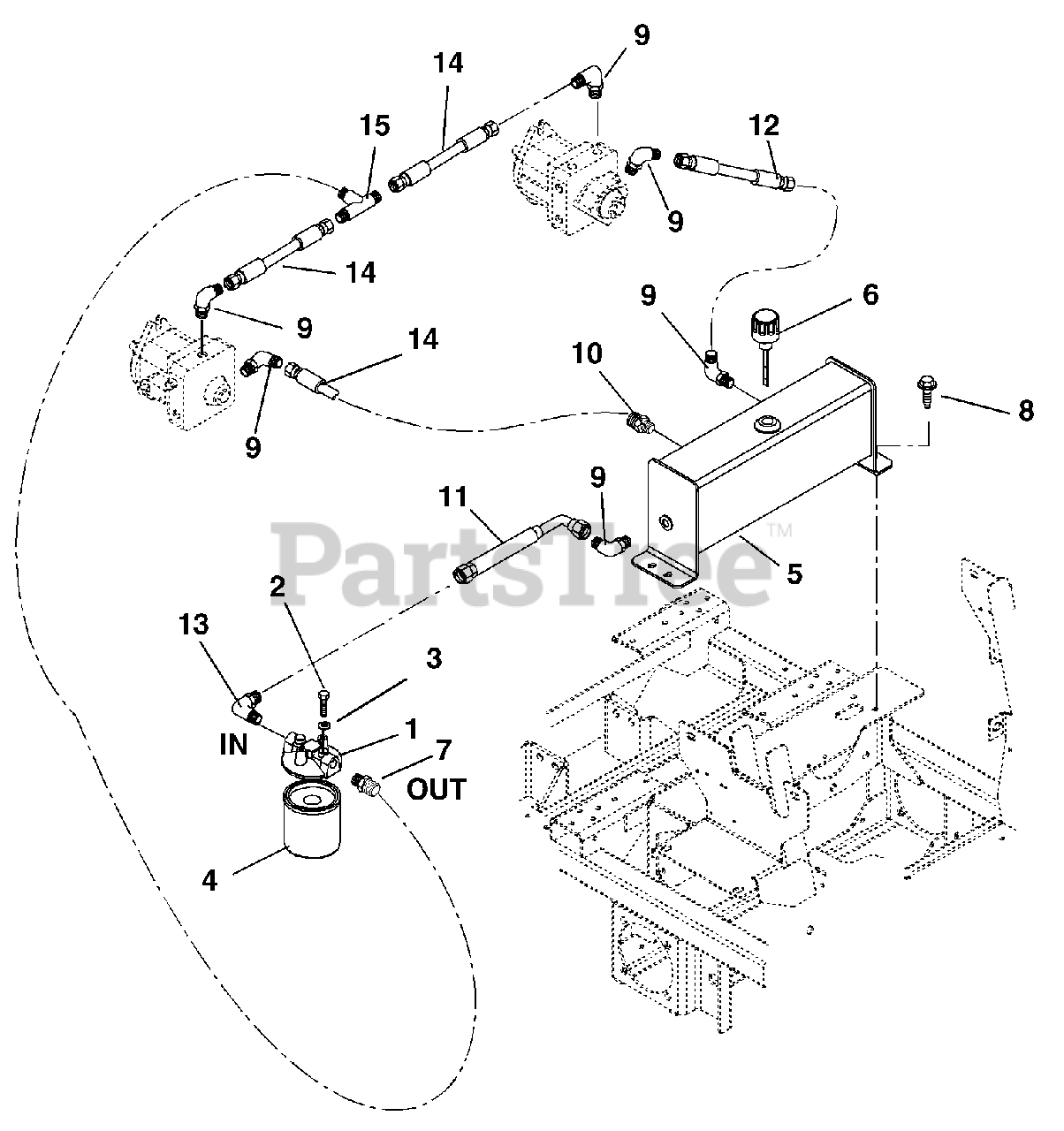

Hydraulic Tank, Filter And Pump To Tank Circuit Parts Diagram

  • Title

1

Gravely 09419900

Filter Housing

$

$

Not available

2

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

3

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

4

Gravely 09414200

Filter Element
(Superseded to 03931900)

$30.99

$

In Stock, Qty 10

0

5

Gravely 00161051

Body, Hydraulic Tank

$

$

Not available

6

Gravely 09273900

Breather, Dipstick

$85.99

$

In Stock, only 2 left!

0

7

Gravely 07050900

Adapter-Hydraulic Steel

$

$

Not available

8

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 07018200

Adapter, Hydraulic Elbow

$7.49

$

Usually ships in 4-12 days

0

10

Gravely 07020400

Adapter, Hydraulic Steel

$

$

Not available

11

Gravely 09273100

Hose-Hydraulic Valve to Tank

$

$

Not available

12

Gravely 09273300

Hose, Hydraulic

$54.99

$

Usually ships in 4-12 days

0

13

Gravely 07058500

Adapter, Elbow 90 Degree

$74.99

$

Usually ships in 4-12 days

0

14

Gravely 09273000

Hose, Hydraulic .50

$

$

Not available

15

Gravely 07066800

Fitting Hydraulic Tee

$35.99

$

Usually ships in 4-12 days

0
