992076 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000499) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

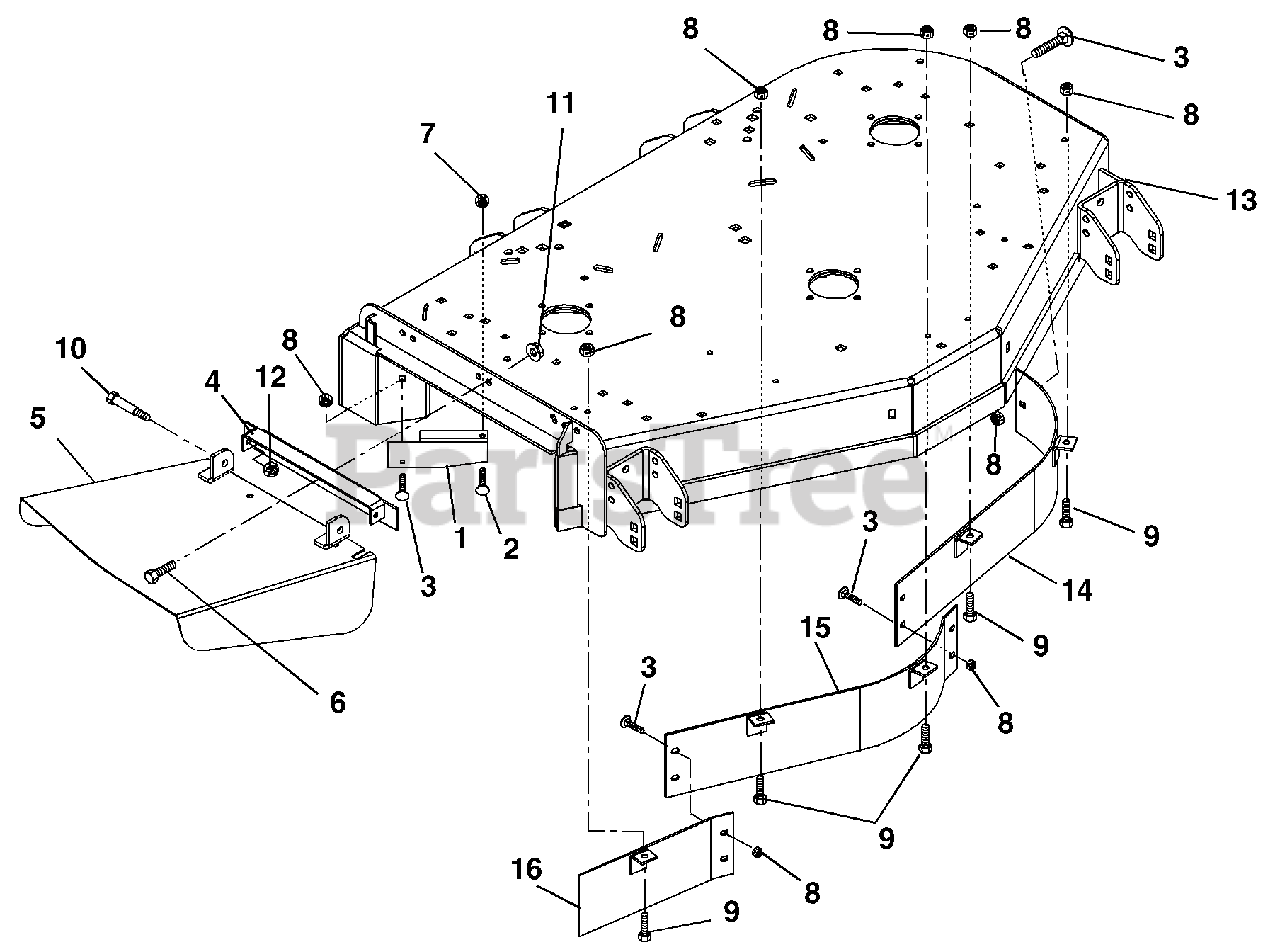

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 09238451

Deflector- 60" (073, 075, 318, 319)

Note: (073, 075, 318, 319)

$28.99

$

Usually ships in 4-12 days

0

1

Gravely 09096051

Deflector- 72" (074, 076)

Note: (074, 076)

$35.99

$

Usually ships in 4-12 days

0

2

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

3

Gravely 06215700

Bolt-Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

4

Gravely 00253253

Weldment, Discharge Chute Bracket

$92.99

$

Usually ships in 4-12 days

0

5

Gravely 00198253

Chute-Discharge (073, 075, 318, 319)

Note: (073, 075, 318, 319)

$233.99

$

In Stock, only 1 left!

0

5

Gravely 09096953

Chute-Discharge (074, 076)

Note: (074, 076)

$268.99

$

In Stock, only 1 left!

0

6

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07056500

Bolt, Shoulder .38-16 x .50 Socket Head
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

11

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09288253

Weldment, 60" Mower Deck (073, 075, 318, 319)
(Superseded to 59228200)

Note: (073, 075, 318, 319)

$1793.99

$

Usually ships in 4-12 days

0

13

Gravely 09292953

Weldment, 72" Mower Deck- Float (074, 076)
(Superseded to 59004300)

Note: (074, 076)

$

$

Not available

14

Gravely 09241651

Weldment, Upper Baffle Left 60" (073, 075, 318, 319)

Note: (073, 075, 318, 319)

$112.99

$

In Stock, only 1 left!

0

14

Gravely 09096451

Weldment, Baffle, Left Front-72" (074, 076)

Note: (074, 076)

$96.99

$

Usually ships in 4-12 days

0

15

Gravely 09241751

Weldment, Baffle, Center Front 60" (073, 075, 318, 319)

Note: (073, 075, 318, 319)

$102.99

$

In Stock, only 1 left!

0

15

Gravely 09096351

Weldment, Baffle, Center Front 72" (074, 076)

Note: (074, 076)

$92.99

$

Usually ships in 4-12 days

0

16

Gravely 09241851

Weldment, Baffle, Right Front 60" (073, 075, 318, 319)

Note: (073, 075, 318, 319)

$58.99

$

Usually ships in 4-12 days

0

16

Gravely 09096551

Weldment, Baffle, Right Front 72" (074, 076)

Note: (074, 076)

$89.99

$

Usually ships in 4-12 days

0
