992076 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000499) Fuel Tanks And Hoses - Diesel Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

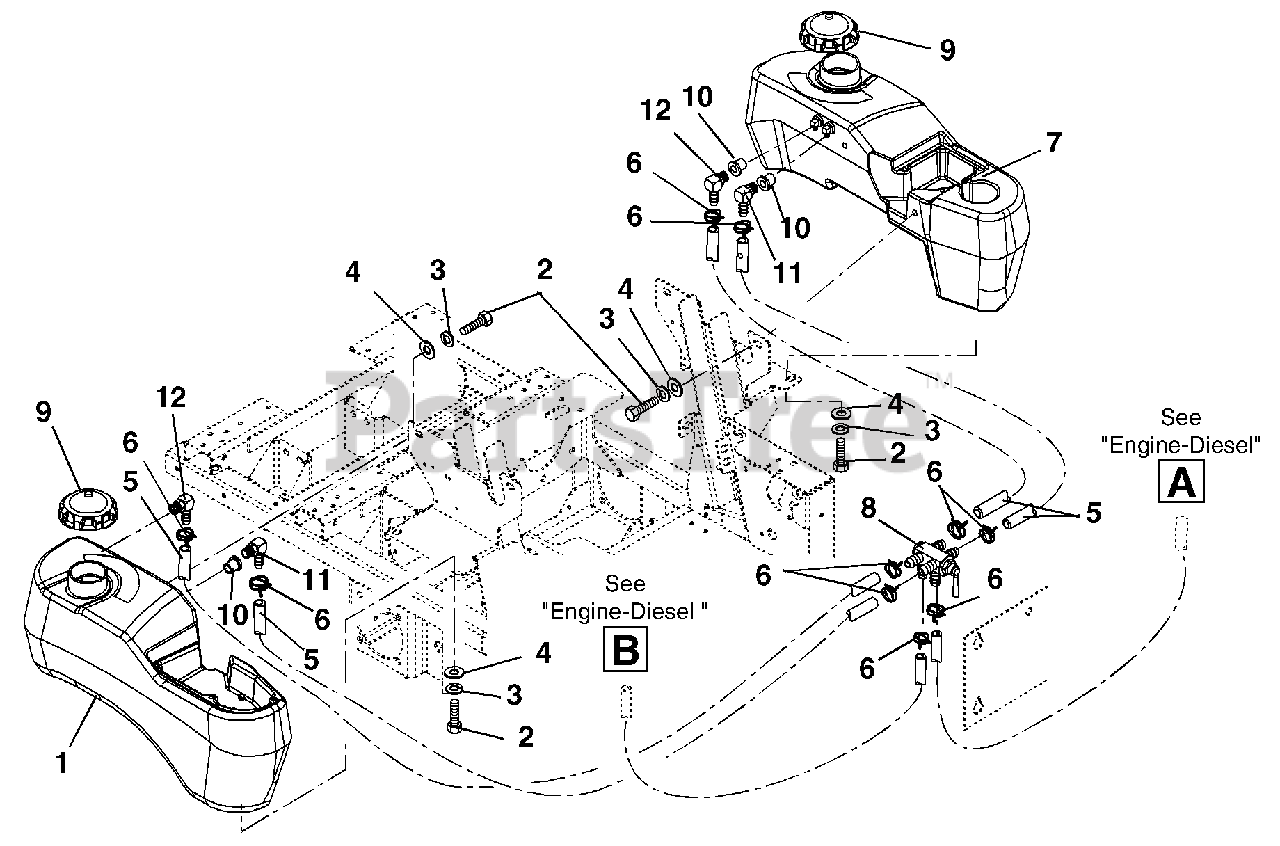

Fuel Tanks And Hoses - Diesel Parts Diagram

  • Title

1

Gravely 09290900

Tank, Fuel-Right Hand (075, 076, 318, 319)
(Superseded to 04004800)

Note: (075, 076, 318, 319)

$

$

Not available

1

Gravely 09290700

Tank, Gas Fuel-Right Hand (073, 074)
(Superseded to 03963300)

Note: (073, 074)

$501.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer, Locking .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 048544

Hose, .31 ID (075, 076, 318, 319)
(Superseded to 00922600)

Note: (075, 076, 318, 319)

$

$

Not available

5

Gravely 021134

Gas Line-Bulk .25 I.D. (073, 074)
(Superseded to 03278100)

Note: (073, 074)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06947900

Clamp, Hose Wire .52/.55 (075, 076, 318, 319)

Note: (075, 076, 318, 319)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06939100

Clamp, Hose Wire .49/.51 x .116 (073, 074)

Note: (073, 074)

$3.99

$

In Stock, Qty 7

0

7

Gravely 00199100

Tank, Left Hand Fuel (EYE-Q) 200 Series-EFI (075, 076, 318, 319)
(Superseded to 04007000)

Note: (EYE-Q) 200 Series-EFI (075, 076, 318, 319)

$254.99

$

Usually ships in 4-12 days

0

7

Gravely 00191200

Tank, Left Hand Fuel (EYE-Q) 200 Series (073, 074)

Note: (EYE-Q) 200 Series (073, 074)

$402.99

$

Usually ships in 4-12 days

0

8

Gravely 09289600

Valve, Fuel (075, 076, 318, 319)

Note: (075, 076, 318, 319)

$87.99

$

In Stock, only 2 left!

0

8

Gravely 09258200

Valve, Fuel (073, 074)

Note: (073, 074)

$48.99

$

In Stock, Qty 9

0

9

Gravely 09269100

Cap, Fuel (075, 076, 318, 319)

Note: (075, 076, 318, 319)

$35.99

$

Usually ships in 4-12 days

0

9

Gravely 09239500

Cap, Gas (073, 074)
(Superseded to 03859100)

Note: (073, 074)

$29.99

$

In Stock, only 1 left!

0

10

Gravely 07511400

Bushing

$3.99

$

In Stock, Qty 20+

0

11

Gravely 21539100

Fitting, Tank (075, 076, 318, 319)

Note: (075, 076, 318, 319)

$15.99

$

Usually ships in 4-12 days

0

11

Gravely 21539200

Fitting, Tank (073, 074)

Note: (073, 074)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 21537200

Fitting, Tank (075, 076, 318, 319)

Note: (075, 076, 318, 319)

$21.99

$

Usually ships in 4-12 days

0
