992076 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 - 000499) Fuel Tanks And Hoses - Diesel Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

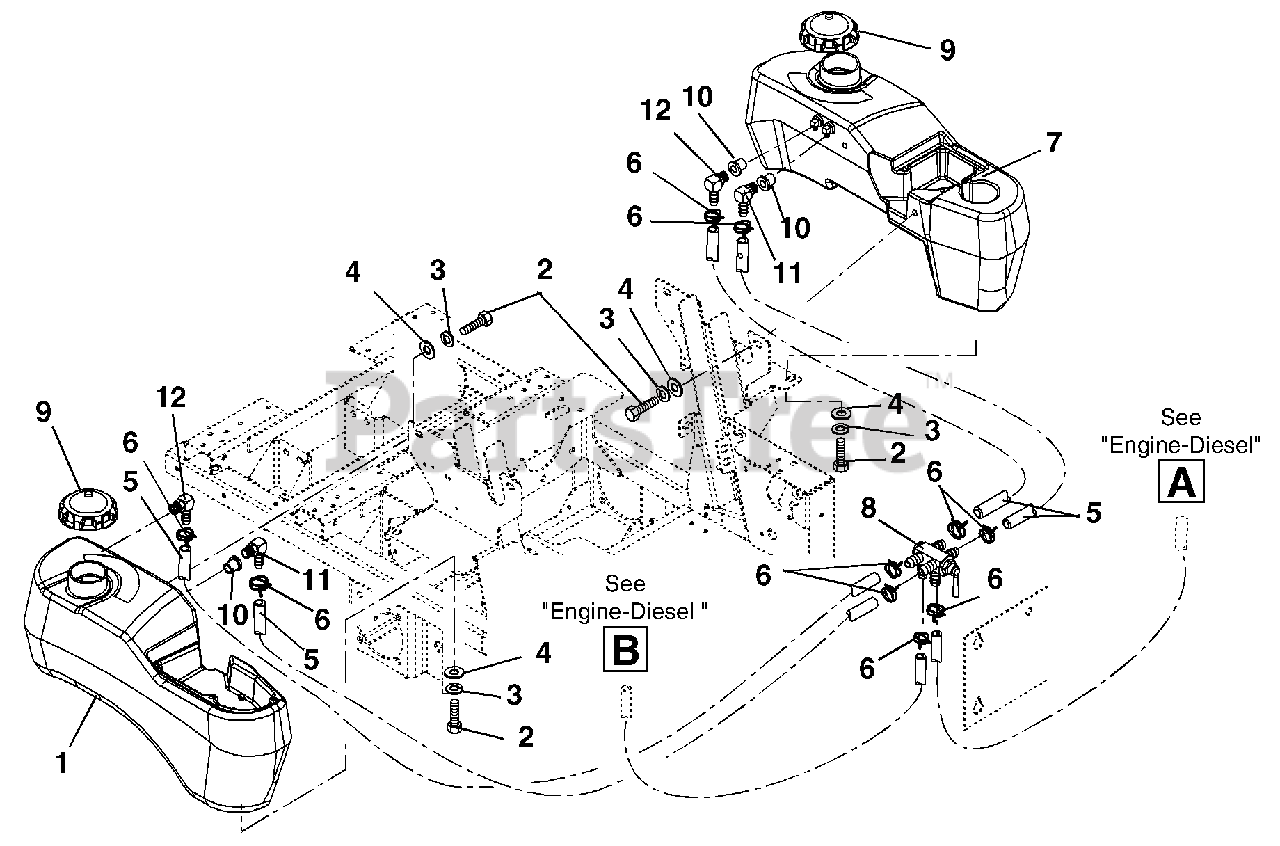

Fuel Tanks And Hoses - Diesel Parts Diagram

  • Title

1

Gravely 09290900

TANK, FUEL-RH(W/RTN)W/O HOSE
(Superseded to 04004800)

Note: (075, 076, 318, 319)

$

$

Not available

Gravely 09290700

TANK, FUEL - RH W/O HOSE
(Superseded to 03963300)

Note: (073, 074)

$523.99

$

Usually ships in 4-12 days

0

2

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 048544

HOSE,5/16 ID
(Superseded to 00922600)

Note: (075, 076, 318, 319)

$

$

Not available

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

Note: (073, 074)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06947900

CLAMP, HOSE WIRE .520/.550

Note: (075, 076, 318, 319)

$4.99

$

Usually ships in 4-12 days

0

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

Note: (073, 074)

$4.99

$

In Stock, Qty 20+

0

7

Gravely 00199100

TANK, FUEL-LH(W/RTN)W/O HOSE
(Superseded to 04007000)

Note: (EYE-Q) 200 Series-EFI (075, 076, 318, 319)

$

$

Not available

Gravely 00191200

TANK, LH FUEL-200 S. W/O HOSE

Note: (EYE-Q) 200 Series (073, 074)

$440.99

$

Usually ships in 4-12 days

0

8

Gravely 09289600

VALVE, FUEL

Note: (075, 076, 318, 319)

$90.99

$

In Stock, only 1 left!

0

Gravely 09258200

VALVE, FUEL

Note: (073, 074)

$51.99

$

In Stock, Qty 9

0

9

Gravely 09269100

CAP, FUEL

Note: (075, 076, 318, 319)

$36.99

$

Usually ships in 4-12 days

0

Gravely 09239500

CAP - FUEL
(Superseded to 03859100)

Note: (073, 074)

$30.99

$

In Stock, Qty 13

0

10

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

$4.99

$

In Stock, Qty 20+

0

11

Gravely 21539100

FITTING, TANK ELBOW .31 HOSE

Note: (075, 076, 318, 319)

$15.99

$

In Stock, only 2 left!

0

Gravely 21539200

FITTING, TANK ELBOW .25 HOSE

Note: (073, 074)

$15.99

$

In Stock, only 1 left!

0

12

Gravely 21537200

FITTING, TANK (5/16 ELBOW)

Note: (075, 076, 318, 319)

$21.99

$

Usually ships in 4-12 days

0
