992076 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000500 - 001500) Rollers Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

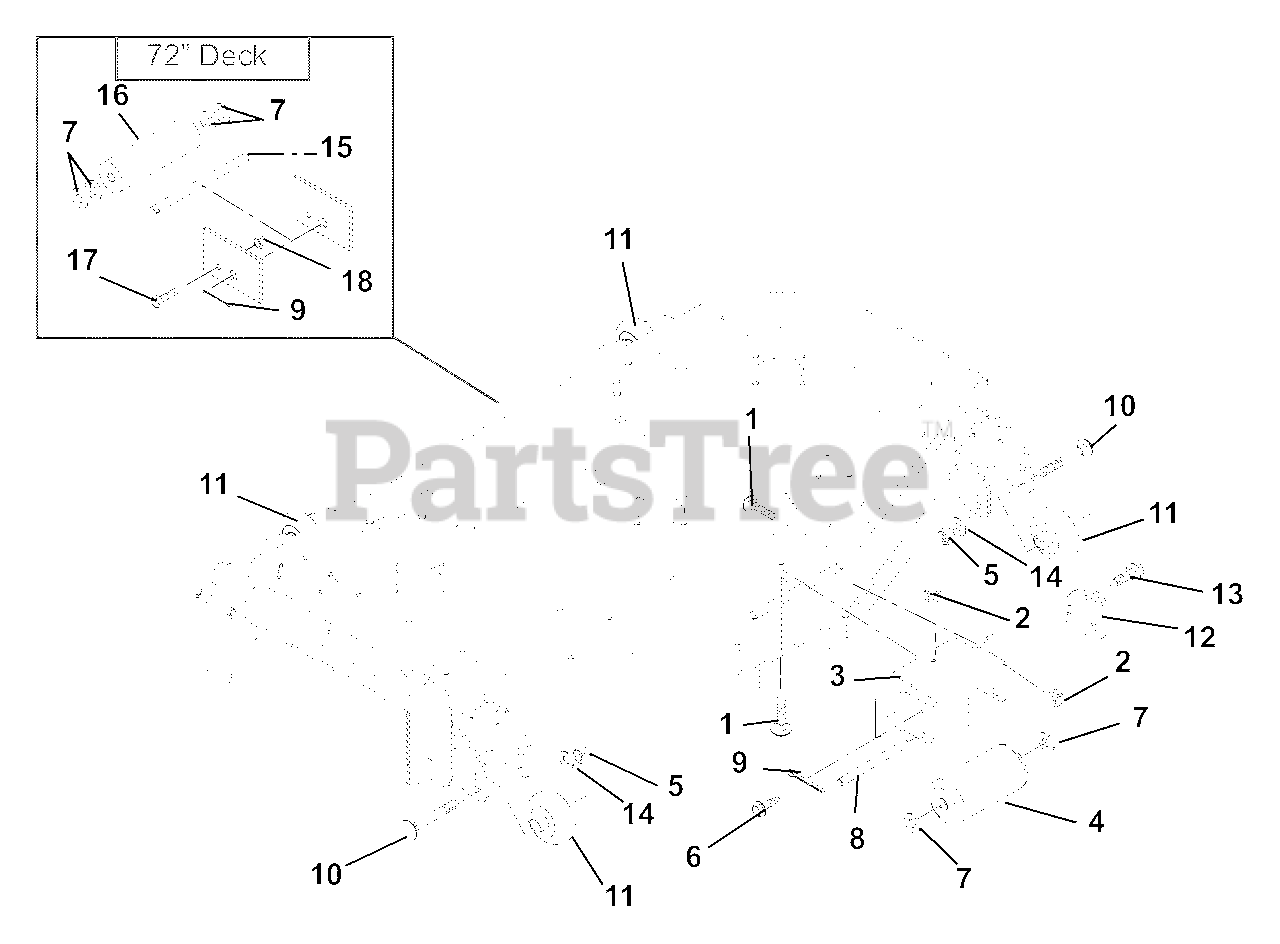

Rollers Parts Diagram

  • Title

1

Gravely 06223600

Bolt-Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

2

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 04920853

Bracket- Anti-Scalp Roller

$127.99

$

Usually ships in 4-12 days

0

4

Gravely 09078100

Roller

$48.99

$

In Stock, Qty 6

0

5

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 07414200

Screw-Tapping .25-20 x .75 Hex Washer Head
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

7

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095 (073, 075, 318, 319)
(Superseded to 06401118)

Note: (073, 075, 318, 319)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06442800

Washer-Flat-Steel .656 x 1.31 x .095 (074, 076)
(Superseded to 06401118)

Note: (074, 076)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 09288400

Pin

$56.99

$

In Stock, only 3 left!

0

9

Gravely 06713100

Pin-Cotter .25 x 2.00 (073, 075, 318, 319)
(Superseded to 06700213)

Note: (073, 075, 318, 319)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 06713100

Pin-Cotter .25 x 2.00 (074, 076)
(Superseded to 06700213)

Note: (074, 076)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00 Grade 2
(Superseded to 06200505)

$

$

Not available

11

Gravely 09253700

Wheel, 3 x 5

$15.99

$

In Stock, Qty 20+

0

12

Gravely 09290353

Anti-Scalp Washer

$13.99

$

Usually ships in 4-12 days

0

13

Gravely 07401900

Screw-Tapping .25-20 x .62 Hex Washer Head
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

14

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 024795

Shaft, Center Roller (074, 076)
(Superseded to 08598800)

Note: (074, 076)

$61.99

$

In Stock, only 1 left!

0

16

Gravely 031390

Roller, Gage (074, 076)
(Superseded to 08803300)

Note: (074, 076)

$38.99

$

In Stock, only 2 left!

0

17

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5 (074, 076)
(Superseded to 05901716)

Note: (074, 076)

$1.49

$

In Stock, Qty 12

0

18

Gravely 06529700

Nut-Locking-Center .25-20 (074, 076)
(Superseded to 06500812)

Note: (074, 076)

$0.99

$

In Stock, Qty 20+

0
