992076 (PM 272Z) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 001501 & Above) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

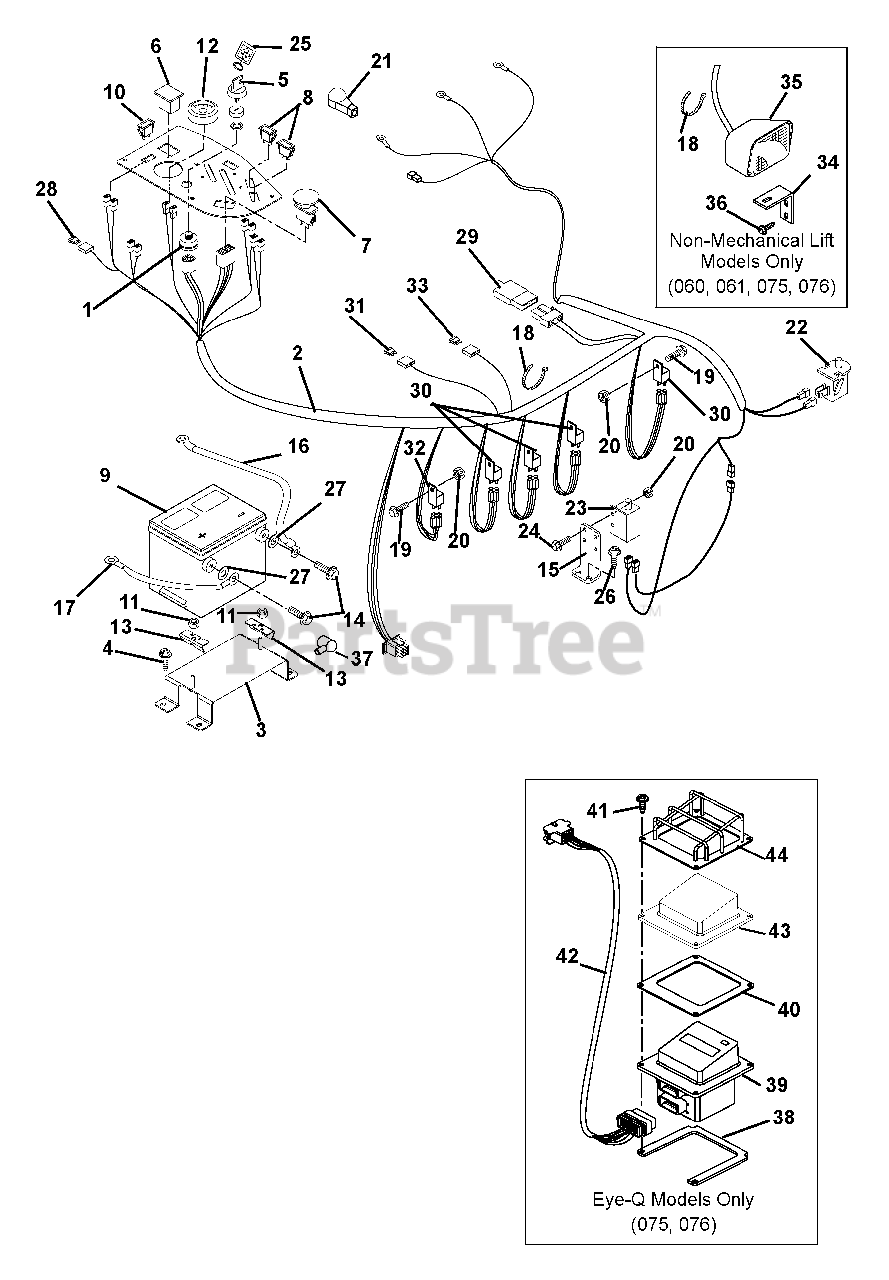

Electrical System Parts Diagram

  • Title

1

Gravely 00168400

SWITCH, IGNITION (DIESEL)

Note: (Diesel)

$60.99

$

In Stock, only 4 left!

0

2

Gravely 00360500

HARNESS, HORZ. L/C(DIESEL)

Note: (Diesel)

$

$

Not available

3

Gravely 09266551

WMT, BATTERY SUPPORT

$

$

Not available

4

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 09287000

KEY, W/ SHIELD

$10.99

$

In Stock, Qty 20+

0

Gravely 21510400

IGNITION KEY SET

$11.99

$

In Stock, only 1 left!

0

6

Gravely 00539300

PLUG, HOUR METER

Note: (075, 076)

$10.99

$

Usually ships in 4-12 days

0

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

Note: (060, 061)

$66.99

$

Usually ships in 4-12 days

0

7

Gravely 01545600

SWITCH, CLUTCH

$28.99

$

In Stock, Qty 20+

0

8

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$8.49

$

In Stock, Qty 7

0

9

Gravely 00525500

BATTERY, GROUP 70 450 CCA 35 A

$

$

Not available

10

Gravely 08973300

SWITCH, 2 POLE/ROCKER

Note: (060, 061, 075, 076)

$7.99

$

In Stock, Qty 5

0

Gravely 09003300

SWITCH,BLANK

Note: (090)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 09080200

GAUGE, TEMPERATURE

$107.99

$

Usually ships in 4-12 days

0

13

Gravely 09266600

BRKT, BATTERY HOLD-DOWN

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Gravely 09275851

MOUNT, SAFETY SWITCH

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 09412100

CABLE, POS BATT 4 GA X 45

$39.99

$

Usually ships in 4-12 days

0

17

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, only 4 left!

0

20

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07533200

BOOT, EYELET TERMINAL

$4.99

$

In Stock, Qty 11

0

22

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (Included with Seat)

$10.99

$

In Stock, Qty 19

0

23

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$10.99

$

In Stock, Qty 13

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, only 4 left!

0

25

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

26

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

28

Gravely 21542100

FUSE, ATO 15 AMP

$

$

Not available

29

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$14.99

$

In Stock, Qty 20+

0

30

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$27.99

$

In Stock, Qty 20+

0

31

Gravely 21542000

FUSE, ATO 30 AMP
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

32

Pre-Heat Timer

Note: (Included with Engine)

$

$

Not available

33

Gravely 21542200

FUSE, ATO 60 AMP
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

34

Gravely 09287551

BRACKET, HEADLIGHT MTG

$19.99

$

Usually ships in 4-12 days

0

35

Gravely 02463600

HEADLIGHT

$89.99

$

Usually ships in 4-12 days

0

36

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

37

Gravely 07533200

BOOT, EYELET TERMINAL

$4.99

$

In Stock, Qty 11

0

38

Gravely 00252251

SPACER, ENCLOSURE MTG. (BTM)

Note: (075, 076)

$27.99

$

Usually ships in 4-12 days

0

39

Gravely 00251600

ASSY, EYE-Q

Note: (075, 076)

$

$

Not available

40

Gravely 05600006

GASKET-EYE Q

Note: (075, 076)

$

$

Not available

41

Gravely 06100002

SCR-MCH 10-24X1.0 SL PAN BLACK

Note: (075, 076)

$4.99

$

Usually ships in 4-12 days

0

42

Gravely 00288900

HARNESS, EYE-Q
(Superseded to 03286100)

Note: (075, 076)

$

$

Not available

43

Gravely 00353900

GUARD, ELEMENT

Note: (075, 076)

$

$

Not available

44

Gravely 00270300

GUARD, VINYL EYE-Q
(Superseded to 00266251)

Note: (075, 076)

$

$

Not available
