992078 (PM 148Z) - Gravely Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki (SN: 000101 - 000499) Engine And Clutch Parts Diagram

Pro-Master 48" Zero-Turn Mower, 21hp Kawasaki

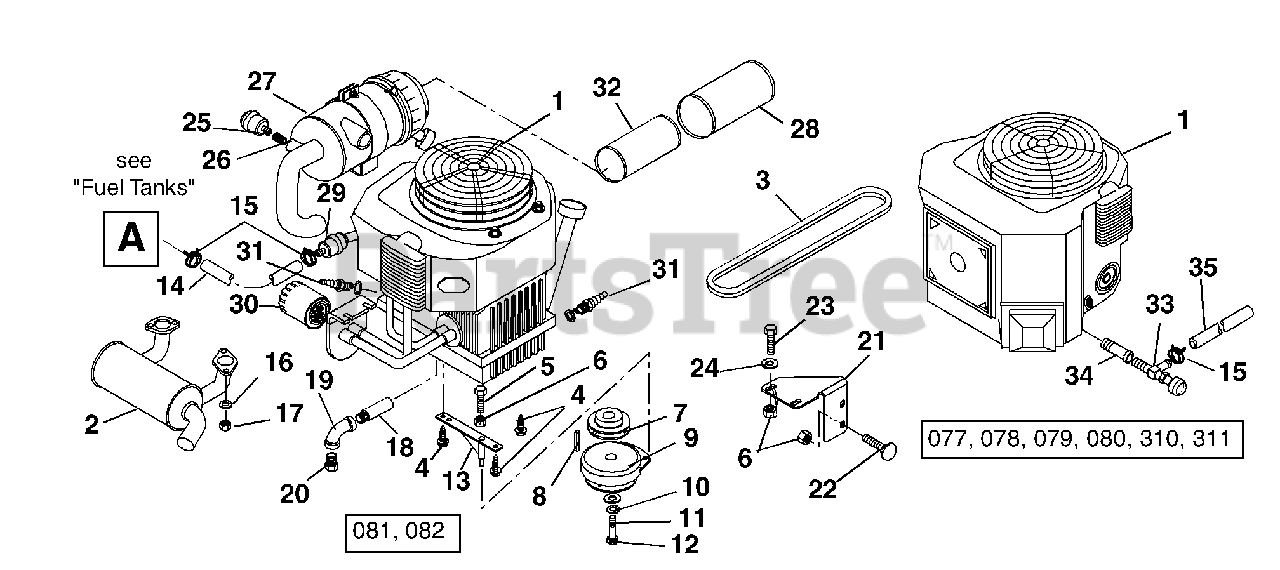

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08270000

Engine, Kohler, 25HP (081, 082)

Note: (081, 082)

$

$

Not available

1

Gravely 08268800

Engine, Kawasaki 19HP (077, 310)

Note: (077, 310)

$

$

Not available

1

Gravely 08268000

Engine, Kawasaki 21HP (078, 311)

Note: (078, 311)

$

$

Not available

1

Gravely 08268900

Engine, Kawasaki 23HP (079, 080)

Note: (079, 080)

$

$

Not available

2

Gravely 09294800

Muffler, Kohler (081, 082)
(Superseded to 00470400)

Note: (081, 082)

$218.99

$

In Stock, only 3 left!

0

2

Gravely 09281600

Muffler,

Note: Kawasaki (077, 078, 079, 080, 310, 311)

$298.99

$

Usually ships in 4-12 days

0

3

Gravely 07218000

V-Belt HA 52 x .535 G48667
(Superseded to 07200428)

$53.99

$

In Stock, Qty 16

0

4

Gravely 07414100

Screw, Tapping Hex Washer Head .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18 (081, 082)
(Superseded to 06500904)

Note: (081, 082)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06543100

Nut, Locking Top Flang,e .31-18 (077, 078, 079, 080, 310, 311)
(Superseded to 06500904)

Note: (077, 078, 079, 080, 310, 311)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07327700

Pulley-V 4.00 x 1.125 with Key 1.42 Height

$76.99

$

In Stock, Qty 7

0

8

Gravely 039160

Key, Square .25 x .625 x .25 SAE 8630 OR SAE 1035
(Superseded to 06602700)

$3.99

$

In Stock, Qty 10

0

9

Gravely 09232700

Clutch, Electric
(Superseded to 00389900)

$504.99

$

Usually ships in 4-12 days

0

10

Gravely 06445000

Washer, Flat Steel .515 x 1.625 x .25

$6.49

$

In Stock, Qty 20+

0

11

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 3 left!

0

12

Gravely 05964600

Bolt, Hex .44-20 x 2.50 Grade 5
(Superseded to 05902017)

$2.99

$

In Stock, only 2 left!

0

13

Gravely 09282300

Weldment, Clutch Anchor

$92.99

$

Usually ships in 4-12 days

0

14

Gravely 021134

Gas Line, Bulk .25 ID
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06939100

Hose, Clamp

$3.99

$

In Stock, Qty 7

0

16

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

Note: (Included with item 1)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06538600

Nut, Hex M8-1.25

Note: (Included with item 1)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 02749600

Nipple (081, 082)

Note: (081, 082)

$9.99

$

Usually ships in 4-12 days

0

19

Gravely 07023500

Elbow .375-18 (081, 082)

Note: (081, 082)

$

$

Not available

20

Gravely 00113800

Pipe Plug (081, 082)

Note: (081, 082)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 09295751

Bracket, Oil Filter Mounting-Kohler (081, 082)

Note: (081, 082)

$

$

Not available

22

Gravely 06212200

Bolt, Round Head Square Neck .31-18 x .62 (081, 082)
(Superseded to 06200333)

Note: (081, 082)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5 (081, 082)
(Superseded to 05901701)

Note: (081, 082)

$1.99

$

In Stock, only 4 left!

0

24

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083 (081, 082)
(Superseded to 06401023)

Note: (081, 082)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 09258800

Filter Minder (081, 082)

Note: (081, 082)

$

$

Not available

26

Gravely 07065800

Nipple, .125 NPT (081, 082)

Note: (081, 082)

$

$

Not available

27

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

28

Gravely 21537000

Filter, Outer Element

$28.99

$

In Stock, Qty 20+

0

29

Gravely 21539500

Fuel Filter, Kohler (081, 082)

Note: (081, 082)

$12.99

$

In Stock, Qty 20+

0

29

Gravely 21410800

Fuel Filter, Kawasaki (077, 078, 079, 080, 310, 311)
(Superseded to 21541500)

Note: (077, 078, 079, 080, 310, 311)

$8.99

$

In Stock, Qty 20+

0

30

Gravely 21397200

Oil Filter, Kohler (081, 082)
(Superseded to 20715100)

Note: (081, 082)

$21.99

$

In Stock, Qty 20+

0

30

Gravely 21535800

Oil Filter, Kawasaki (077, 078, 079, 080, 310, 311)
(Superseded to 49065-0724)

Note: (077, 078, 079, 080, 310, 311)

$18.99

$

In Stock, Qty 20+

0

31

Gravely 21525900

Spark Plug, Kohler (081, 082)
(Superseded to 21541700)

Note: (081, 082)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 21536100

Spark Plug, Kawasaki (077, 078, 079, 080, 310, 311)

Note: (077, 078, 079, 080, 310, 311)

$3.99

$

In Stock, Qty 20+

0

32

Gravely 21536900

Filter, Inner Element

$29.99

$

In Stock, only 4 left!

0

33

Gravely 035329

Cock, Oil Drain (077, 078, 079, 310, 311)
(Superseded to 00429000)

Note: (077, 078, 079, 310, 311)

$40.99

$

Usually ships in 4-12 days

0

34

Gravely 035328

Adapter, Oil Drain (077, 078, 079, 310, 311)
(Superseded to 03493100)

Note: (077, 078, 079, 310, 311)

$6.49

$

Usually ships in 4-12 days

0

35

Gravely 021134

Gas Line, Bulk .25" ID (077, 078, 079, 310, 311)
(Superseded to 03278100)

Note: (077, 078, 079, 310, 311)

$1.49

$

In Stock, Qty 20+

0
