992080 (PM 160Z) - Gravely Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 000499) Deck Lift And Motors To Pump Circuits Parts Diagram

Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki

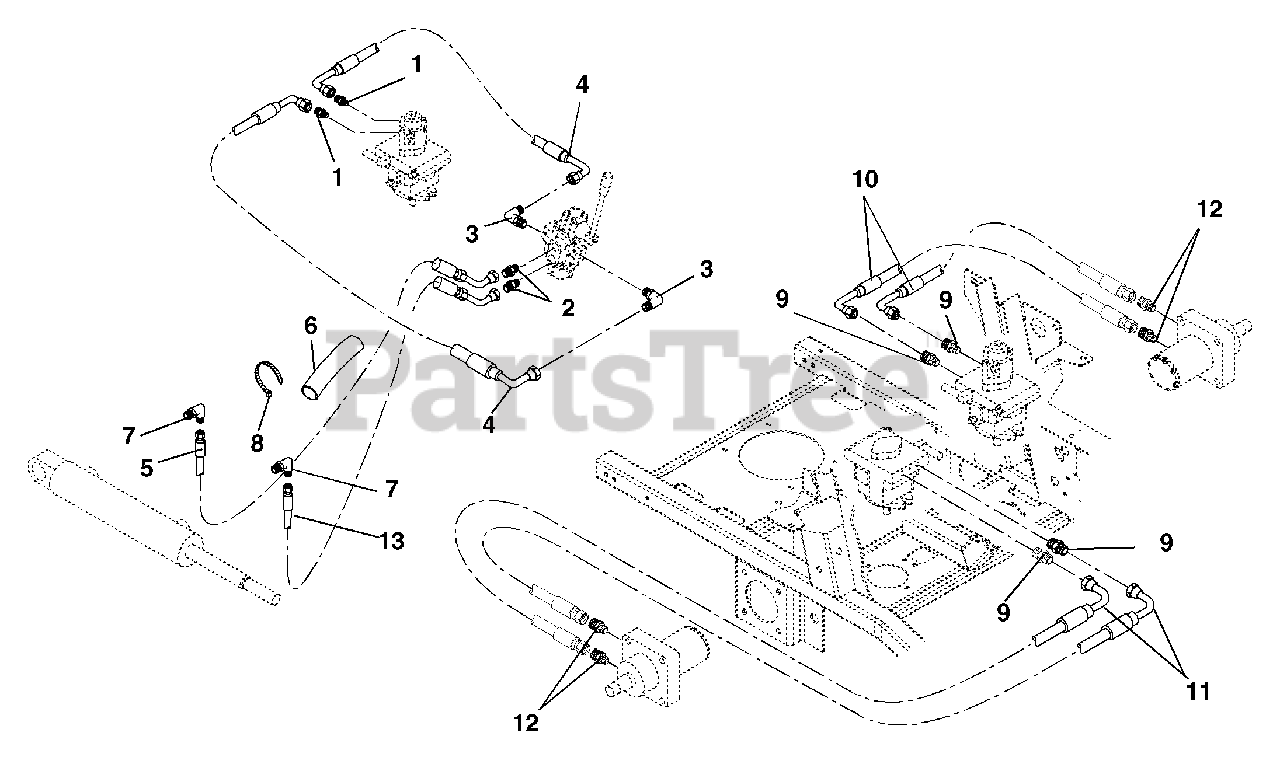

Deck Lift And Motors To Pump Circuits Parts Diagram

  • Title

1

Gravely 07063700

FITTING, HYD (4 F5OLO)

$

$

Not available

2

Gravely 07063800

FITTING, HYD (4-6 F5OLO)

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 07067500

FTG, HYD ELBOW M4F-M8O

$18.99

$

Usually ships in 4-12 days

0

4

Gravely 09283600

HOSE,HYD .25-17-2K F04F9-F04F9

$138.99

$

Usually ships in 4-12 days

0

5

Gravely 09275600

HOSE,HYD .25-47-2K F04F0-F04F4

$155.99

$

Usually ships in 4-12 days

0

6

Gravely 09249400

SLEEVE, PROTECTIVE

$12.99

$

Usually ships in 4-12 days

0

7

Gravely 07063900

FITTING, HYD (4 C5OLO)

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$10.99

$

In Stock, only 2 left!

0

10

Gravely 09281800

HOSE,HYD .50-19-2K F08F9-F08F9

$206.99

$

Usually ships in 4-12 days

0

11

Gravely 09281700

HOSE,HYD .50-20-2K F08F0-F08F0

$192.99

$

In Stock, only 1 left!

0

12

Gravely 07062100

FTG, HYD STR M10O-M8F

$15.99

$

In Stock, only 2 left!

0

13

Gravely 09275400

HOSE,HYD.25-42-2K F04F0-F04F4

$146.99

$

Usually ships in 4-12 days

0
