992080 (PM 160Z) - Gravely Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 000499) Fuel Tanks And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki

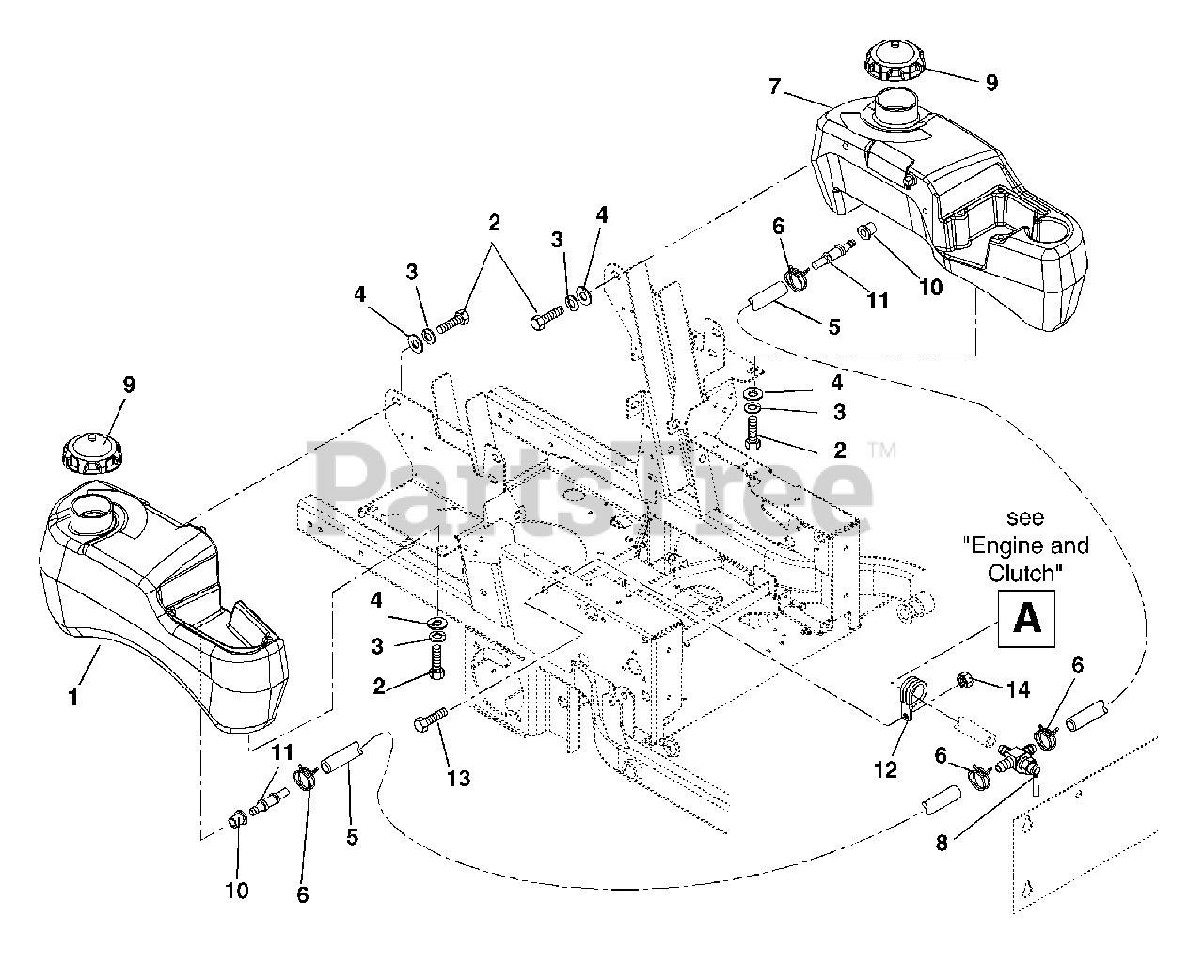

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09281500

TANK, GAS - RH W/O HOSE
(Superseded to 04320900)

$43.99

$

In Stock, Qty 15

0

2

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$4.99

$

In Stock, Qty 20+

0

7

Gravely 00191100

TANK, LH FUEL 100 S. W/O HOSE

Note: (EYE-Q) 100 Series

$305.99

$

Usually ships in 4-12 days

0

8

Gravely 09258200

VALVE, FUEL

$51.99

$

In Stock, Qty 9

0

9

Gravely 09239500

CAP - FUEL
(Superseded to 03859100)

$30.99

$

In Stock, Qty 13

0

10

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$4.99

$

In Stock, Qty 20+

0

11

Gravely 07064500

FITTING, TANK

$13.99

$

In Stock, only 2 left!

0

12

Gravely 06918200

CLAMP, CUSHIONED STEEL

Note: (081, 082)

$

$

Not available

13

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (081, 082)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (081, 082)

$1.99

$

In Stock, Qty 20+

0
