992080 (PM 160Z) - Gravely Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki (SN: 000101 - 000499) Motors And Wheels Parts Diagram

Pro-Master 60" Zero-Turn Mower, 23hp Kawasaki

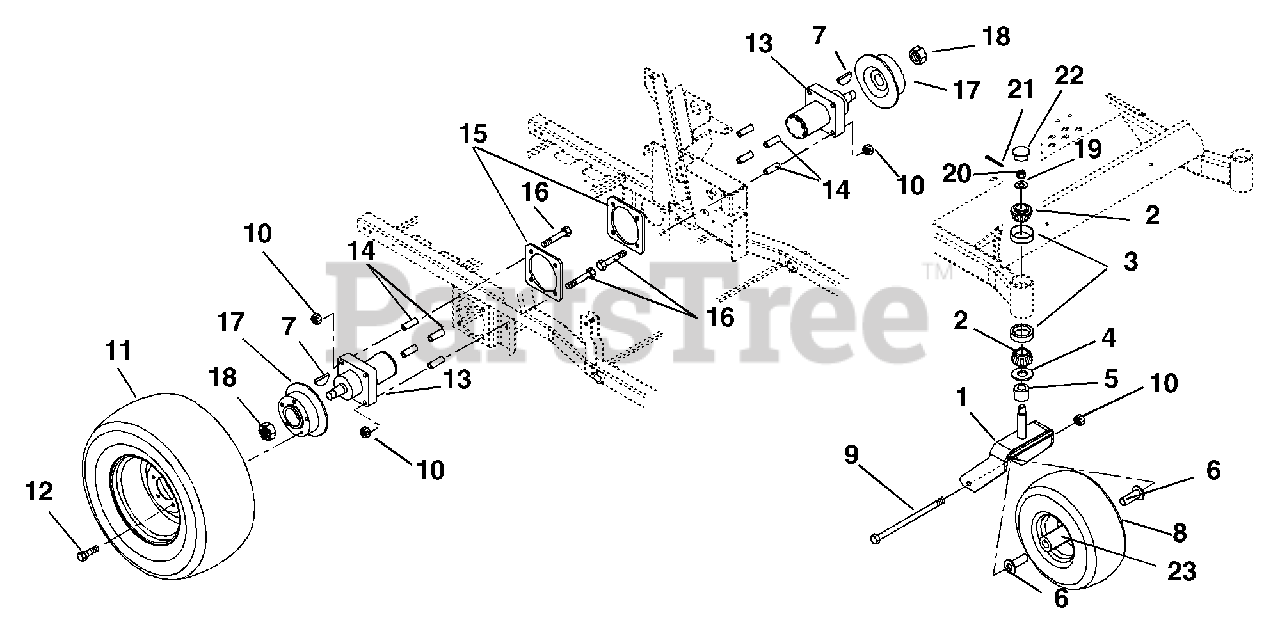

Motors And Wheels Parts Diagram

  • Title

1

Gravely 09282451

FORK - BLACK
(Superseded to 59208600)

$173.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$21.99

$

In Stock, Qty 20+

0

3

Gravely 038109

BRG-CUP1.980X.420
(Superseded to 05407000)

$19.99

$

In Stock, Qty 19

0

4

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$11.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

SPACER 1.005X1.5075X.375

$9.49

$

In Stock, Qty 14

0

6

Gravely 00160900

SPACER, WHEEL

$41.99

$

Usually ships in 4-12 days

0

7

Gravely 117977

KEY-WDRF .31X1.00 SFT #B
(Superseded to 06607800)

Note: (Included with 13)

$5.49

$

Usually ships in 4-12 days

0

8

Gravely 07147800

WHEEL/TIRE ASM
(Superseded to 59219000)

$206.99

$

In Stock, only 1 left!

0

Gravely 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$79.99

$

In Stock, only 1 left!

0

9

Gravely 05961200

BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

10

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07152300

TIRE/WHEEL ASSY, 23X10.50-12
(Superseded to 59101000)

Note: (080, 081, 082)

$311.99

$

Usually ships in 4-12 days

0

Gravely 07149000

TIRE 23X10.50-12 MULTITRAC C/S

Note: (078, 079, 080, 081, 082, 311)

$

$

Not available

Gravely 07148900

WHL/TIRE 23X10.50-12 MULTITRAC
(Superseded to 07101116)

Note: (078, 079, 081, 311)

$333.99

$

Usually ships in 4-12 days

0

Gravely 07159400

WHL/TIRE 23X9.50-12 MULTITRAC
(Superseded to 07101116)

Note: (077, 310)

$333.99

$

Usually ships in 4-12 days

0

Gravely 07159500

TIRE, 23X9.50-12 MULTITRAC
(Superseded to 07149000)

Note: (077, 310)

$

$

Not available

12

Gravely 07067700

BLT, LUG .50-20 X 1.38
(Superseded to 07000143)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 09262800

WHEEL MOTOR, MB15

Note: (includes 18 & 7)

$964.99

$

Usually ships in 4-12 days

0

14

Gravely 05531400

BSHG-SLV .513X.748X2.129

$14.99

$

Usually ships in 4-12 days

0

15

Gravely 09278500

PLATE, MOTOR SUPPORT

$

$

Not available

16

Gravely 07067300

BOLT, WHEEL MOTOR 1/2-13X5.00

$7.99

$

Usually ships in 4-12 days

0

17

Gravely 09247100

HUB & DISK (PARK) 8" 1/2 HOLE

$318.99

$

Usually ships in 4-12 days

0

18

Gravely 06541900

NUT-LK-JAM-PTCH 1.00-20

Note: (Included with 13)

$34.99

$

Usually ships in 4-12 days

0

19

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$4.99

$

In Stock, Qty 20+

0

20

Gravely 00595500

NUT, SLOTTED .75-16

$4.99

$

In Stock, Qty 5

0

21

Gravely 06712300

PIN-CTR .16X1.00 EXTPRSQCT YZ

$2.99

$

In Stock, Qty 12

0

22

Gravely 038919

CAP,DUST
(Superseded to 20655400)

$11.99

$

In Stock, Qty 20+

0

23

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$26.99

$

In Stock, Qty 20+

0
