992081 (PM 152Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Deck, Discharge Chute And Baffles Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

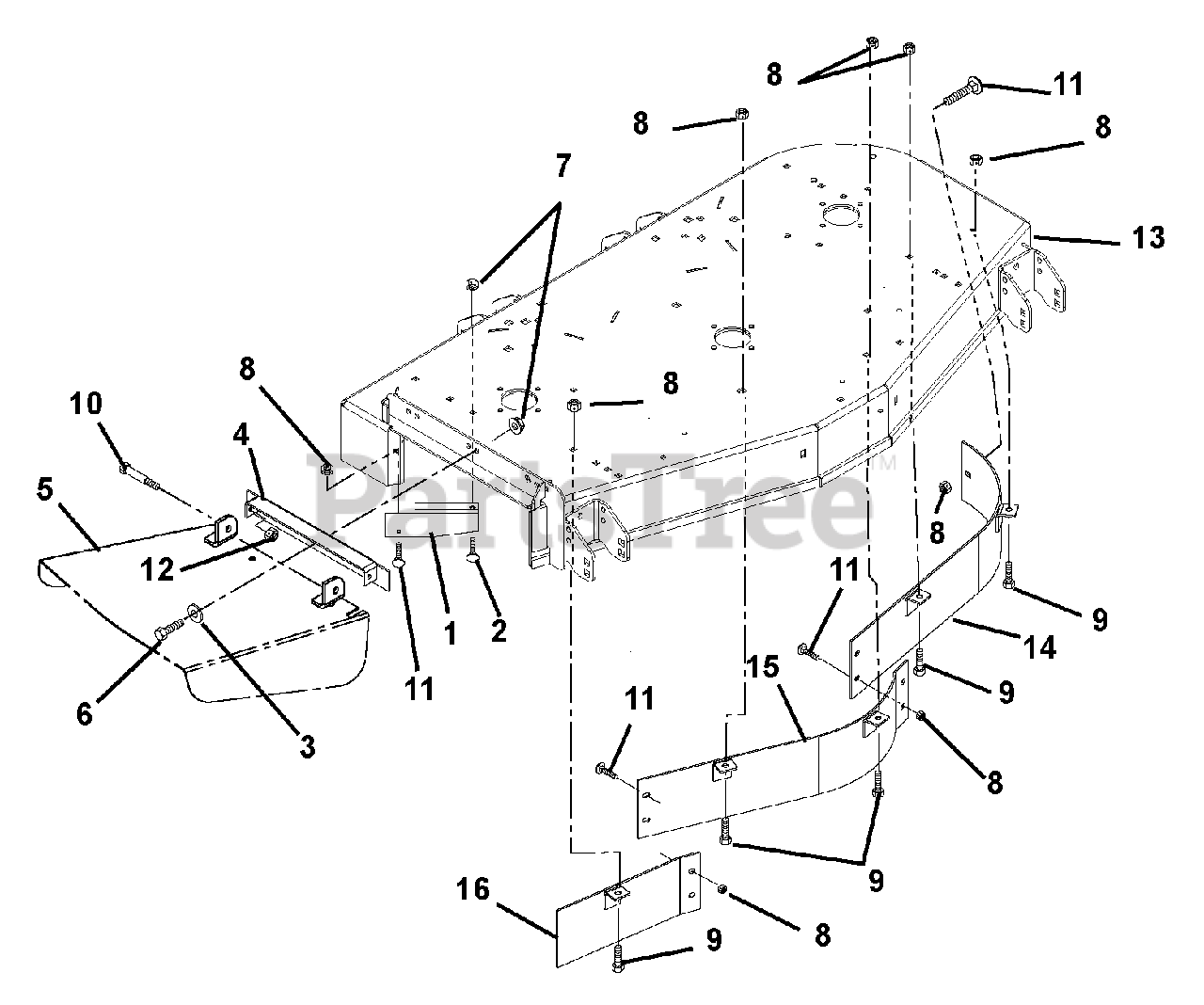

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 04921951

DEFLECTOR - 52"/34"
(Superseded to 04921953)

Note: (992044, 054, 079, 081, 094, 096)

$30.99

$

Usually ships in 4-12 days

0

Gravely 09238451

DEFLECTOR, 60" (BLACK)

Note: (992051, 055, 080, 082, 095, 097)

$28.99

$

In Stock, only 2 left!

0

Gravely 04939851

DEFLECTOR - 44"/48"
(Superseded to 04939853)

Note: (992042, 043, 064, 077, 078, 083, 092, 093, 310)

$59.99

$

Usually ships in 4-12 days

0

2

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (992042, 043, 044, 054, 064, 077, 078, 079, 081, 083, 092, 093, 094,096, 310, 311)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09286753

WMT, DISCHARGE CHUTE BRACKET

Note: (992042, 043, 044, 054, 064, 077, 078, 079, 081, 083, 092, 093,094, 096, 310, 311)

$153.99

$

Usually ships in 4-12 days

0

Gravely 00253253

WMT, CHUTE BRKT

Note: (992051, 055, 080, 082, 095, 097)

$92.99

$

Usually ships in 4-12 days

0

5

Gravely 09286153

DISCHARGE CHUTE (INT Z) - RED

Note: (992310, 311)

$191.99

$

Usually ships in 4-12 days

0

Gravely 00198253

WMT, 60" DISCHARGE CHUTE

Note: (992051, 055, 080, 082, 095, 097)

$233.99

$

Usually ships in 4-12 days

0

Gravely 00252953

WMT, DISCHARGE CHUTE 44-52

Note: (992042, 043, 044, 054, 064, 077, 078, 079, 081, 083, 092, 093, 094, 096)

$191.99

$

Usually ships in 4-12 days

0

6

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$6.49

$

In Stock, only 2 left!

0

11

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 09284453

WMT - 52" MOWER DECK
(Superseded to 59225400)

Note: (992044, 054, 079, 081, 094, 096)

$921.99

$

Usually ships in 4-12 days

0

Gravely 09288253

60" 7 GA MOWER DECK - RED
(Superseded to 59228200)

Note: (992051, 055, 080, 082, 095, 097)

$1793.99

$

Usually ships in 4-12 days

0

Gravely 04940253

WMT - 44" MOWER DECK - FLOAT
(Superseded to 59225300)

Note: (992042, 064, 077, 083, 092, 310)

$790.99

$

Usually ships in 4-12 days

0

Gravely 09283853

WMT - 48" MOWER DECK

Note: (992043, 078, 093, 311)

$1044.99

$

Usually ships in 4-12 days

0

14

Gravely 04921651

BAFFLE - LEFT FRONT - 52"
(Superseded to 04921653)

Note: (992044, 054, 079, 081, 094, 096)

$58.99

$

In Stock, only 2 left!

0

Gravely 09241651

BAFFLE - LEFT FRONT - 60"

Note: (992051, 055, 080, 082, 095, 097)

$112.99

$

In Stock, only 2 left!

0

Gravely 04938951

BAFFLE - LEFT FRONT - 44"

Note: (992042, 064, 077, 083, 092, 310)

$96.99

$

Usually ships in 4-12 days

0

Gravely 04918951

BAFFLE - LEFT FRONT - 48"
(Superseded to 04918953)

Note: (992043, 078, 093, 311)

$77.99

$

Usually ships in 4-12 days

0

15

Gravely 04921751

BAFFLE - CENTER FRONT - 52"

Note: (992044, 054, 079, 081, 094, 096)

$75.99

$

Usually ships in 4-12 days

0

Gravely 09241751

BAFFLE - CENTER FRONT - 60"

Note: (992051, 055, 080, 082, 095, 097)

$102.99

$

In Stock, Qty 5

0

Gravely 04939051

BAFFLE - CENTER FRONT - 44"

Note: (992042, 064, 077, 083, 092, 310)

$159.99

$

Usually ships in 4-12 days

0

Gravely 04919051

BAFFLE - CENTER FRONT - 48"
(Superseded to 04919053)

Note: (992043, 078, 093, 311)

$62.99

$

Usually ships in 4-12 days

0

16

Gravely 04921851

BAFFLE - RIGHT FRONT - 52"
(Superseded to 04921853)

Note: (992044, 054, 079, 081, 094, 096)

$40.99

$

Usually ships in 4-12 days

0

Gravely 09241851

BAFFLE - RIGHT FRONT - 60"

Note: (992051, 055, 080, 082, 095, 097)

$58.99

$

In Stock, Qty 8

0

Gravely 04939151

BAFFLE - RIGHT FRONT - 44"

Note: (992042, 064, 077, 083, 092, 310)

$103.99

$

Usually ships in 4-12 days

0

Gravely 04919651

BAFFLE - RIGHT FRONT - 48"
(Superseded to 04919653)

Note: (992043, 078, 093, 311)

$35.99

$

In Stock, only 2 left!

0
