992081 (PM 152Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Deck Lift Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

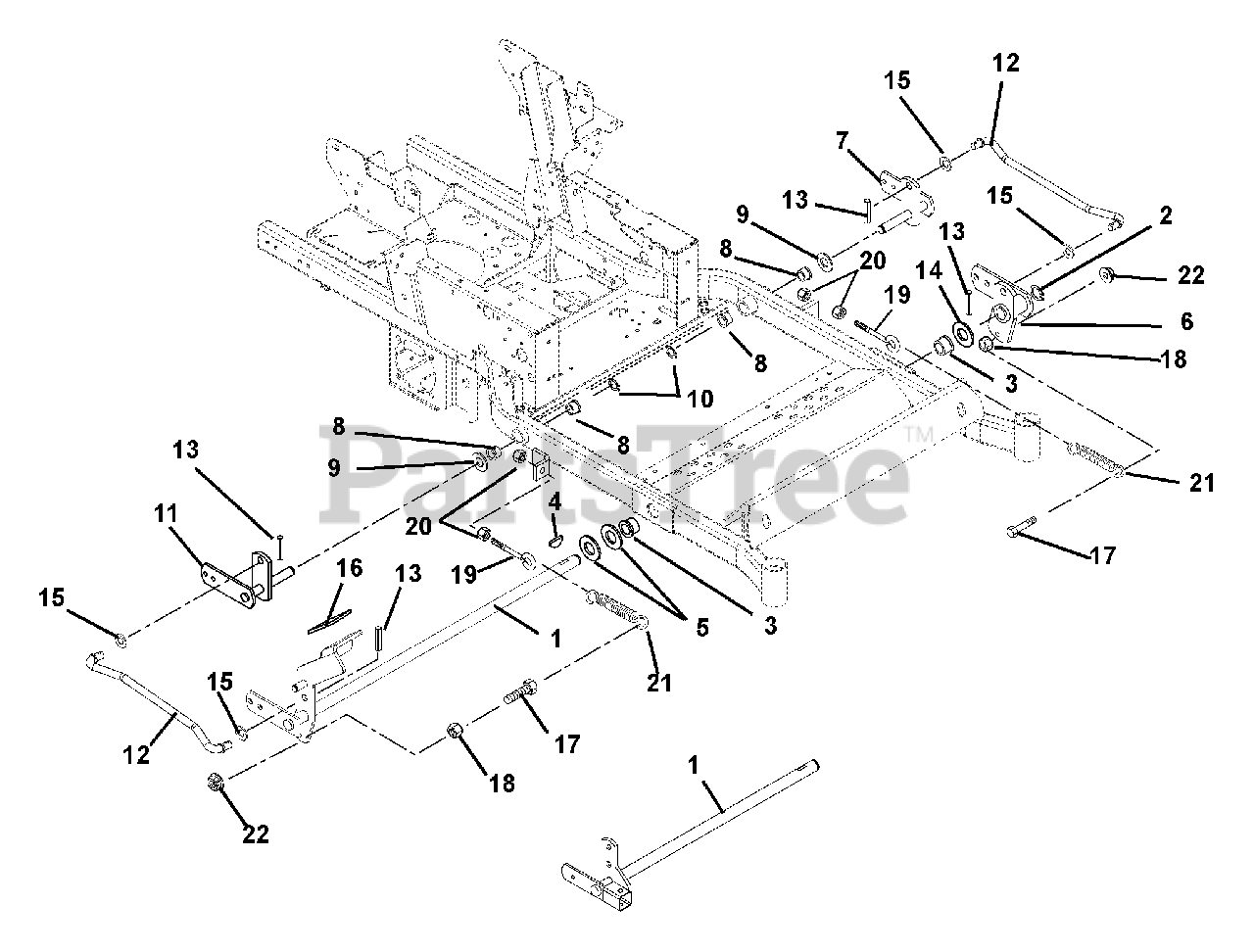

Deck Lift Parts Diagram

  • Title

1

Gravely 09289700

MOWER LIFT

Note: (992042, 043, 044, 051, 054, 055, 077, 078, 079, 080, 081, 082, 310, 311)

$303.99

$

Usually ships in 4-12 days

0

Gravely 00378600

WMT, FOOT OP FRNT MOWER LIFT

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$

$

Not available

2

Gravely 050203

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.49

$

In Stock, Qty 9

0

3

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

4

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

5

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 09289800

WMT, FRONT MOWER LIFT-LH

$184.99

$

Usually ships in 4-12 days

0

7

Gravely 09290000

WMT, REAR LIFT ARM -LH

$127.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

9

Gravely 036407

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$2.99

$

In Stock, only 1 left!

0

11

Gravely 09289900

WMT, REAR LIFT ARM - RH

$

$

Not available

12

Gravely 00164700

ROD, LIFT ASSIST 16.35"
(Superseded to 04063000)

$42.99

$

Usually ships in 4-12 days

0

13

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$3.49

$

In Stock, only 1 left!

0

14

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.49

$

In Stock, Qty 8

0

15

Gravely 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.99

$

In Stock, only 1 left!

0

16

Gravely 00270100

GRIP, PEDAL 1.50 X 3.00

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$1.99

$

In Stock, Qty 17

0

18

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$8.49

$

In Stock, Qty 6

0

20

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 035913

SG-TENS .162X1.25X8.25 WLD 25
(Superseded to 08319000)

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$34.99

$

In Stock, Qty 20+

0

22

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
