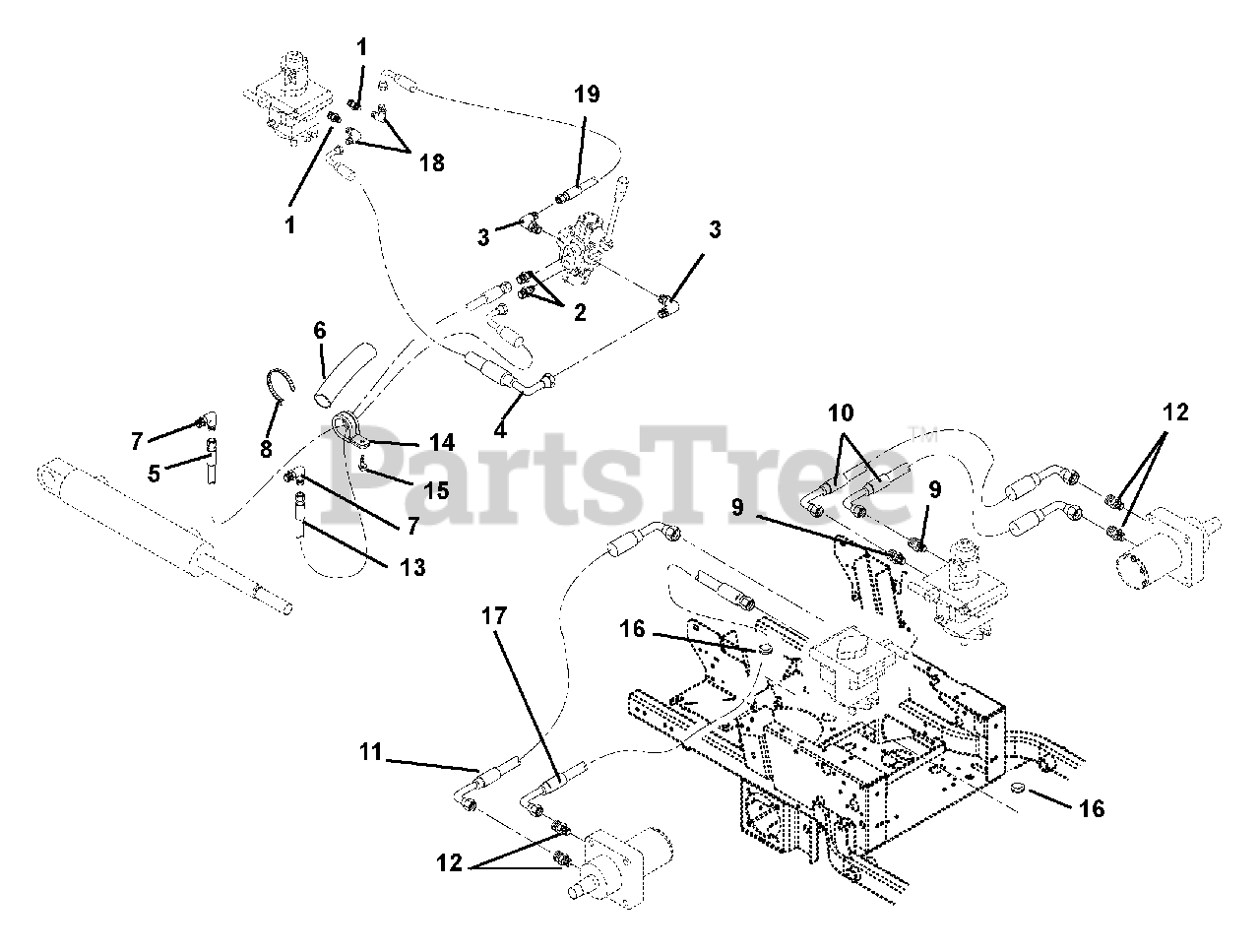

992081 (PM 152Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Deck Lift And Motors To Pump Circuits Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

Deck Lift And Motors To Pump Circuits Parts Diagram

  • Title

1

Gravely 07063700

FITTING, HYD (4 F5OLO)

$

$

Not available

2

Gravely 07063800

FITTING, HYD (4-6 F5OLO)

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 07067500

FTG, HYD ELBOW M4F-M8O

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 00297600

HOSE,HYD .25-19-2K F04F9-F04F9

$

$

Not available

5

Gravely 00275700

HOSE,HYD .25-47-2K FO4F0-FO4F0

$

$

Not available

6

Gravely 09249400

SLEEVE, PROTECTIVE

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 07063900

FITTING, HYD (4 C5OLO)

$15.99

$

Usually ships in 4-12 days

0

8

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 07059900

ADPTR,FACE SEAL 8X8 1/2 O-RING

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 09281800

HOSE,HYD .50-19-2K F08F9-F08F9

$197.99

$

Usually ships in 4-12 days

0

11

Gravely 09281700

HOSE,HYD .50-20-2K F08F0-F08F0

$184.99

$

In Stock, only 1 left!

0

12

Gravely 07062100

FTG, HYD STR M10O-M8F

$15.99

$

In Stock, only 2 left!

0

13

Gravely 09275400

HOSE,HYD.25-42-2K F04F0-F04F4

$140.99

$

Usually ships in 4-12 days

0

14

Gravely 050395

CLAMP, COUSHIONED STEEL REV
(Superseded to 06917900)

$15.99

$

Usually ships in 4-12 days

0

15

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 052579

GROMMET 1.25ID X 1.5OD
(Superseded to 07536800)

$14.99

$

Usually ships in 4-12 days

0

17

Gravely 09269600

HOSE,HYD .50-17-2K F08F0-F08F9

$158.99

$

Usually ships in 4-12 days

0

18

Gravely 07000015

FTG, HYD ELBOW F4F-M4O

$

$

Not available

19

Gravely 00297700

HOSE,HYD .25-15-2K F04F9-F04F0

$

$

Not available
