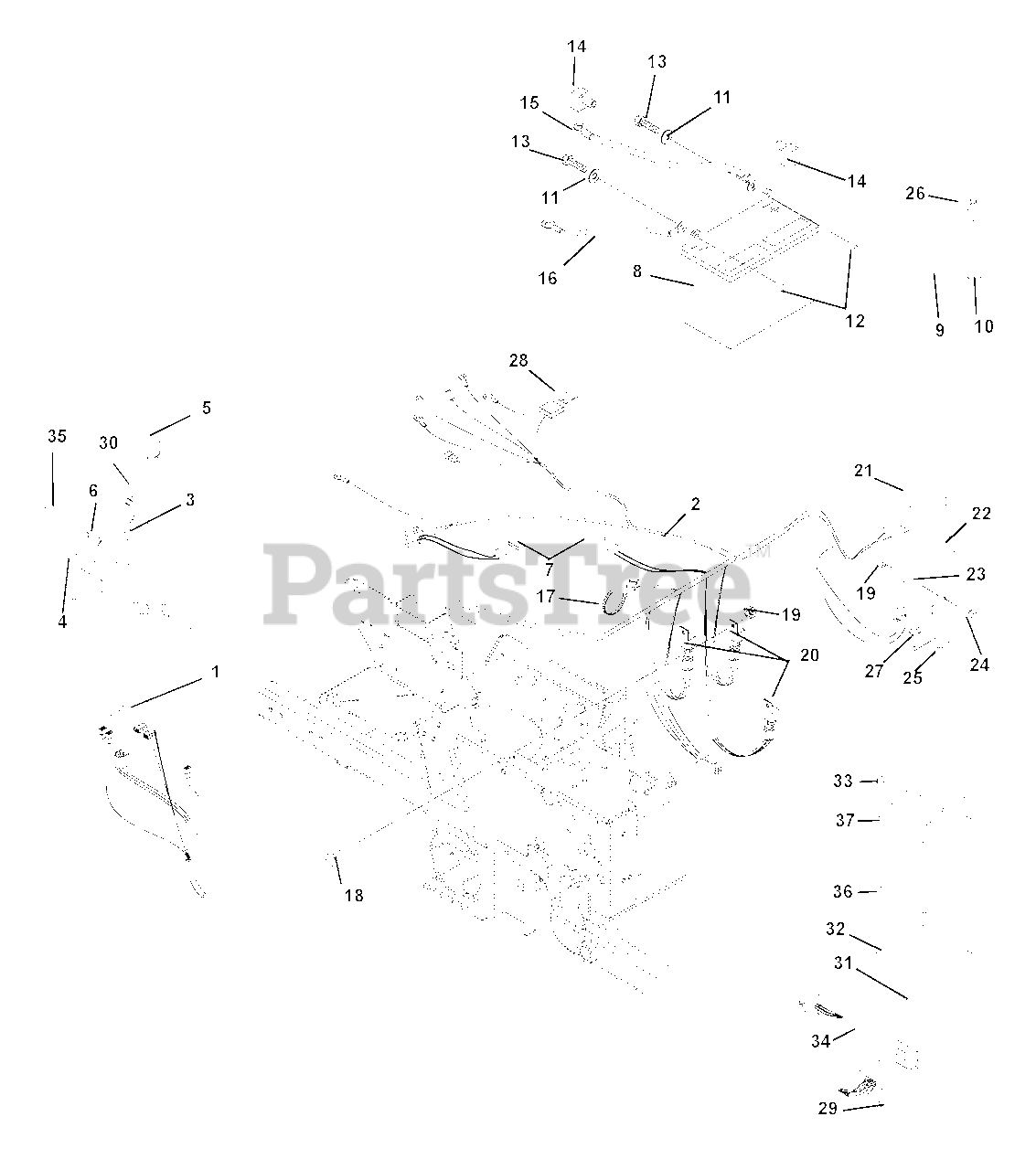

992081 (PM 152Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Electrical System Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$44.99

$

In Stock, Qty 20+

0

2

Gravely 00359400

HARNESS, IZ & MONST. EYE-Q
(Superseded to 00359401)

Note: (EYE-Q)

$395.99

$

Usually ships in 4-12 days

0

3

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

4

Gravely 00539300

PLUG, HOUR METER

Note: (992077, 078, 079, 080, 081, 082, 310, 311)

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

6

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

7

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

8

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

9

Gravely 015258

HOLD DOWN
(Superseded to 03494051)

$11.99

$

In Stock, only 4 left!

0

10

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$5.49

$

In Stock, Qty 20+

0

11

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

14

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 2 left!

0

15

Gravely 03288400

CABLE-POSITIVE BATTERY 26.00"

$21.99

$

Usually ships in 4-12 days

0

16

Gravely 03288100

CABLE-NEGATIVE BATTERY 24.00"

$20.99

$

In Stock, only 2 left!

0

17

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

21

Gravely 045036

SEAT SWITCH
(Superseded to 03490500)

$16.99

$

In Stock, only 1 left!

0

22

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

23

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

25

Gravely 00269351

BRAKE SWITCH MOUNT - BLACK

$

$

Not available

26

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

27

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 00252251

SPACER, ENCLOSURE MTG. (BTM)

Note: (Bottom) (992077, 078, 079, 080, 081, 082, 310, 311)

$26.99

$

Usually ships in 4-12 days

0

30

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

31

Gravely 00251600

ASSY, EYE-Q

Note: (992077, 078, 079, 080, 081, 082, 310, 311)

$

$

Not available

32

Gravely 05600006

GASKET-EYE Q

Note: (992077, 078, 079, 080, 081, 082, 310, 311)

$

$

Not available

33

Gravely 06100002

SCR-MCH 10-24X1.0 SL PAN BLACK

Note: (992077, 078, 079, 080, 081, 082, 310, 311)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 00288900

HARNESS, EYE-Q
(Superseded to 03286100)

Note: (992077, 078, 079, 080, 081, 082, 310, 311)

$

$

Not available

35

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

Note: (992042, 043, 044, 051, 054, 055)

$63.99

$

Usually ships in 4-12 days

0

36

Gravely 00353900

GUARD, ELEMENT

Note: (992077, 078, 079, 080, 081, 082, 310, 311)

$

$

Not available

37

Gravely 00270300

GUARD, VINYL EYE-Q
(Superseded to 00266251)

Note: (992077, 078, 079, 080, 081, 082, 310, 311)

$

$

Not available
