992081 (PM 152Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Frame Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

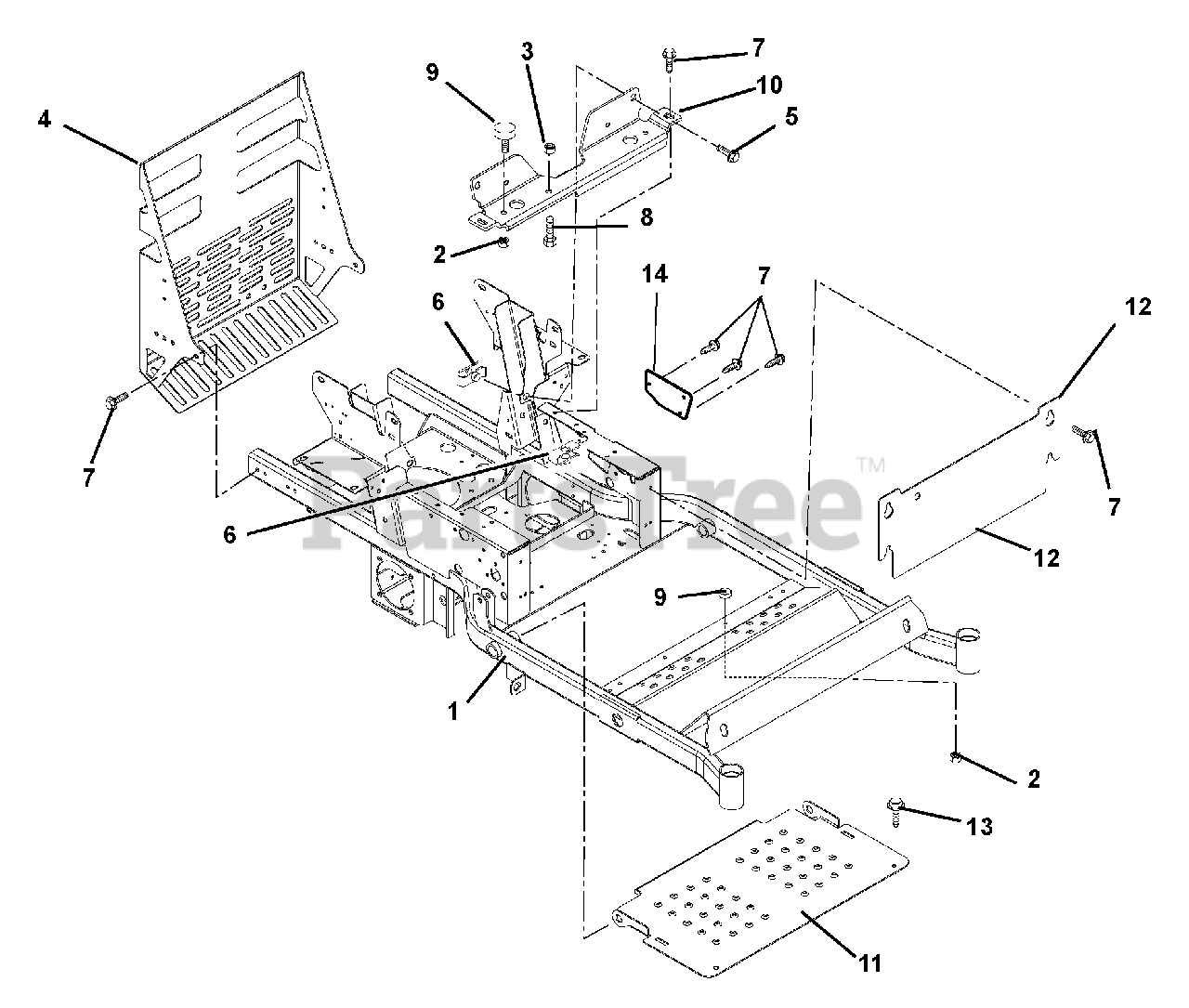

Frame Parts Diagram

  • Title

1

Gravely 00261451

WMT, 44", 48", 52" IZ FRAME

Note: (992042, 043, 044, 045, 054, 064, 077, 078, 079, 081, 092, 093, 094, 096, 310, 311)

$

$

Not available

Gravely 00269151

WMT, 60" IZ FRAME

Note: (992051, 055, 080, 082, 095, 097)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00271751

WMT, BUMPER W/ HEAT SHIELD

$554.99

$

Usually ships in 4-12 days

0

5

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$2.99

$

Usually ships in 4-12 days

0

6

Gravely 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 2 left!

0

7

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (992042, 043, 044, 051, 054, 055, 077, 078, 079, 080, 081, 082, 310, 311)

$1.99

$

In Stock, Qty 20+

0

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

9

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

10

Gravely 09283251

SEAT SUPPORT - BLACK

$111.99

$

Usually ships in 4-12 days

0

11

Gravely 00385600

PANEL, INSPECTION

$

$

Not available

12

Gravely 09297253

PANEL, ACCESS

$56.99

$

Usually ships in 4-12 days

0

13

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (992310, 311)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 09298551

COVER, VALVE

Note: (992064, 083, 092, 093, 094, 095, 096, 097)

$

$

Not available
