992081 (PM 152Z) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kohler (SN: 004000 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kohler

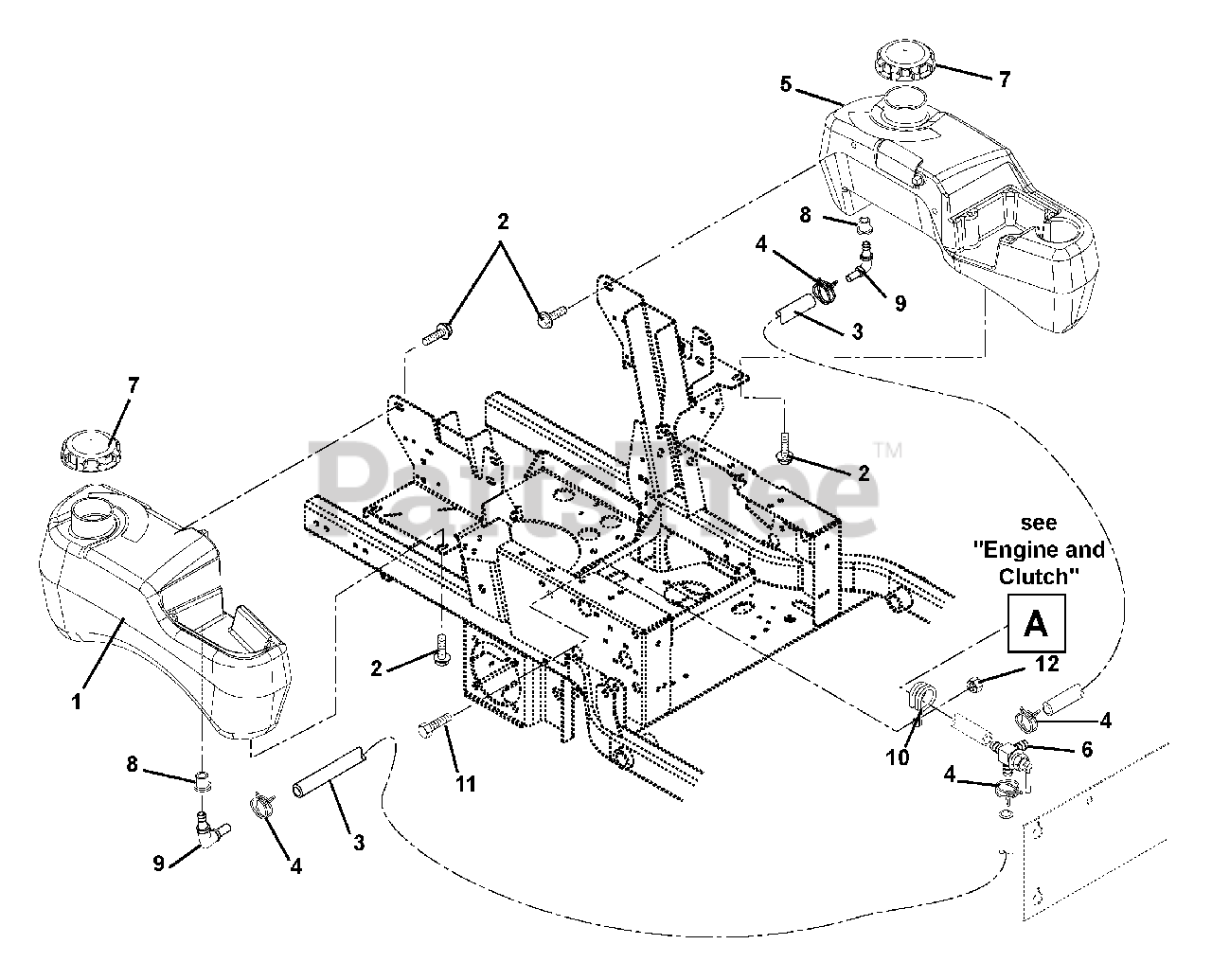

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09281500

TANK, GAS - RH W/O HOSE
(Superseded to 04320900)

$40.99

$

In Stock, Qty 11

0

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

5

Gravely 00191100

TANK, LH FUEL 100 S. W/O HOSE

Note: (EYE-Q) 100 Series

$281.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 18

0

7

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

8

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

Note: (Will not replace orange)

$3.99

$

In Stock, Qty 20+

0

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Will not replace black)

$9.99

$

In Stock, Qty 20+

0

9

Gravely 21539200

FITTING, TANK ELBOW .25 HOSE

$15.99

$

In Stock, Qty 5

0

10

Gravely 06918200

CLAMP, CUSHIONED STEEL

Note: (992054, 055, 081, 082, 096, 097)

$

$

Not available

11

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (992054, 055, 081, 082, 096, 097)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (992054, 055, 081, 082, 096, 097)

$1.49

$

In Stock, Qty 20+

0
