992082 (PM 160Z) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000500 - 003999) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

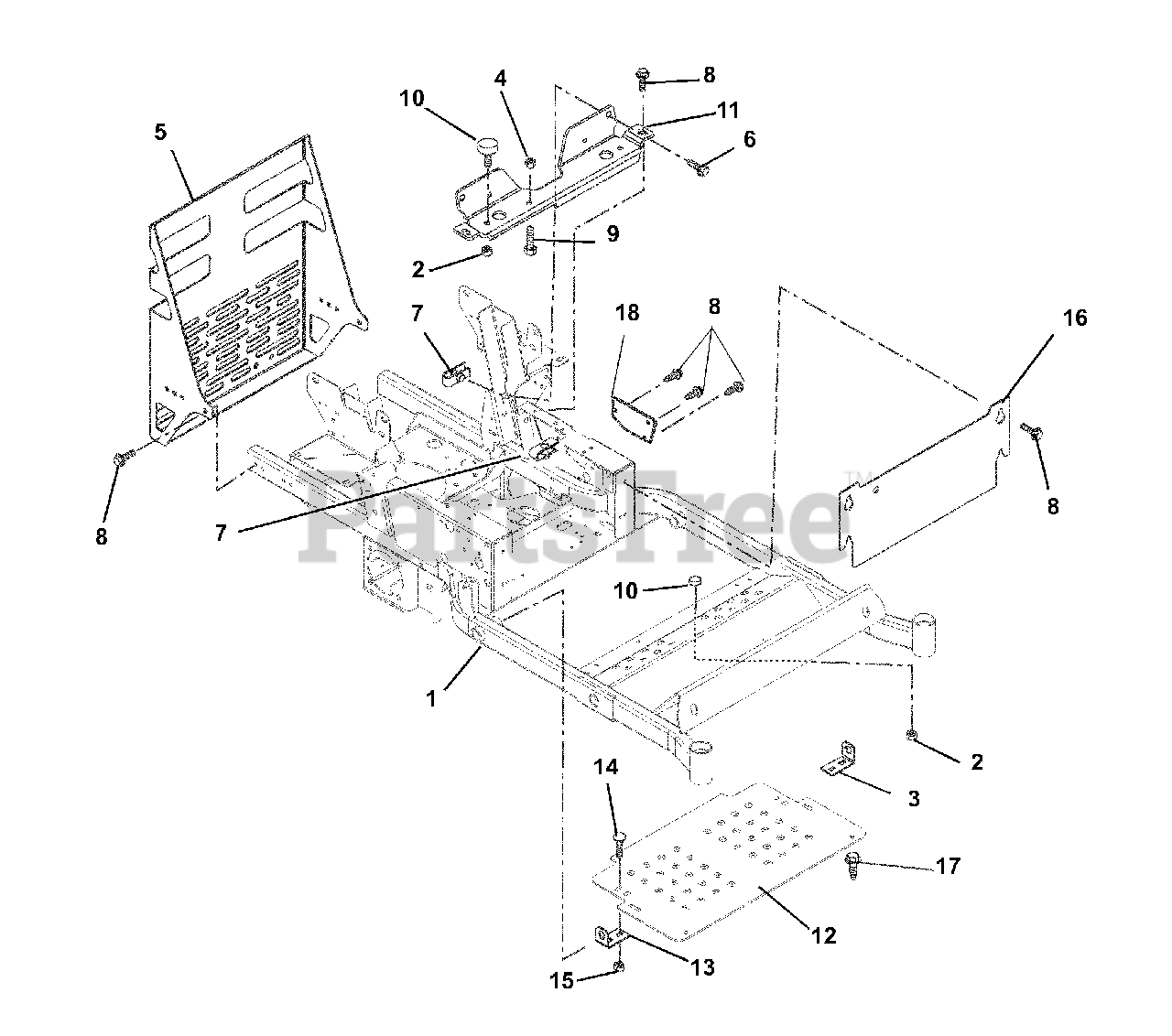

Frame Parts Diagram

  • Title

1

Gravely 00261451

WMT, 44", 48", 52" IZ FRAME

Note: (064, 077, 078, 079, 081, 083, 310, 311)

$

$

Not available

Gravely 00269151

WMT, 60" IZ FRAME

Note: (080, 082)

$905.99

$

Usually ships in 4-12 days

0

2

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

3

Gravely 09267151

HINGE, FOOTBOARD LH

$

$

Not available

4

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09292251

BUMPER/GUARD - BLACK
(Superseded to 00271751)

$579.99

$

Usually ships in 4-12 days

0

6

Gravely 07049900

BLT-SERHFWH .375-16X1.0 YWZC

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 07053300

NUT-RTNR .375-16X.37

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$2.49

$

In Stock, Qty 20+

0

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (064, 083)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

10

Gravely 07533600

BUMPER, RUBBER

$13.99

$

In Stock, only 2 left!

0

11

Gravely 09283251

SEAT SUPPORT - BLACK

$116.99

$

Usually ships in 4-12 days

0

12

Gravely 00253053

PANEL, INSPECTION
(Superseded to 00385653)

$

$

Not available

13

Gravely 09267251

HINGE, FOOTBOARD RH

$13.99

$

Usually ships in 4-12 days

0

14

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 09297253

PANEL, ACCESS

$59.99

$

Usually ships in 4-12 days

0

17

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (310, 311)

$4.99

$

In Stock, Qty 18

0

18

Gravely 09298551

COVER, VALVE

Note: (064, 083)

$

$

Not available
