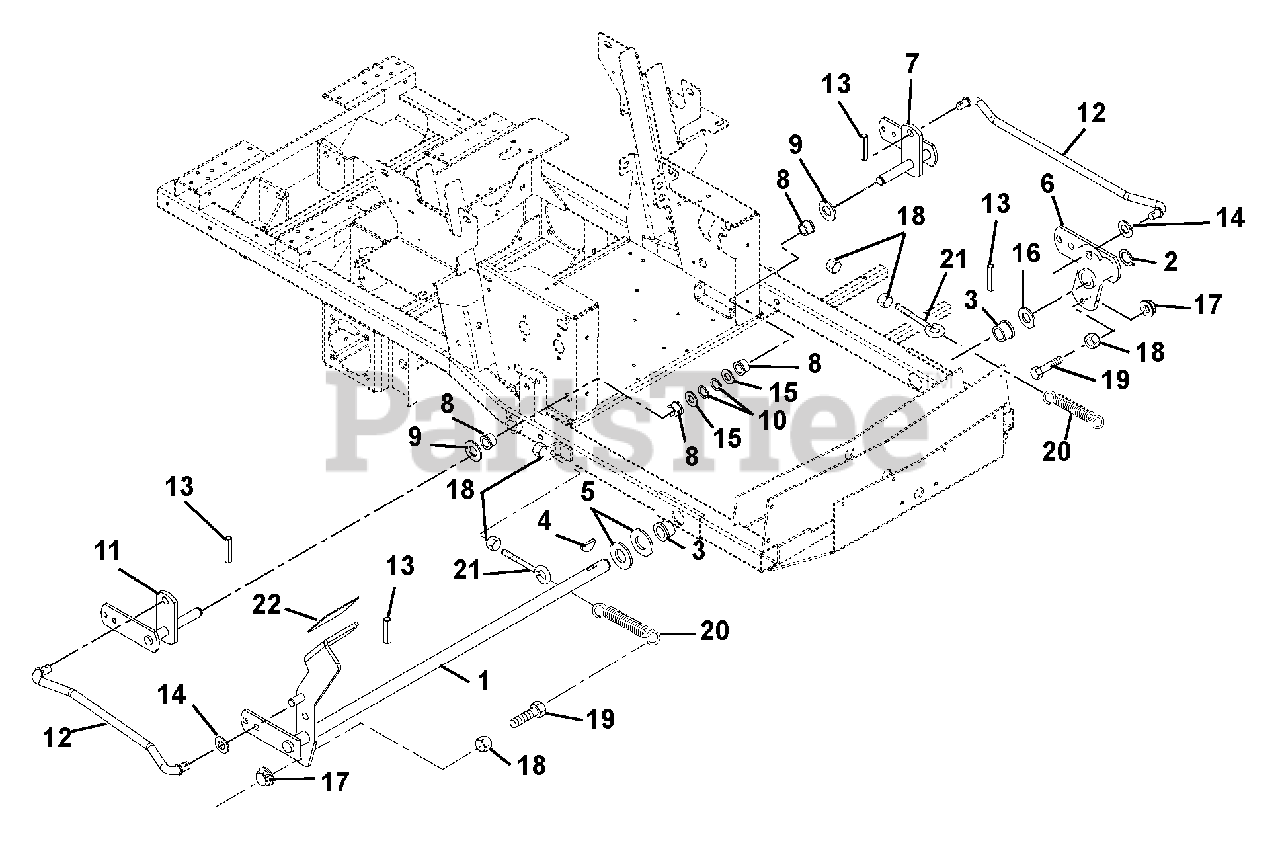

992090 (PM 260Z) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu (SN: 000101 & Above) Deck Lift-Mechanical Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu

Deck Lift-Mechanical Parts Diagram

  • Title

1

Gravely 00387200

WMT, FRONT MWR LIFT PEDAL L/C

$

$

Not available

2

Gravely 050203

RG-RTNG-EXT 1.00X.078
(Superseded to 05707300)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$12.99

$

In Stock, Qty 14

0

4

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$4.99

$

In Stock, Qty 9

0

5

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$5.99

$

In Stock, only 2 left!

0

6

Gravely 09289800

WMT, FRONT MOWER LIFT-LH

$192.99

$

Usually ships in 4-12 days

0

7

Gravely 09290000

WMT, REAR LIFT ARM -LH

$132.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.99

$

In Stock, Qty 20+

0

9

Gravely 036407

WSHR-HDND-THRST .758X1.23X.031
(Superseded to 06413400)

$3.99

$

In Stock, only 1 left!

0

10

Gravely 026300

RG-RTNG-EXT .689X.078
(Superseded to 05714600)

$3.49

$

In Stock, only 2 left!

0

11

Gravely 09289900

WMT, REAR LIFT ARM - RH

$

$

Not available

12

Gravely 00185800

ROD, LIFT ASSIST 19.35"
(Superseded to 04063100)

$85.99

$

Usually ships in 4-12 days

0

13

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$3.49

$

In Stock, only 1 left!

0

15

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.99

$

In Stock, Qty 8

0

17

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 08319000

SG-TENS .162X1.25X8.25 WLD 25

$35.99

$

In Stock, Qty 8

0

21

Gravely 07030000

BLT-EYE .375-16X2.50 YWZC

$9.49

$

In Stock, only 3 left!

0

22

Gravely 00385300

GRIP, FOOT PEDAL (MECH.LIFT)

$

$

Not available
