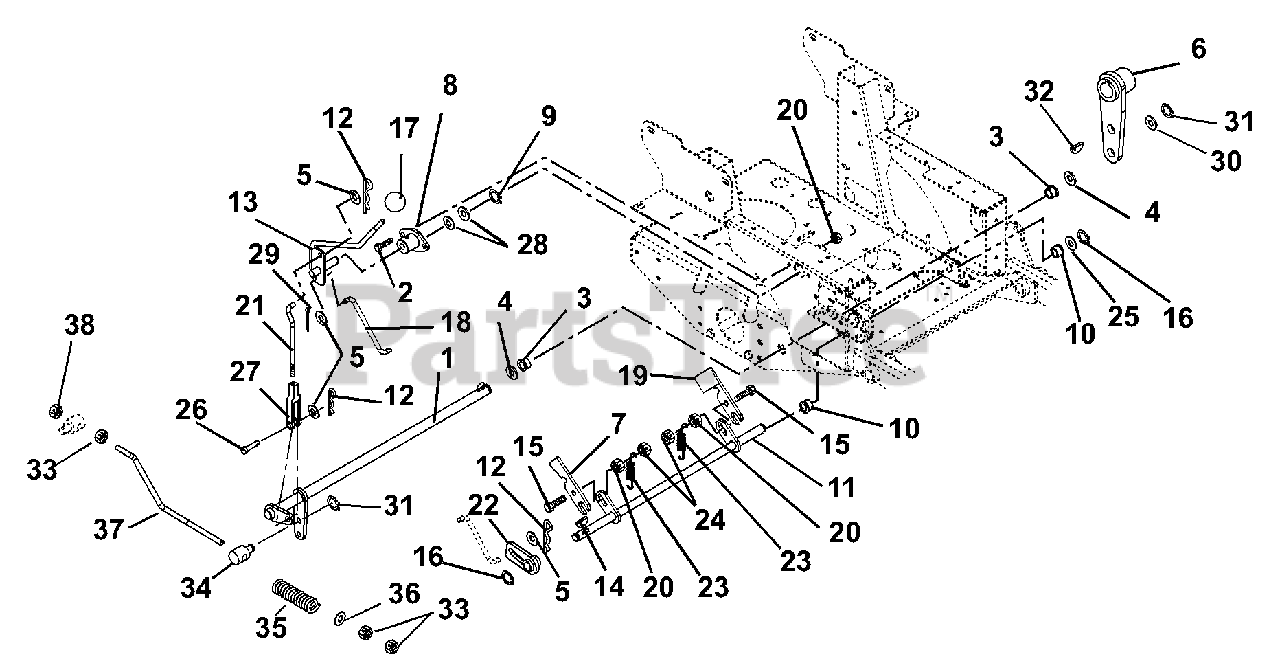

992099 (2148 XL) - Ariens Zoom 48" Zero-Turn Mower, 21hp Kohler (SN: 000101 & Above) Brakes Parts Diagram

Zoom 48" Zero-Turn Mower, 21hp Kohler

Brakes Parts Diagram

  • Title

1

Ariens 00373300

WMT, BRAKE PIVOT

$

$

Not available

2

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

3

Ariens 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 20+

0

4

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 17

0

5

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 00258600

WMT, BRAKE ARM

$79.99

$

Usually ships in 4-12 days

0

7

Ariens 09267700

SLIDE, INTERLOCKING BRAKE

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 05534700

BUSHING, FLANGED
(Superseded to 05534100)

$47.99

$

Usually ships in 4-12 days

0

9

Ariens 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 05503100

BSHG-FLG.500X.750X.750X1.000BR

$10.99

$

In Stock, only 4 left!

0

11

Ariens 09284000

WMT, MECHANICAL BRAKE

$105.99

$

Usually ships in 4-12 days

0

12

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

13

Ariens 00277400

WMT, BRAKE ACTUATING

$87.99

$

Usually ships in 4-12 days

0

14

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

15

Ariens 06219200

@BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

16

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, only 2 left!

0

17

Ariens 07505200

KNOB-STEERING LOCK

$22.99

$

In Stock, only 1 left!

0

18

Ariens 09268400

LINKAGE, BRAKE ACTUATING

$30.99

$

In Stock, only 1 left!

0

19

Ariens 09275900

INTERLOCK, SAFETY SWITCH

$17.99

$

Usually ships in 4-12 days

0

20

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 09299100

LINKAGE, BRAKE COMPACT-Z

$40.99

$

Usually ships in 4-12 days

0

22

Ariens 09268100

WMT, PARKING BRAKE HUB

$194.99

$

Usually ships in 4-12 days

0

23

Ariens 08328700

SG-TENS .061 X .50 X 3.0 WLD 4

$21.99

$

In Stock, only 2 left!

0

24

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06814900

PIN-CLEV .38X1.25 YWZC

$4.99

$

In Stock, only 2 left!

0

27

Ariens 08800400

CLEVIS, .38-24 ADJ.

$11.99

$

Usually ships in 4-12 days

0

28

Ariens 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.99

$

In Stock, only 3 left!

0

29

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

30

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

31

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, Qty 5

0

32

Ariens 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

34

Ariens 09267300

PIN, PIVOT/TRUNNION

$7.49

$

In Stock, only 2 left!

0

35

Ariens 08328500

SG-COMP .142 X .710 X 2.00

$21.99

$

Usually ships in 4-12 days

0

36

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 00370200

LINKAGE, BRAKE CZ

$

$

Not available

38

Ariens 06539400

NUT-LK-CTR .375-24 YWZC
(Superseded to 06500929)

$2.49

$

In Stock, only 4 left!

0
