992100 (ZT 1844 XL) - Gravely 44" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) Belt Guards And Scraper Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

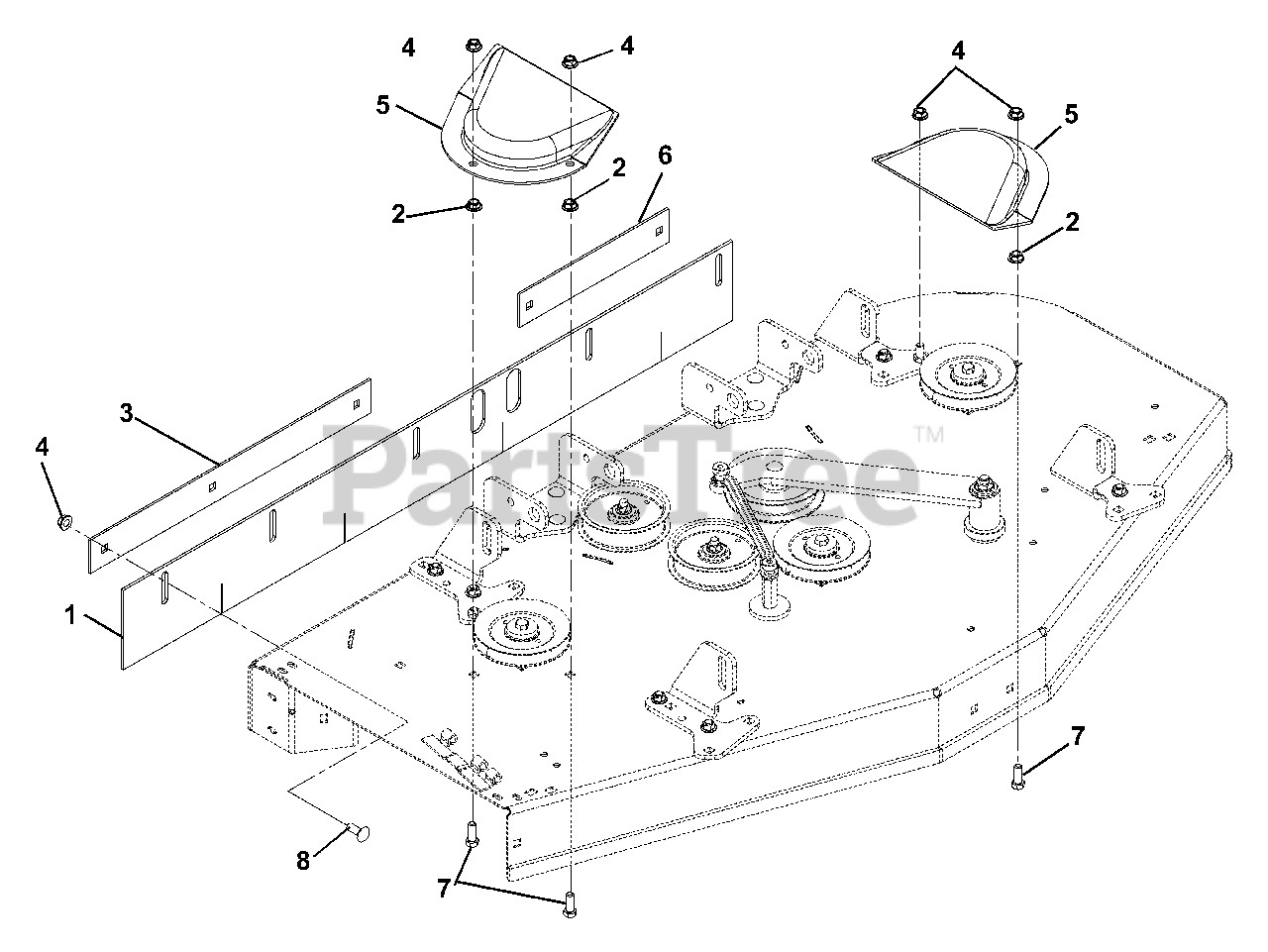

Belt Guards And Scraper Parts Diagram

  • Title

1

Gravely 01577000

Stripper, Rubber 48" (101)

Note: (101)

$83.99

$

Usually ships in 4-12 days

0

1

Gravely 01577500

Stripper, Rubber 44" (100)

Note: (100)

$80.99

$

Usually ships in 4-12 days

0

2

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 01577651

Bar, Retaining Stripper 44" (100)

Note: (100)

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 01577151

Bar, Retaining Stripper 48" (101)

Note: (101)

$

$

Not available

4

Gravely 06545500

Nut, 3/8-16 Flange Nyloc
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 01520100

Cover

$69.99

$

In Stock, only 2 left!

0

6

Gravely 01577451

Bar, LH Retaining Stripper

$18.99

$

In Stock, only 1 left!

0

7

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0
