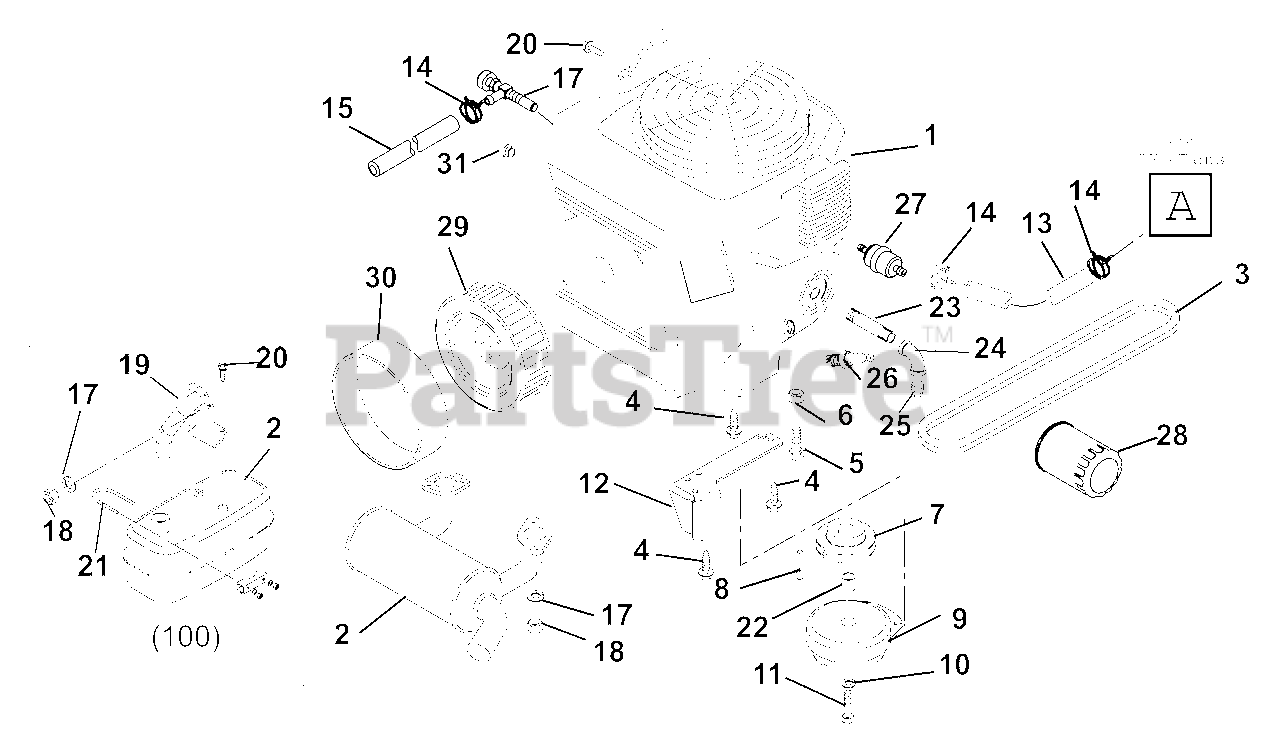

992100 (ZT 1844 XL) - Gravely 44" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

44" Zero-Turn Mower, 18hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200031

18HP KOHLER COURAGE

Note: (100)

$

$

Not available

Gravely 08200032

ENGINE, 23HP KOHLER COMMAND

Note: (101)

$

$

Not available

2

Gravely 09294800

MUFFLER, KOHLER
(Superseded to 00470400)

Note: (101)

$218.99

$

In Stock, only 2 left!

0

Gravely 00255200

MUFFLER, KOHLER COURAGE SINGLE
(Superseded to 51515900)

Note: (100)

$140.99

$

Usually ships in 4-12 days

0

3

Gravely 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0

4

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (101)

$3.99

$

In Stock, Qty 20+

0

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (100)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (101)

$1.99

$

In Stock, Qty 15

0

6

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07328200

PLY-V 4.OO X 1.00

$81.99

$

In Stock, only 2 left!

0

8

Gravely 039160

KEY-SQ .25X.625X.25 SAE 8630
(Superseded to 06602700)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 00385500

CLUTCH, ELEC 1.000 ID 5219-55
(Superseded to 03368000)

$541.99

$

Usually ships in 4-12 days

0

10

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

12

Gravely 00367551

STOP, CLUTCH
(Superseded to 00395651)

$98.99

$

Usually ships in 4-12 days

0

13

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (101)

$1.49

$

In Stock, Qty 20+

0

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

Note: (100)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

15

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

Note: (100)

$40.99

$

In Stock, only 3 left!

0

17

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1) (101)

$1.49

$

In Stock, Qty 20+

0

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1) (100)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1) (101)

$2.49

$

Usually ships in 4-12 days

0

Gravely 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1) (100)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 00368000

WMT, MANIFOLD

Note: (100)

$263.99

$

Usually ships in 4-12 days

0

20

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (100)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 00255400

MUFFLER CLAMP

Note: (100)

$6.99

$

In Stock, only 3 left!

0

22

Gravely 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 13

0

23

Gravely 00428500

NIPPLE, .38 X 2.50 LG BLK PIPE

Note: (101)

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 07023500

ELBOW .375-18 NPTF

Note: (101)

$

$

Not available

25

Gravely 00113800

PIPE PLUG

Note: (101)

$6.49

$

Usually ships in 4-12 days

0

26

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

Note: (101)

$7.49

$

In Stock, Qty 20+

0

Gravely 21541700

PLUG, SPARK

Note: (100)

$7.49

$

In Stock, Qty 20+

0

27

Gravely 21539500

FILTER, FUEL

Note: (101)

$18.99

$

In Stock, Qty 20+

0

Gravely 21541500

FILTER, FUEL

Note: (100)

$13.99

$

In Stock, Qty 20+

0

28

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (101)

$21.99

$

Usually ships in 4-12 days

0

Gravely 21541400

FILTER, ENGINE OIL (COURAGE)
(Superseded to 21397200)

Note: (100)

$21.99

$

Usually ships in 4-12 days

0

29

Gravely 21536400

AIR FILTER

Note: (101)

$20.99

$

In Stock, Qty 20+

0

Gravely 21541600

FILTER, AIR

Note: (100)

$30.99

$

Usually ships in 4-12 days

0

30

Gravely 21536300

ELEMENT, PRE-CLEANER

Note: (101)

$7.49

$

In Stock, Qty 20+

0

31

Gravely 03439100

BUTTON

$

$

Not available
