992101 (ZT 2148 XL) - Gravely 48" Zero-Turn Mower, 21hp Kohler (SN: 000101 & Above) Electrical System Parts Diagram

48" Zero-Turn Mower, 21hp Kohler

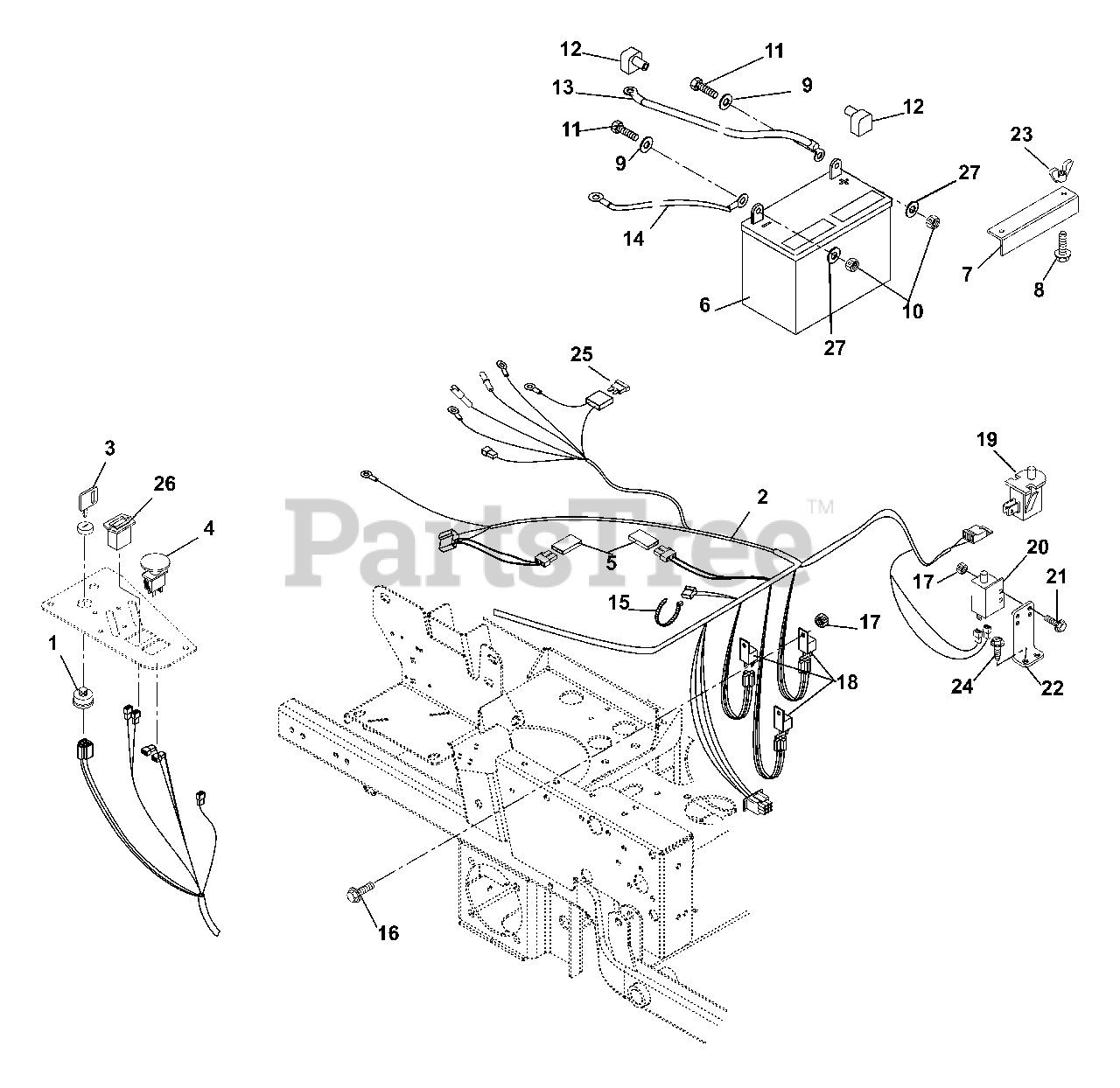

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$44.99

$

In Stock, Qty 20+

0

2

Gravely 00359400

HARNESS, IZ & MONST. EYE-Q
(Superseded to 00359401)

Note: (EYE-Q)

$395.99

$

Usually ships in 4-12 days

0

3

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

4

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

5

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

6

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

7

Gravely 015258

HOLD DOWN
(Superseded to 03494051)

$11.99

$

In Stock, only 3 left!

0

8

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$5.49

$

In Stock, Qty 20+

0

9

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

11

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

12

Gravely 039619

INSULATOR
(Superseded to 07505700)

$10.99

$

In Stock, only 1 left!

0

13

Gravely 09295800

CABLE, POSITIVE BATTERY 26.00
(Superseded to 03288400)

$21.99

$

Usually ships in 4-12 days

0

14

Gravely 042130

CABLE-NEGATIVE BATTERY 24.00"
(Superseded to 03288100)

$20.99

$

In Stock, only 1 left!

0

15

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

16

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

19

Gravely 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 18

0

20

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$9.99

$

In Stock, Qty 18

0

21

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

22

Gravely 09282851

BRAKE SWITCH MOUNT - BLACK

$19.99

$

Usually ships in 4-12 days

0

23

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

In Stock, Qty 20+

0

24

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

26

Gravely 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$63.99

$

Usually ships in 4-12 days

0

27

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0
