992101 (ZT 2148 XL) - Gravely 48" Zero-Turn Mower, 21hp Kohler (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

48" Zero-Turn Mower, 21hp Kohler

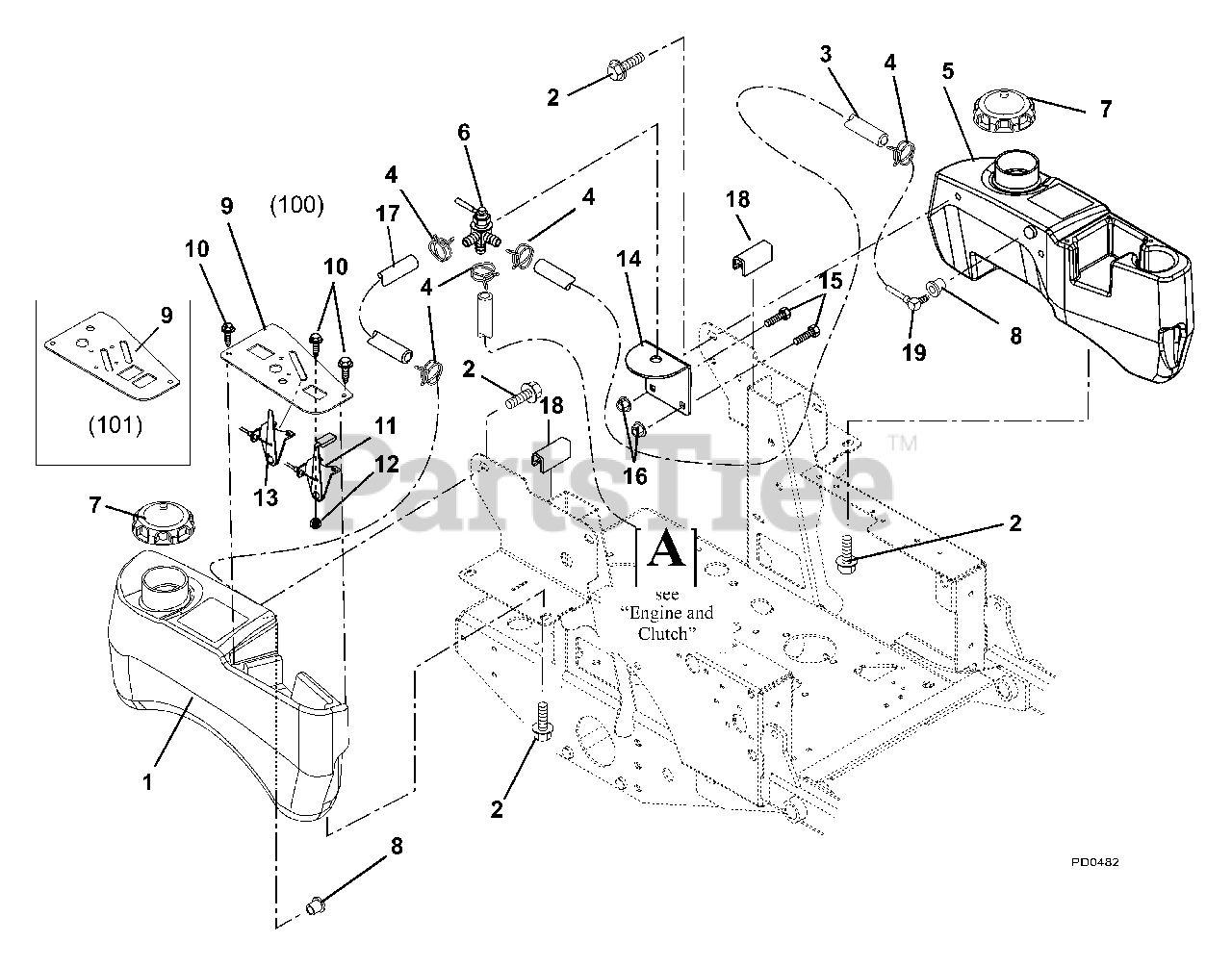

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 09298200

TANK, FUEL RH W/O HOSE

$

$

Not available

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$4.99

$

In Stock, Qty 20+

0

3

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$4.99

$

In Stock, Qty 20+

0

5

Gravely 00262700

TANK, LH FUEL CZ W/O HOSE

Note: (Eye-Q)

$

$

Not available

6

Gravely 09258200

VALVE, FUEL

$51.99

$

In Stock, Qty 9

0

7

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$30.99

$

In Stock, Qty 13

0

8

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

Note: (Black color will not replace orange color)

$4.99

$

In Stock, Qty 20+

0

Gravely 00387300

GROMMET, DAPCO VITON #12240

Note: (Orange color will not replace black color)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 00257351

PANEL, CONTROL

Note: (101)

$28.99

$

Usually ships in 4-12 days

0

Gravely 09299551

PANEL, CONTROL

Note: (100)

$

$

Not available

10

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (101)

$1.49

$

In Stock, Qty 20+

0

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

Note: (100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06900002

CABLE, THROTTLE-CHOKE

Note: (101)

$55.99

$

In Stock, only 4 left!

0

12

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (101)

$1.99

$

In Stock, Qty 20+

0

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

Note: (100)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06949500

CABLE, CHOKE

Note: (101)

$43.99

$

Usually ships in 4-12 days

0

Gravely 06900009

CABLE, CHOKE/THROTTLE

Note: (100)

$

$

Not available

14

Gravely 00361951

BRKT, FUEL VALVE MNTG

$7.99

$

Usually ships in 4-12 days

0

15

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 049767

STRIP, COWL
(Superseded to 00918200)

$6.99

$

Usually ships in 4-12 days

0

19

Gravely 215391200

Fitting, Tank Elbow .31 Hose

$

$

Not available
